Honda CG125 Rear Wheel Hub & Brake Plate Assembly

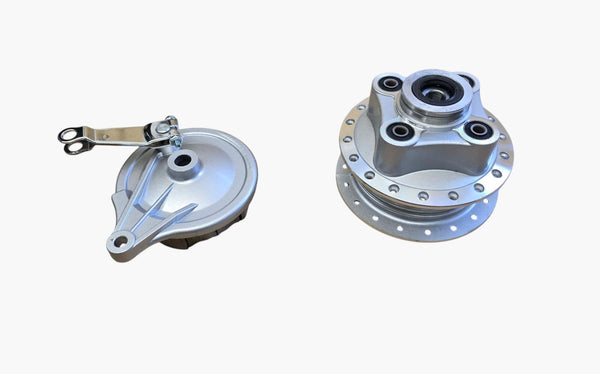

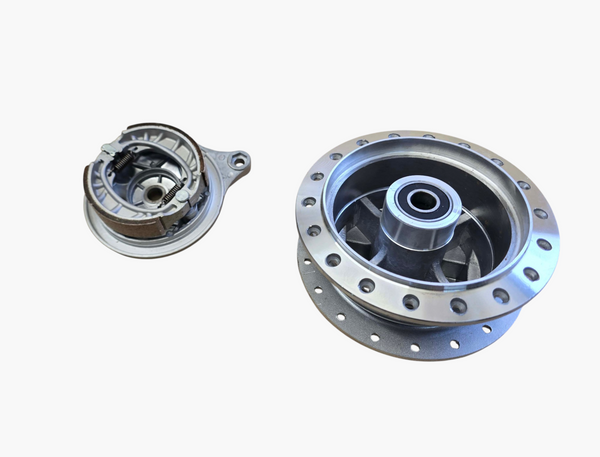

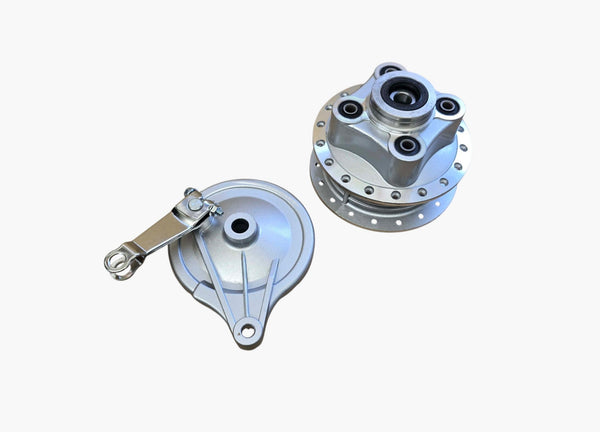

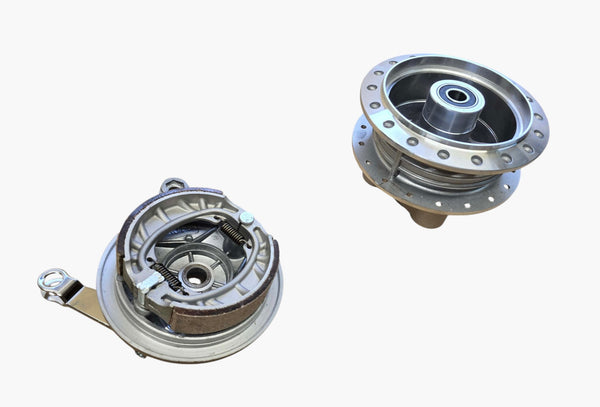

New aftermarket rear wheel hub and drum-brake plate assembly for selected early Honda CG125 applications. The kit includes the rear hub with bearings plus the brake plate with shoes and springs as supplied.
Product Details
- Position: Rear
- Brake type: Drum brake
- Wheel type: Spoked wheel hub application

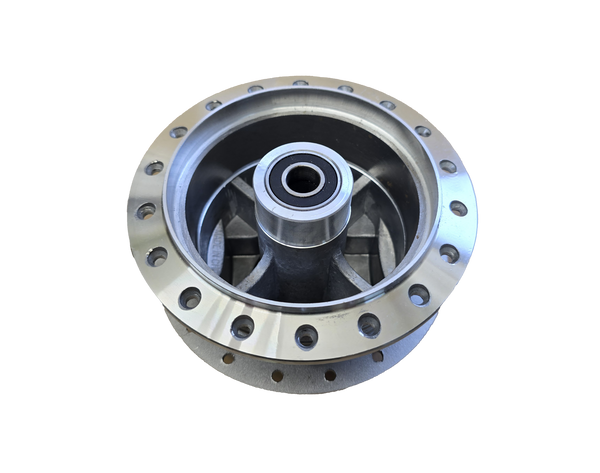

- Hub: Supplied with bearings fitted

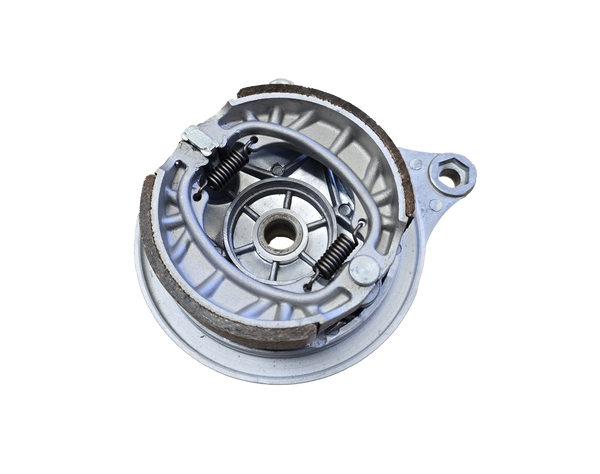

- Brake plate: Supplied with brake shoes and springs as listed with the kit
- Condition: New
- Type: Aftermarket replacement assembly
Vehicle Compatibility
| Make | Model | Application | Position |
|---|---|---|---|
| Honda | CG125 | Selected early spoked-wheel / rear-drum models | Rear |
Honda Application Reference Numbers
- Early CB/CL/ST hub family: 42601-107-020, 42601-107-770, 42610-128-000
- Early CB/CL/ST rear brake panel: 43100-107-020 / 43100-128-670
- CG125 1980 catalogue hub example: 42610-397-000
- CG125 rear brake panel example: 43100-107-020
These are original Honda application-family references for comparison only. The supplied hub and brake plate are unbranded aftermarket replacement parts and are not described as Genuine Honda components.
What's Included
- 1 × rear wheel hub with bearings
- 1 × rear brake plate / brake panel assembly
- Brake shoes and springs fitted to the brake plate as supplied
Important Fitment Information
Do not order by model name alone. Honda changed CG125 rear hubs across markets and model years. A 1980 CG125 catalogue example uses hub 42610-397-000 with rear brake panel 43100-107-020; later models can use different assemblies. Compare the original hub, brake panel, spoke-hole arrangement, bearing/axle setup and brake-arm layout before ordering.
Installation & Safety
Wheel and brake components are safety-critical. Check the hub width, axle/bearing arrangement, spoke-hole pattern, sprocket-side arrangement, brake-panel locating features and brake linkage before installation. Professional wheel building and brake-system inspection are recommended.
Condition
New. Unused aftermarket replacement parts.
