Honda CG125 18 Inch Front Wheel – Drum Brake, 12mm Axle

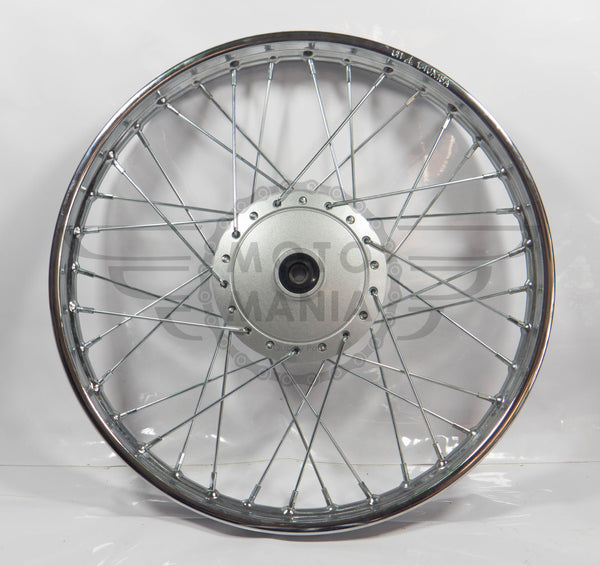

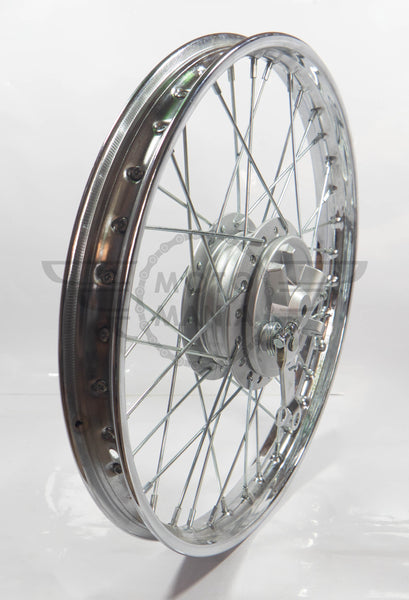

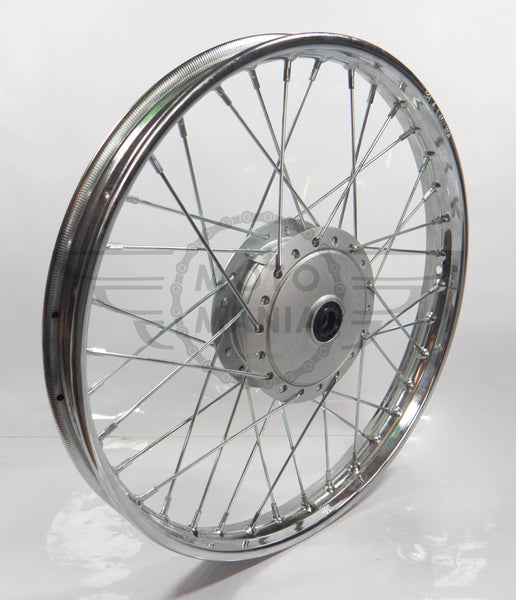

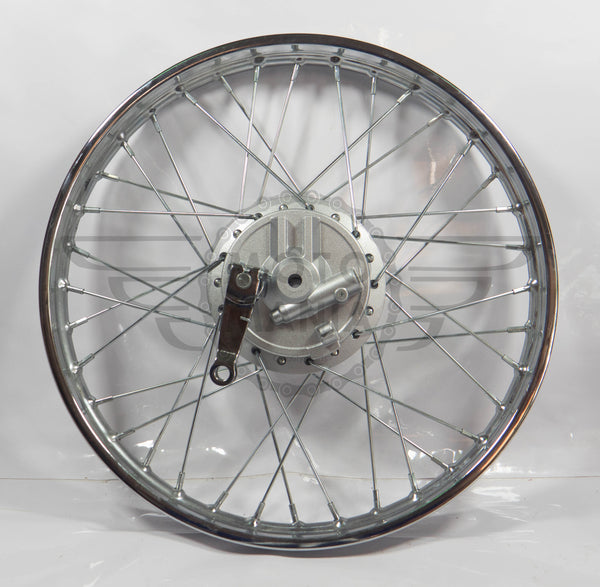

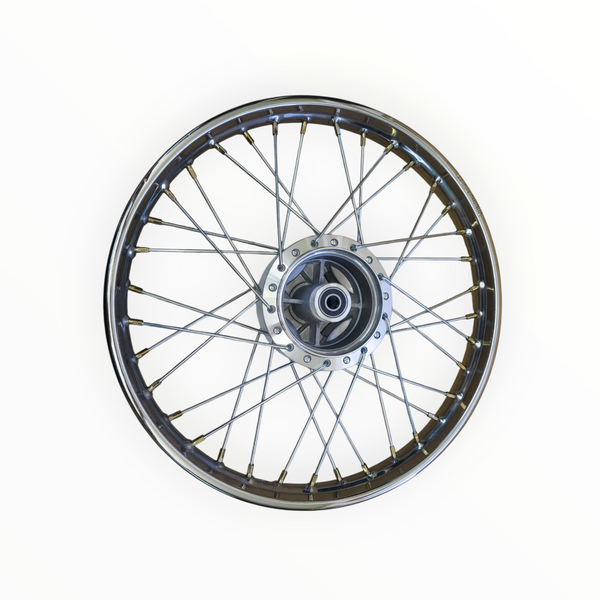

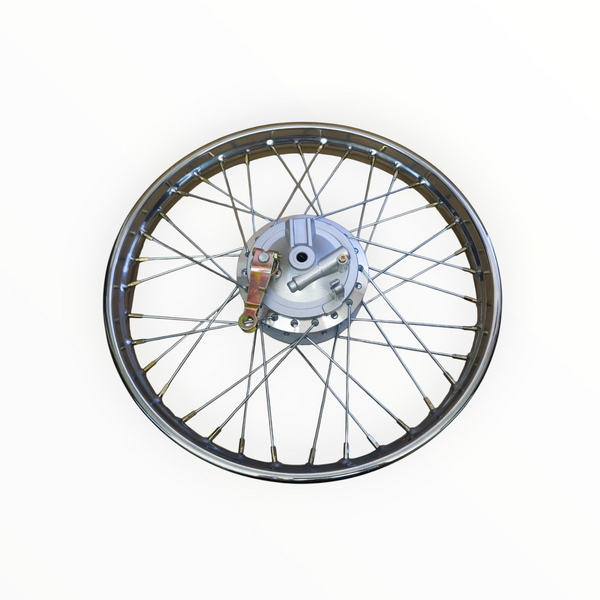

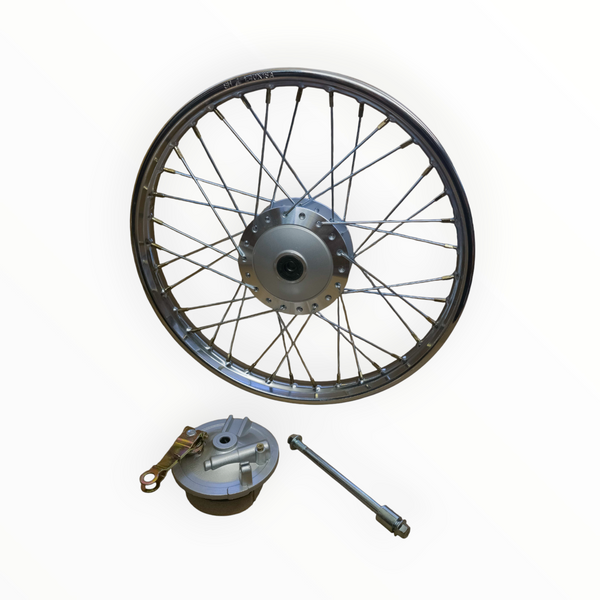

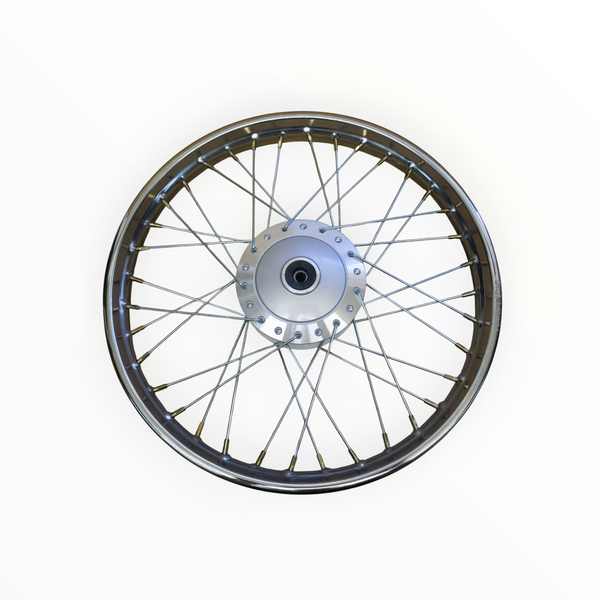

Complete aftermarket spoked front wheel assembly for Honda CG125-style drum-brake front ends. Built with an 18 x 1.40 chrome-plated steel rim, cast aluminium drum hub, galvanised spokes and pre-fitted wheel bearings.
Key specifications
- Rim size: 18 x 1.40 inch
- Front axle bore: 12mm
- Brake type: Drum brake
- Brake drum diameter: approx. 110mm

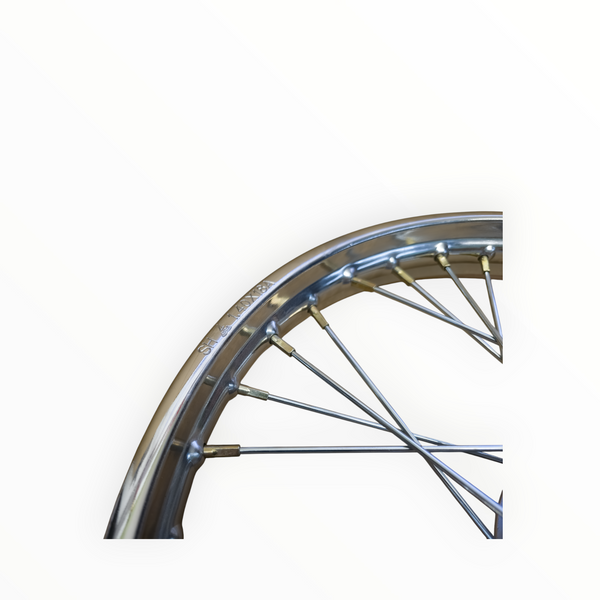

- Rim: Chrome-plated steel, spoked
- Hub: Cast aluminium
- Bearings: 6301 type, 12 x 37 x 12mm
- Typical tyre sizes: 2.50-18 / 2.75-18 – check your original wheel and tyre specification
- Included: Rim, hub, spokes and bearings

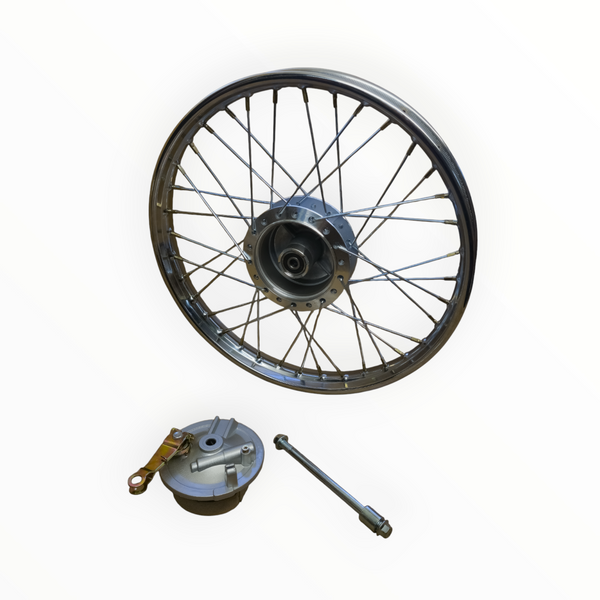

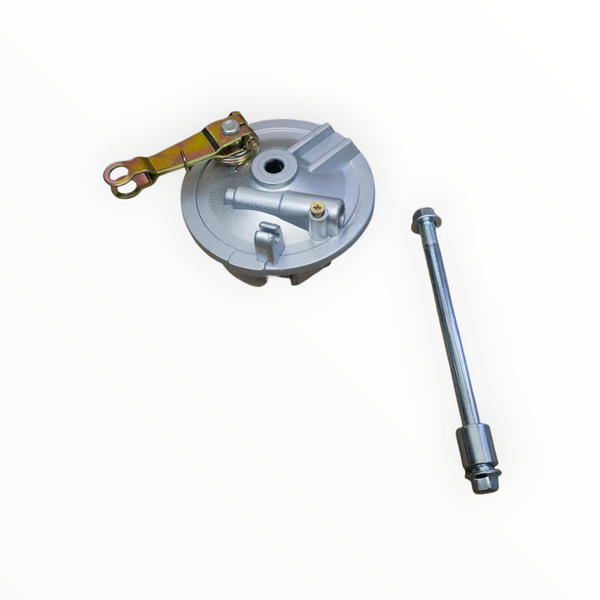

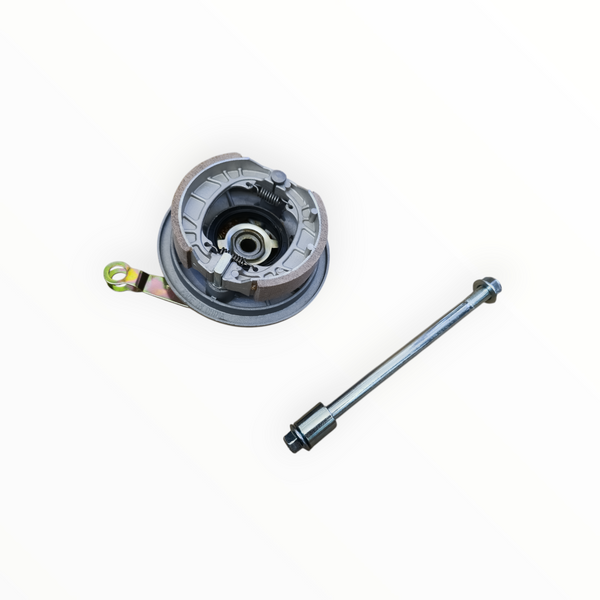

- Not included: Tyre, inner tube, brake plate/shoes, axle, spacers and axle nut unless shown in the product images
Honda fitment guidance
Designed as a replacement for CG125-style spoked front drum-brake wheels using an 18 x 1.40 rim and 12mm axle. Honda parts catalogues show closely related front-wheel layouts on UK/European CG125 models including CG125S (1995), CG125T (1996), CG125W (1998) and later CG125 variants. Honda also used different hubs, rims and disc-brake front ends in some years and markets, so model name alone is not enough to confirm fitment.
Before ordering: compare your existing wheel against the product photos and confirm 18 x 1.40 rim size, 12mm axle, drum-brake hub, brake drum size, hub width/spacer arrangement and speedometer-drive fitment. If your CG125 has a front disc brake, cast wheel or a different axle/hub arrangement, this wheel is not a direct replacement.
Honda OE / OEM cross-reference numbers
Useful Honda catalogue references for identification and comparison include:
- 44650-KCH-305 – front wheel sub-assembly used on CG125S/CG125T catalogue applications
- 44650-KCS-306 / 44650-KCS-316 – related CG125 front wheel sub-assembly references
- 44701-KE2-900 – front wheel rim reference on 1995–1996 CG125 catalogues
- 44701-KCH-781 – front wheel rim reference on later CG125 catalogues including 1998/2001 applications
- 44301-GE2-000 / 44301-GCF-670 – front axle reference / supersession used on related CG125 drum-wheel applications
- 90306-KF0-003 – 12mm flange nut reference
- 90755-229-003 / 90755-229-005 – 21 x 37 x 7 wheel oil seal references
- 96120-6301010 / 96140-630-1010 – 6301-series wheel bearing references
These are Honda OE catalogue cross-references to help identify the correct wheel arrangement. This product is an unbranded aftermarket replacement and is not supplied as a genuine Honda part. Always verify dimensions and your exact model/year before ordering.
