Honda CG125 1979-1999 Engine & Frame Bolt, Nut & Washer Kit
China-sourced replacement fastener set for the Honda CG125 1979-1999 classic / drum-brake style motorcycle / chassis pattern. This is best treated as a classic CG-style engine and frame mounting hardware kit.

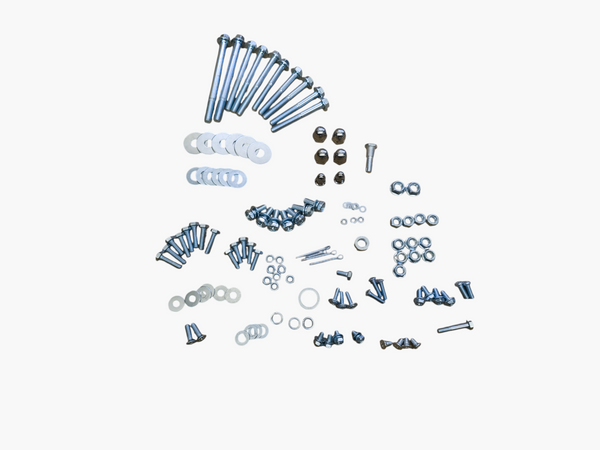

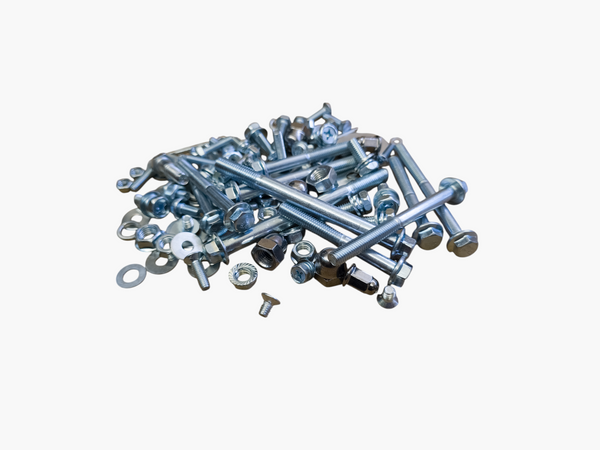

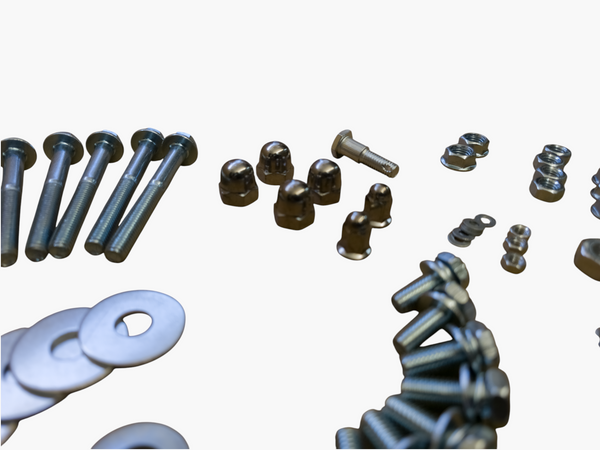

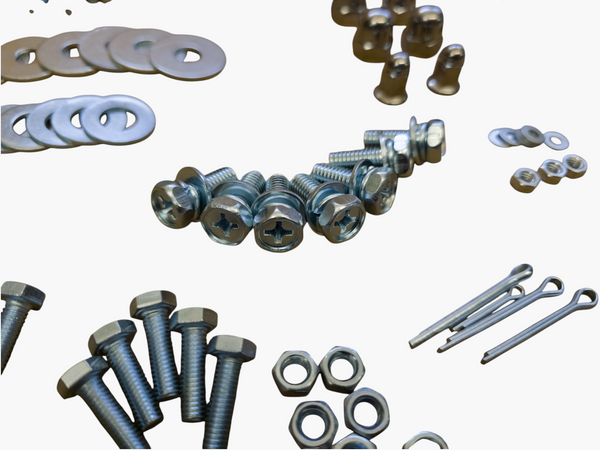

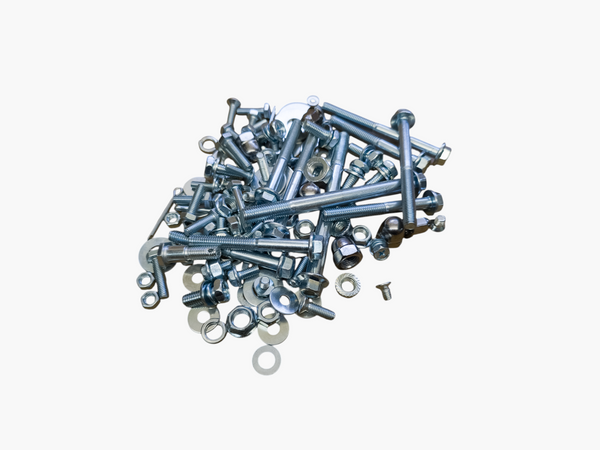

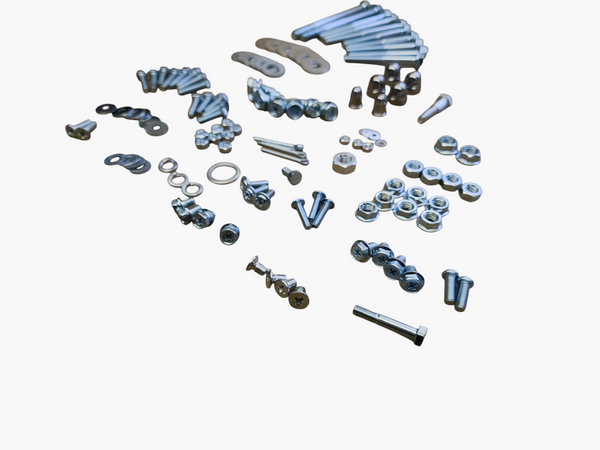

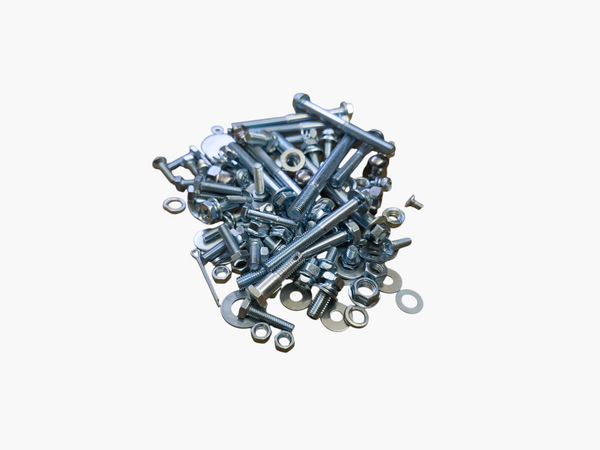

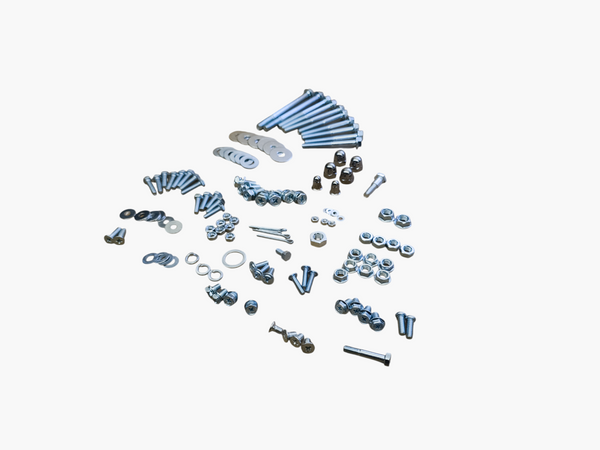

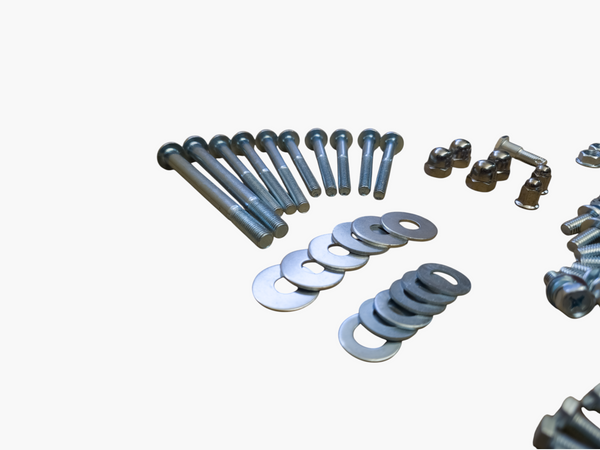

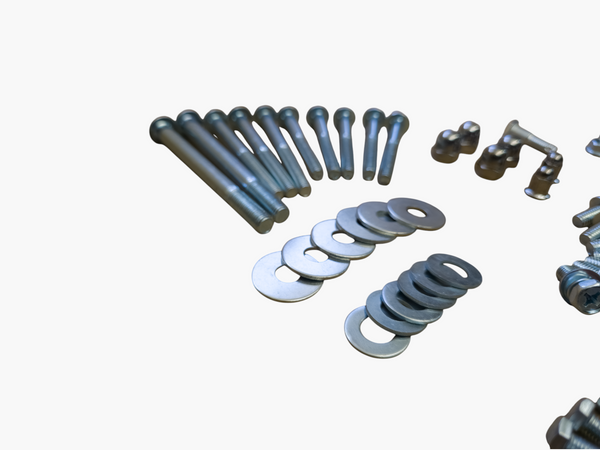

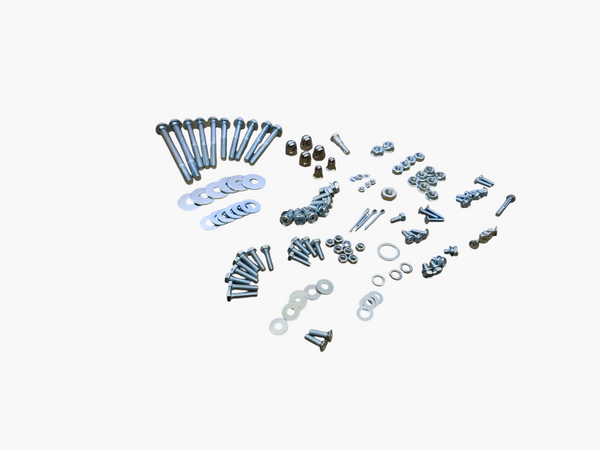

Components Identified From the Photos
- Long engine/frame mounting bolts
- Medium and shorter hex-head / flange-head bolts
- Standard hex nuts
- Flange nuts
- Plain flat washers
- Spring / locking washers
- Mixed chassis / engine mounting hardware supplied as pictured
Fitment
Honda CG125 1979-1999 classic / drum-brake style
Strongest match. The classic CG125 frame catalogue uses the same family of long M8 engine/frame bolts, flange bolts, nuts, plain washers and spring washers represented by this type of kit. A specialist engine-mount kit is also sold for CG125 1979-99.
Honda OE Fastener Cross-References
These genuine Honda numbers are useful for comparing the classic CG125 frame/engine mounting hardware pattern. They are reference numbers only; this product is an unbranded China-sourced aftermarket kit and is not sold as genuine Honda hardware.
- 95301-0811107 – Honda hex bolt, 8 x 111 mm
- 90127-KCH-900 / 90127-KC1-730 – Honda flange bolt, 8 x 65 mm
- 95801-0805507 – Honda flange bolt, 8 x 55 mm
- 95801-0807007 – Honda flange bolt, 8 x 70 mm
- 95801-0808507 – Honda flange bolt, 8 x 85 mm
- 94030-08070 – Honda hex nut, 8 mm
- 94050-08070 – Honda flange nut, 8 mm
- 94101-08700 – Honda plain washer, 8 mm
- 94111-08700 – Honda spring washer, 8 mm
Manufacturer / MPN
- Brand: Unbranded aftermarket
- Country/source type: China aftermarket / CG-pattern replacement
- Moto Mania SKU: 01181-SET
- Verified manufacturer MPN: Not available
- Google Shopping MPN: left blank
Important Compatibility Check
CG-pattern motorcycles have been produced by many factories and brands, especially in China and export markets. Compare the photographs with the original hardware before ordering. Check bolt diameter, thread pitch, overall length, unthreaded shank length, head/flange type, nut style and washer size.
This kit should not be selected simply because a motorcycle is 125cc or 150cc. It is intended for the older/classic CG-style mounting pattern.
