Honda CG125 CB125 Side Stand Kickstand Kit – 240mm
Aftermarket replacement side/kick stand kit for Honda CG125 and seller-listed Honda CB125 applications. The stand is approximately 240 mm long and is supplied with a return spring plus pivot bolt and nut. Because Honda used different stand assemblies across CB125 generations, compare the mounting end and dimensions before ordering.

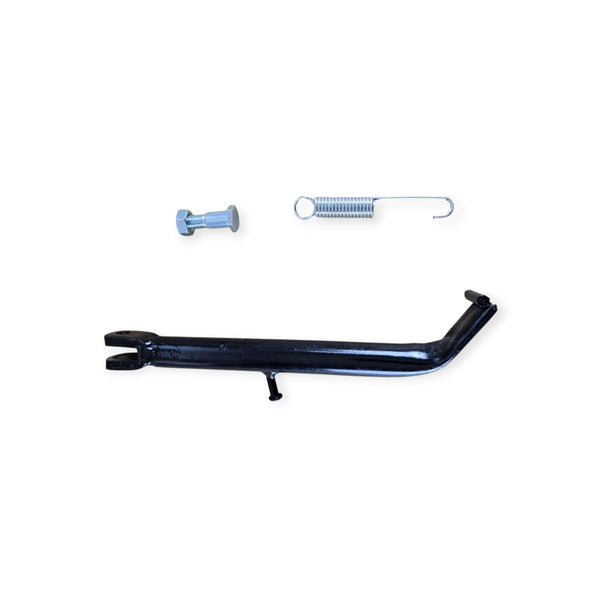

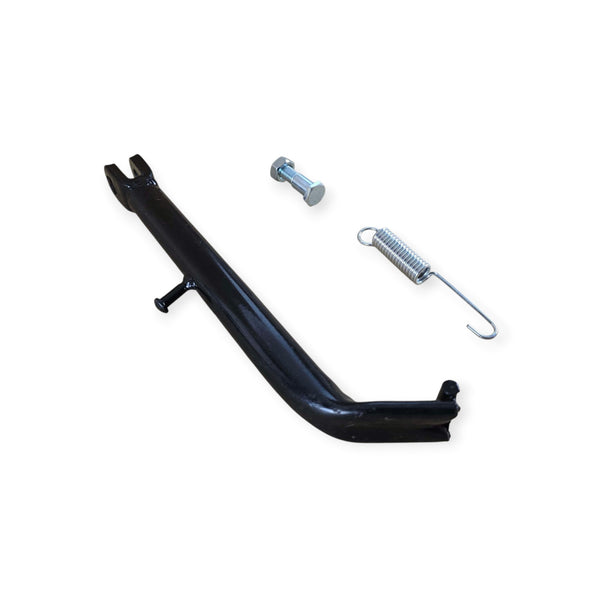

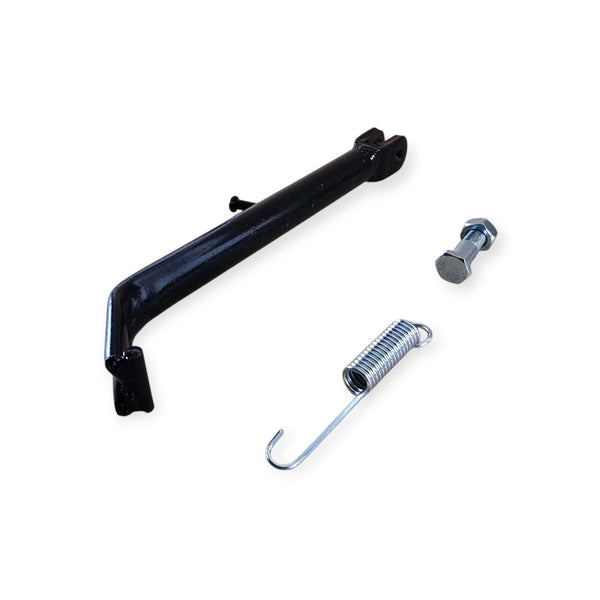

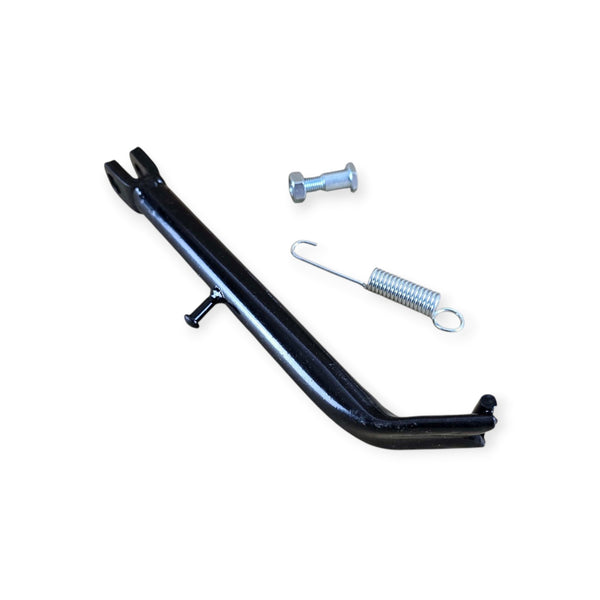

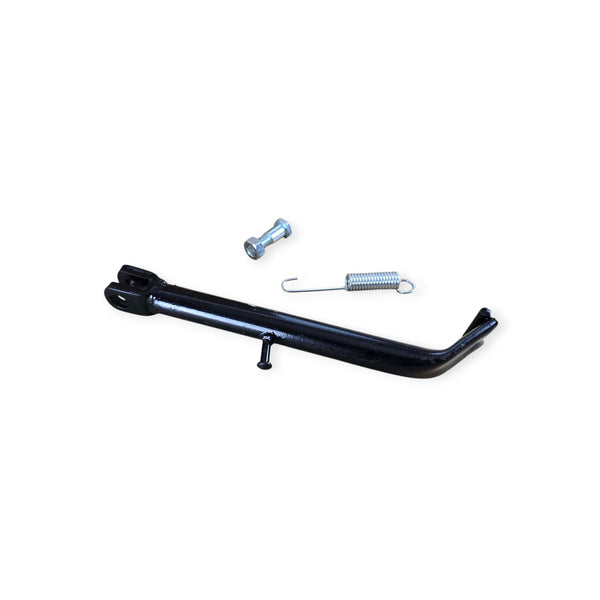

Kit Contents / Components
- Black-finished steel side stand / kickstand bar
- Forked / clevis-style upper pivot mounting end
- Welded spring anchor peg on the stand
- Coiled tension return spring
- M10 shoulder-style pivot bolt
- Hex fixing nut
- Welded ground-contact foot at the lower end of the stand
Product Specifications
- Approximate stand length: 240 mm / 24 cm
- Return spring wire thickness: approximately 3 mm (supplier specification)
- Supplied fasteners use approximately 16 mm / 17 mm hex sizes
- Pivot bolt: M10 thread
- Approximate threaded section: 17 mm
- Approximate shoulder length: 16.5 mm
- Approximate shoulder outside diameter: 12 mm
- Black finish
- Aftermarket replacement product; not supplied as a confirmed Honda Genuine Parts item
Listed Fitment
- Honda CG125 – primary application stated by the aftermarket supplier; year/market variations exist.
- Honda CB125 – seller-listed application. Treat this as classic/earlier CB125 fitment guidance only and check the original stand carefully.
- Do not assume fitment to CB125E, CB125F or CB125R solely from the CB125 name; those later motorcycles use different Honda catalogue stand assemblies.
Honda OE / Part Number Cross-References
These numbers are provided as catalogue and identification references. Honda used different stand hardware by year and market, and they should not be treated as a guarantee that every referenced genuine component is dimensionally identical to this unbranded kit.
- 50530-383-000 – Honda STAND COMP., SIDE; primary OE-style reference associated with CG125 and also cross-referenced to selected classic CB125 models.
- 50530-383-000ZA – black-finish CG125 side-stand assembly reference on selected Honda catalogues.
- 50530-107-700B – early CB125S Honda side-stand bar reference; useful for identification but not proof that every CB125 version is interchangeable.
- 90108-223-000 / 90107-GN1-010 – stand pivot screw/bolt references used on different CG125/CB125 production versions.
- 95014-72102 – side-stand spring reference appearing on selected CG125 and classic CB125 catalogues.
Aftermarket manufacturer MPN: no reliable manufacturer-assigned MPN was found for this unbranded kit. Seller SKU 00245-FPP is an internal stock reference, so the Google Shopping MPN field has intentionally been left blank.
Compatibility Check Before Ordering
- Measure your original stand from the pivot area to the foot and compare it with the approximate 240 mm length.
- Compare the fork/clevis width, spring anchor position and pivot-bolt shoulder with the listing photographs.
- Check that your motorcycle uses an M10 pivot arrangement compatible with the supplied shoulder bolt.
- Do not order only by model name: Honda changed stand assemblies between years, production countries and CB125 generations.
Installation Note
The return spring is under tension. Secure the motorcycle safely before removing or fitting the stand and use suitable tools. If you are unsure about installation or compatibility, use a competent motorcycle technician.
