Honda CG125 12V Starter Motor 9T 50mm
Aftermarket 12V electric starter motor offered for Honda CG125
Starter Specification
- Voltage: 12V
- Starter drive: 9-tooth splined output shaft
- Mounting-hole centres: approximately 50 mm
- Overall length: approximately 145 mm
- Starter pattern: CG125 / 156FMI / 157FMI style
- Condition: New aftermarket replacement

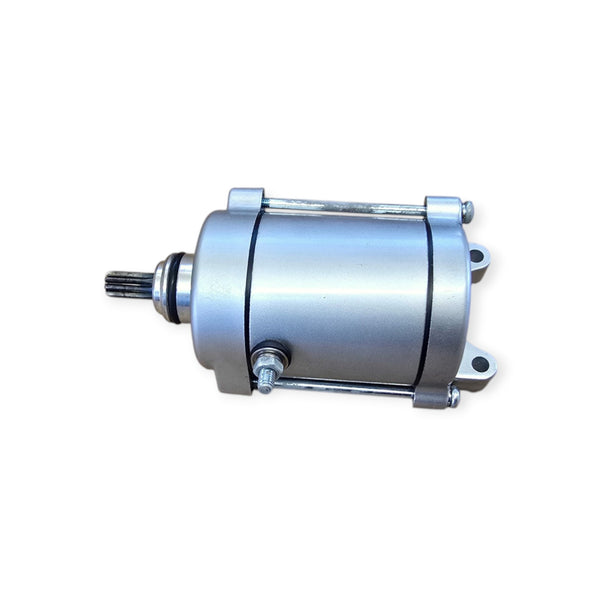

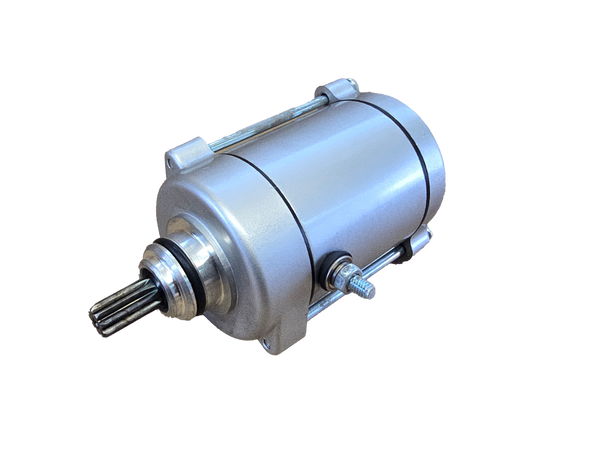

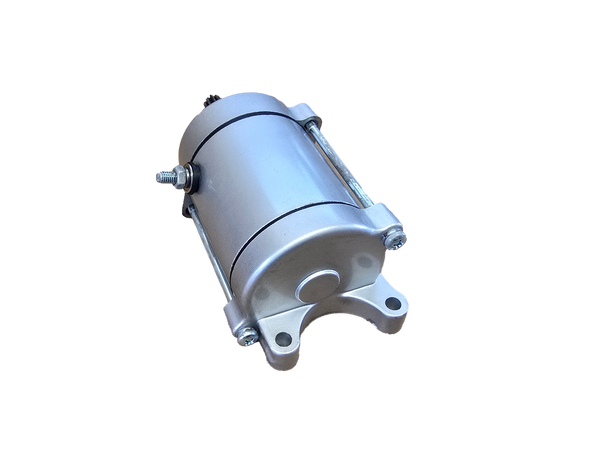

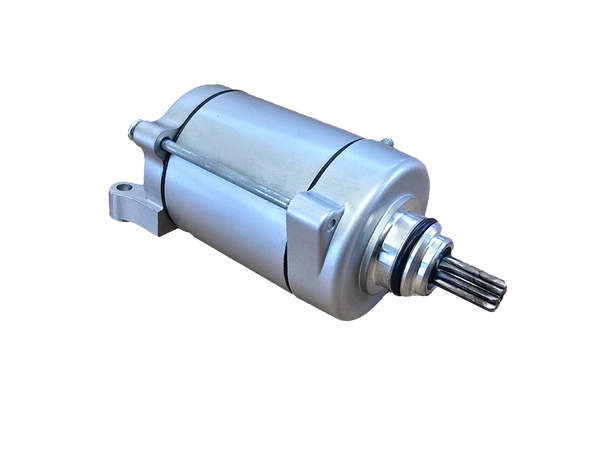

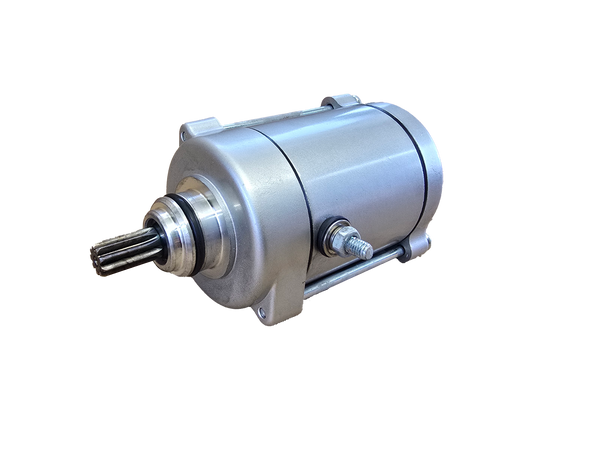

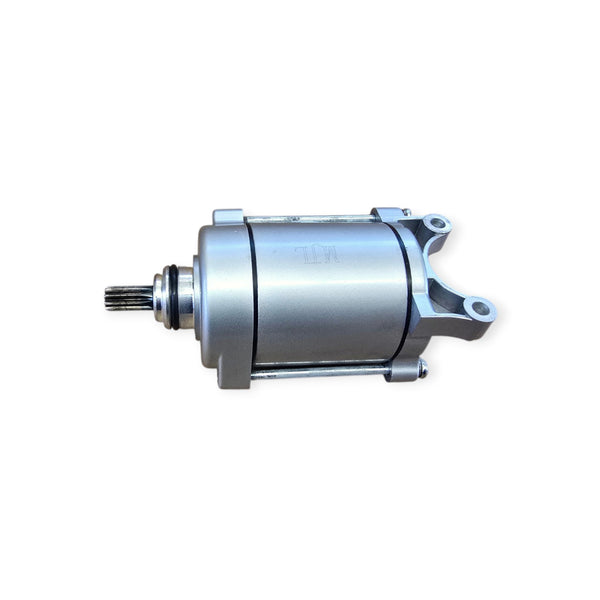

Components Identified From the Product Photos
- Cylindrical steel starter-motor body with silver protective finish
- Cast-alloy drive and end housings
- 9-tooth steel splined starter output shaft
- Machined drive nose with black sealing O-ring
- Twin mounting lugs / bolt holes
- Insulated threaded electrical power terminal with nut and washer hardware
- External through-bolts / tie rods securing the motor housings
Honda CG125 OE Comparison
- Genuine Honda CG125ES starter reference: 31200-KBB-901
- Replacement data for the Honda 31200-KBB-901 pattern: 12V, 9 teeth, approximately 52 mm mounting centres and 163 mm overall length
- Supplied Chinese-pattern starter: approximately 50 mm mounting centres and 145 mm overall length
These dimensions are different. Do not order this item solely because the motorcycle badge says Honda CG125. Measure the starter already fitted to the motorcycle first.
Aftermarket Cross-References
- CPL / China Parts Ltd: EL009006
- China Parts catalogue reference: 7112210032318
- Wemoto aftermarket product code: AB4156
The supplied item is unbranded aftermarket. The Honda, CPL, China Parts and Wemoto numbers above are provided for identification and comparison only and are not the manufacturer part number printed on the supplied starter.
When This Listing Is Suitable
This listing is appropriate for a Honda CG125 only if the starter already fitted to the bike has the same 9-tooth drive, approximately 50 mm mounting-hole centres, approximately 145 mm overall length, matching mounting lugs and matching electrical-terminal position. This may occur where a CG125 has been fitted with a Chinese 156FMI/157FMI-type replacement engine or compatible starter arrangement.
Compatibility Check Before Ordering
- Count the starter output teeth — this item uses 9 teeth
- Measure the mounting-hole centres — approximately 50 mm
- Measure overall starter length — approximately 145 mm
- Compare the cast mounting-lug shape with the photographs
- Compare the electrical-terminal position and thread type
- If your existing starter is marked Honda 31200-KBB-901 or measures approximately 52 mm / 163 mm, do not assume this item will fit
What Is Included
One complete starter motor assembly as shown in the product photographs. Starter relay/solenoid, wiring, reduction gears, starter clutch and mounting bolts are not included unless shown separately.
