Honda CB125F GLR125 2015-2020 Complete Clutch Basket & Plate Kit
Complete aftermarket clutch assembly kit for Honda CB125F / GLR125 2015-2020. This kit combines the clutch outer/basket with the inner clutch pack and spring-loaded pressure assembly, making it suitable for a fuller clutch rebuild where the original basket, hub, plates or spring assembly are worn or damaged.

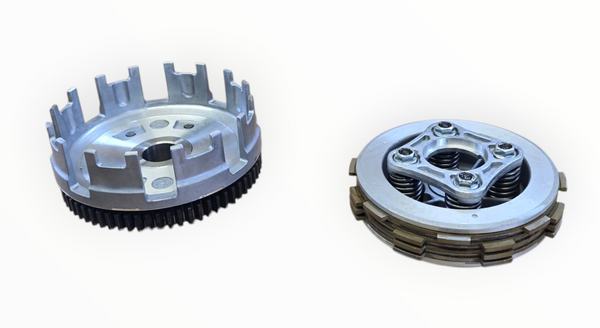

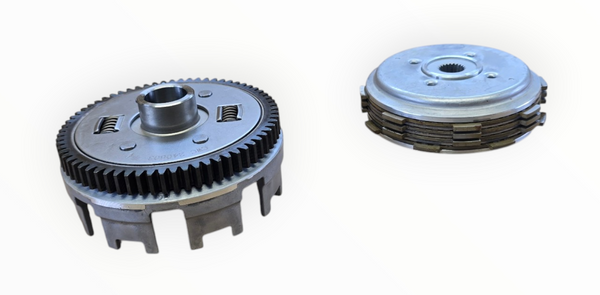

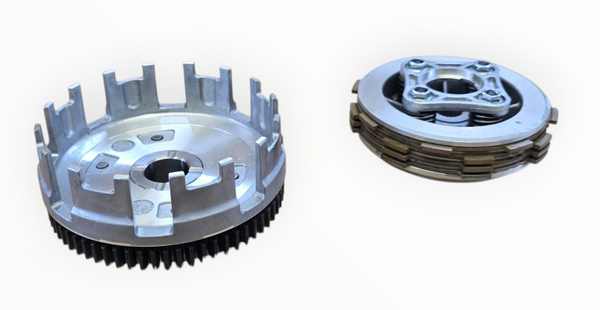

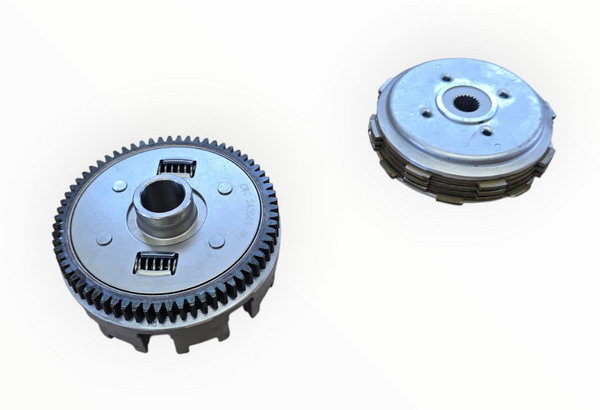

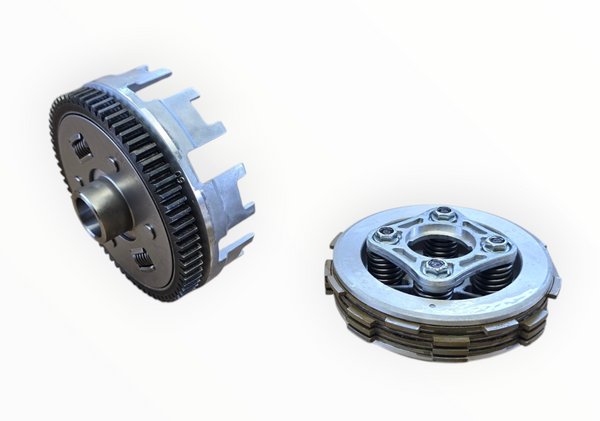

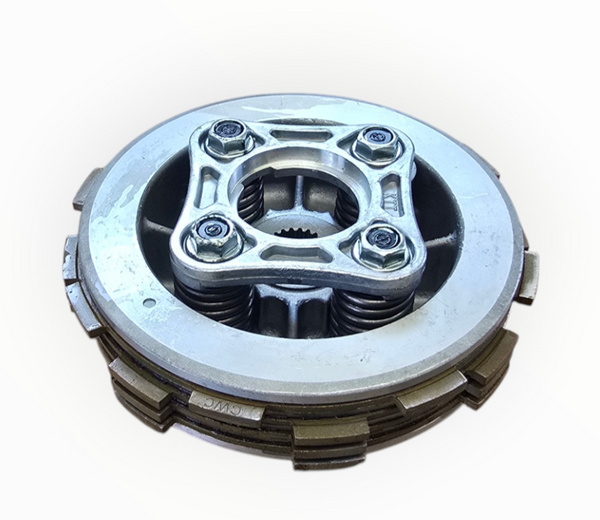

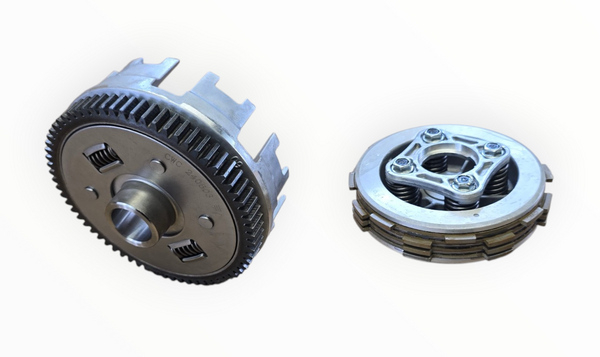

Components Identified From the Product Photos
- Clutch outer / clutch basket with integral primary drive gear
- Clutch centre / splined inner hub
- Multiple friction clutch plates / fibre discs
- Steel separator clutch plates
- Clutch pressure plate
- Clutch lifter / retaining plate
- Four coil clutch springs
- Four spring / pressure-plate retaining bolts
- Machined centre spline and clutch-pack contact surfaces
Honda OE Component References
- Clutch outer / basket: 22100-KPN-A31
- Clutch outer guide: 22115-KSP-910
- Clutch centre / inner hub: 22120-KPN-A31
- Clutch friction disc: 22201-K09-C01 (4 required by Honda)
- Clutch steel plate: 22321-KPN-A31 (3 required by Honda)
- Clutch pressure plate: 22355-KPN-A31
- Clutch lifter plate: 22361-KPN-A31
- Clutch spring: 22401-KPN-A31 (4 required by Honda)
- Spring/pressure plate flange bolt 6x25: 90008-KPN-A31 (4 required by Honda)
The supplied kit is unbranded aftermarket, not a genuine Honda clutch assembly. Honda numbers are provided as component-level identification and comparison references. Honda does not catalogue the pictured aftermarket bundle under one single OE number.
Aftermarket & Supplier Part References
- Wemoto complete clutch assembly: AH7833
- Wemoto clutch basket: AH7817 — sold as a replacement for Honda 22100-KPN-A31
- Aftermarket clutch basket manufacturer part number: 01944-ENG-AFT
- Original seller / bundle SKU: 01943-ENG+01944-ENG
These aftermarket numbers are supplied as cross-references only and do not mean the supplied bundle was manufactured by Wemoto or Honda.
Fitment
- Honda CB125F
- Honda GLR125
- Listed application: 2015-2020 generation
CB125F and GLR125 are names used for the same Honda model family in this application, so a separate duplicate listing is not required.
Compatibility Check Before Ordering
- Confirm the motorcycle is the 2015-2020 CB125F / GLR125 generation
- Compare the clutch outer gear, basket shape and centre spline with the photographs
- Compare the clutch centre / inner-hub profile and pressure-plate bolt layout
- Check the original clutch uses four friction discs, three steel plates and four coil springs as listed in the Honda clutch fiche
- Where possible, compare the original clutch basket with Honda reference 22100-KPN-A31
- Do not confuse this model with the earlier CBF125, which uses a different clutch basket/reference family
Installation Notes
Clutch replacement requires removal of the engine side cover and correct reassembly of the clutch stack and retaining hardware. Soak new friction plates in the correct motorcycle engine oil before installation where required, confirm the plate order, inspect the clutch lifter mechanism and outer-guide surfaces, and tighten the clutch fasteners to the Honda workshop specification. Check clutch-cable free play after assembly before riding.
What Is Included
One complete clutch basket and inner clutch-pack assembly with the components shown in the product photographs. Engine cover gasket, clutch cable, clutch lifter rod, main clutch nut, washers, clutch outer guide/bearing and engine oil are not included unless visibly supplied in the photo set.
