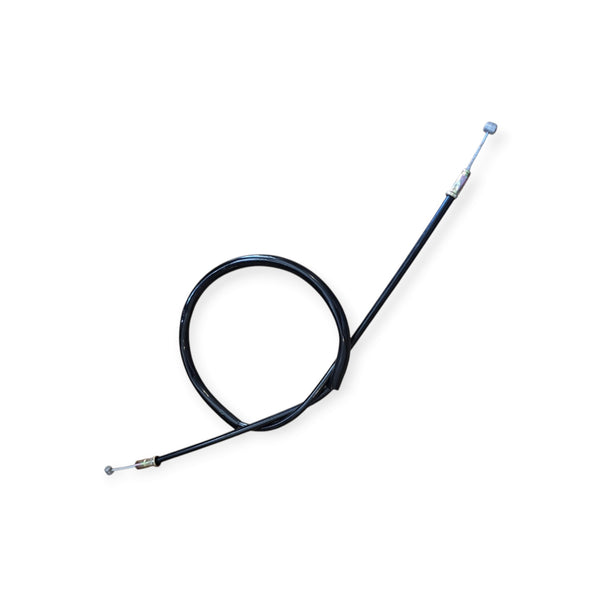

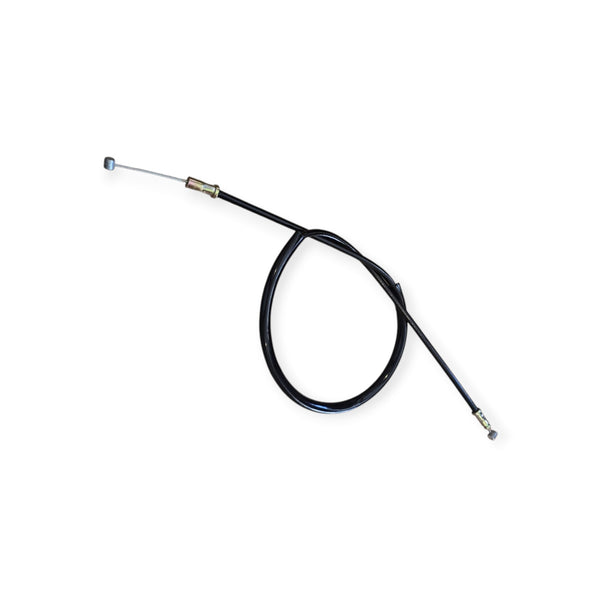

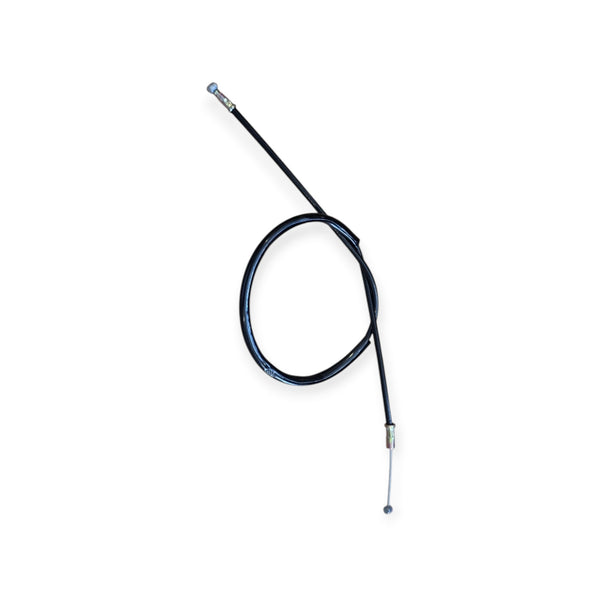

Honda C90 Cub Choke Cable 1983–2003 – 720mm Outer
Brand new aftermarket replacement carburettor choke-control cable for compatible Honda Cub models using the matching cable-operated choke arrangement.
Direct Fitment
- Honda C90 Cub — 1983–2003 applications using the matching cable-operated choke
Approximate Cable Dimensions
- Outer cable length: approximately 65 cm / 650 mm
- Inner cable length: approximately 72 cm / 720 mm
- Quantity: 1 choke cable
- Condition: Brand New
- Type: Aftermarket replacement
- SKU: 00157-ANF
Important Fitment Notes
- This aftermarket cable family is catalogued for Honda C90 Cub applications from 1983–2003.
- Older C90Z/ZZ models can use the earlier 17950-086-721 / 17950-126-920 cable family and should be checked separately.
- Honda later used references including 17950-GB4-770 and 17950-GT0-000 on various Cub applications, so physical comparison remains important.
Honda Reference Context
Honda used several different choke-cable references across C50, C70 and C90 production, including families such as 17950-086-721 / 17950-126-920, 17950-GB4-770 and 17950-GT0-000. These references are supplied only to explain why model name alone is not enough to confirm compatibility; this aftermarket cable is not represented as a Genuine Honda component.
Before Ordering
- Compare the outer-cable length with the original
- Compare the free inner-cable length

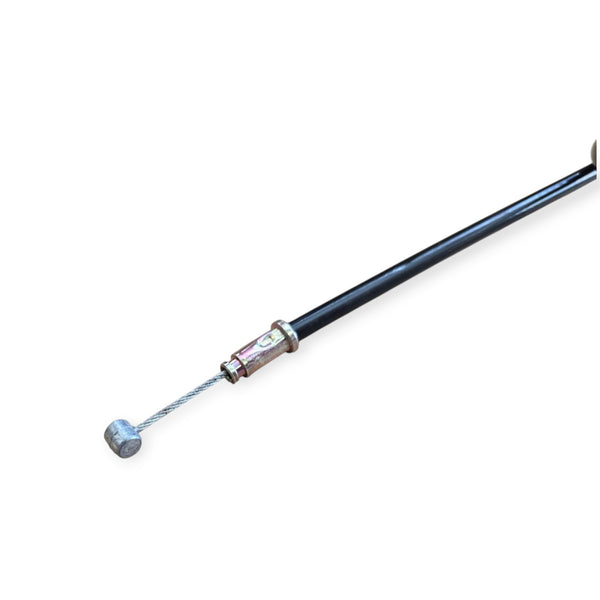

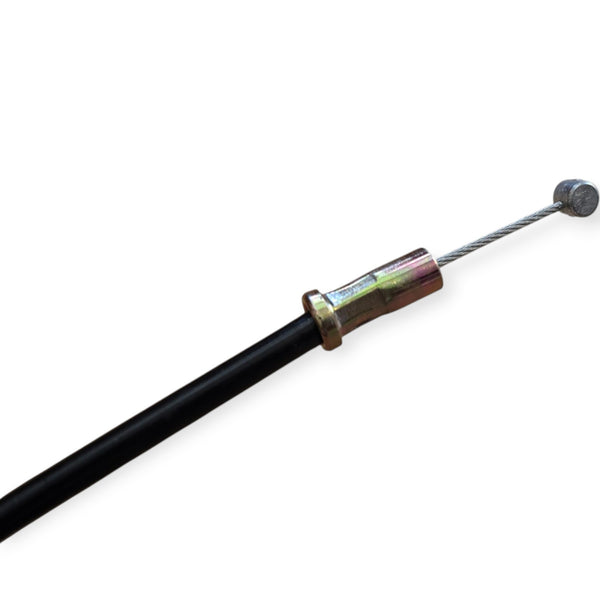

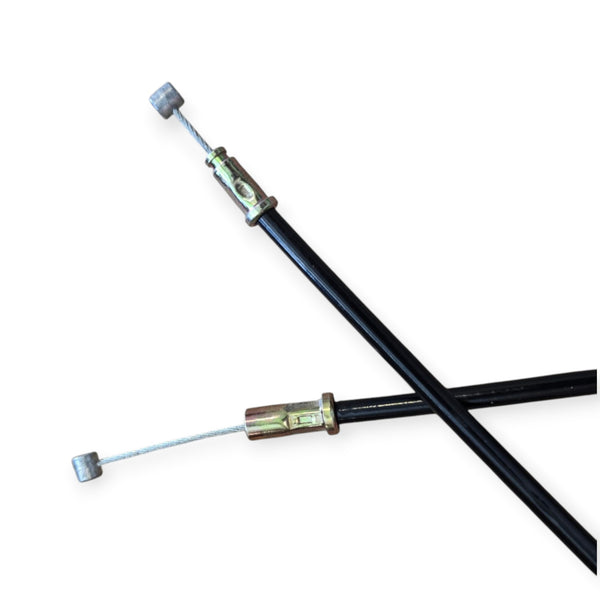

- Compare both end fittings / nipples
- Compare any adjuster or threaded fitting
- Check the cable routing and choke-lever arrangement
Do not order by “C50 / C70 / C90” model name alone. If the original cable or choke mechanism differs from the photographs or dimensions, this cable may not be suitable.
Installation
Route the cable along the original path without tight bends. After fitting, check that the cable moves freely throughout the steering range and that the carburettor choke fully opens and fully returns before riding.
