Honda C90 Cub 1984-2002 Chain & Sprocket Kit - 14T Front / 41T Rear / 420 x 100L
Brand new aftermarket final-drive chain and sprocket kit for Honda C90 Cub 12V models from 1984 to 2002, supplied with alternative 14-tooth front and 41-tooth rear gearing.

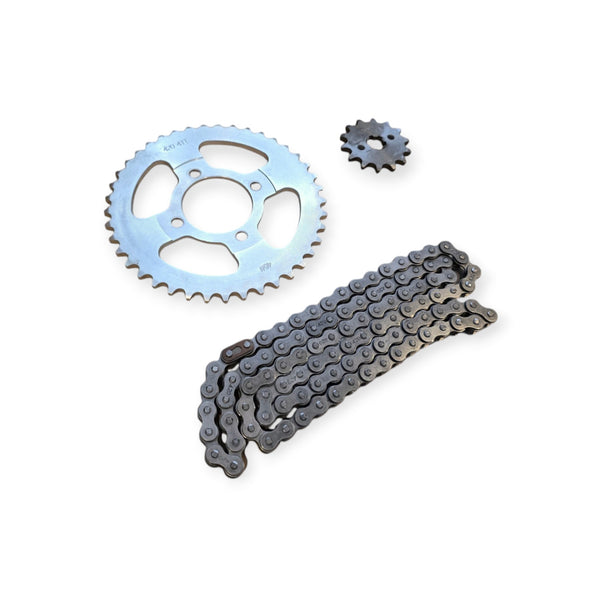

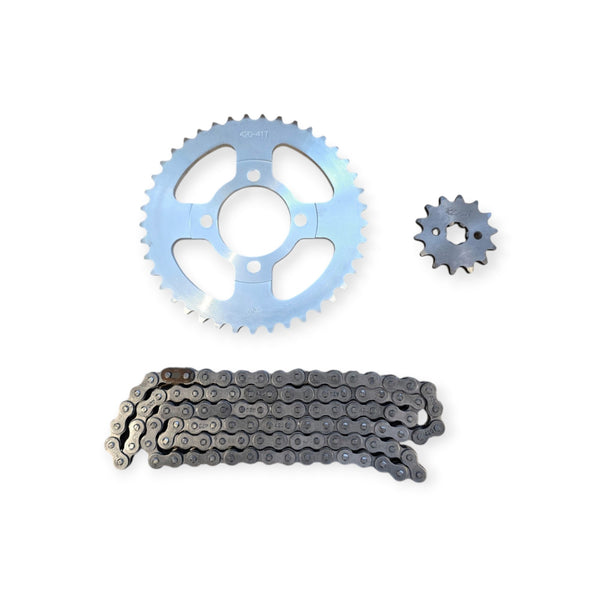

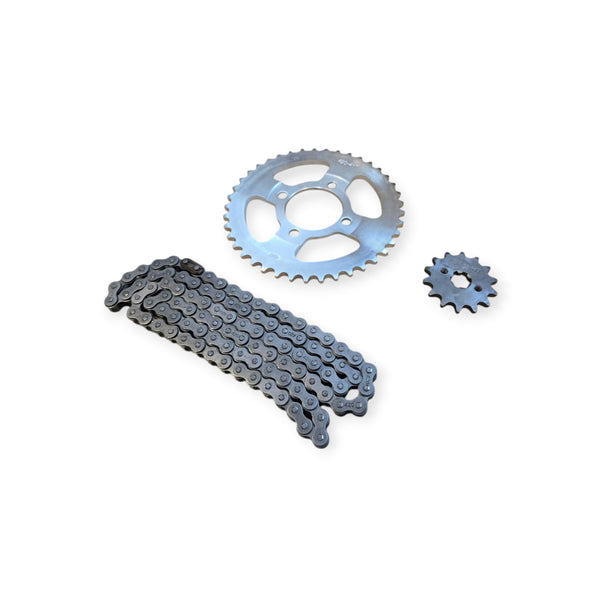

Kit Contents

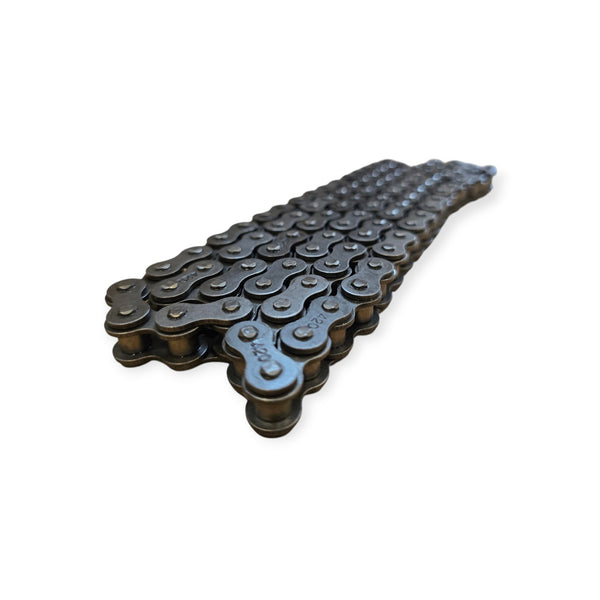

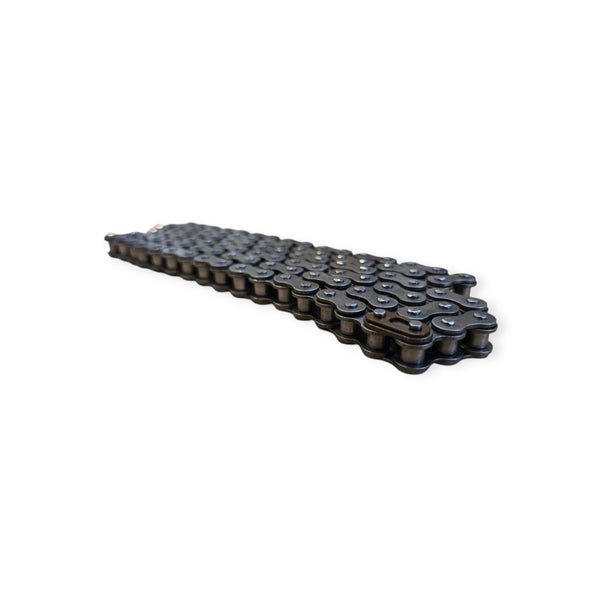

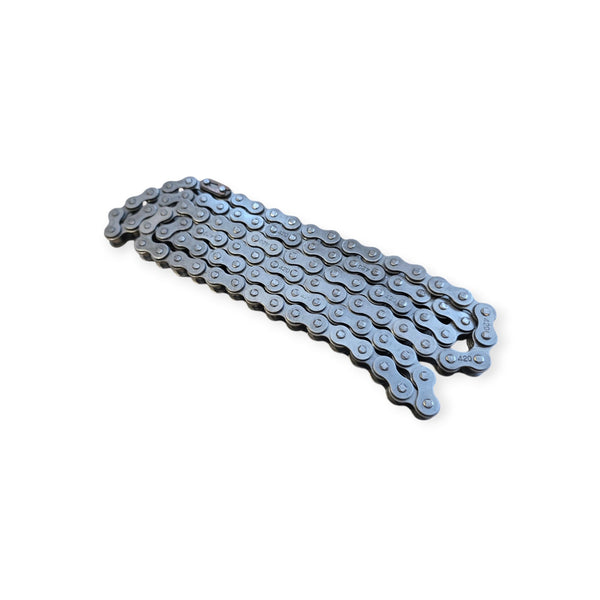

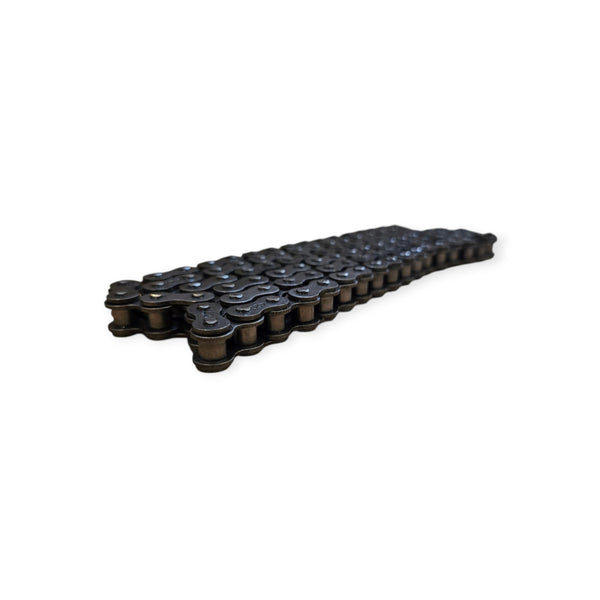

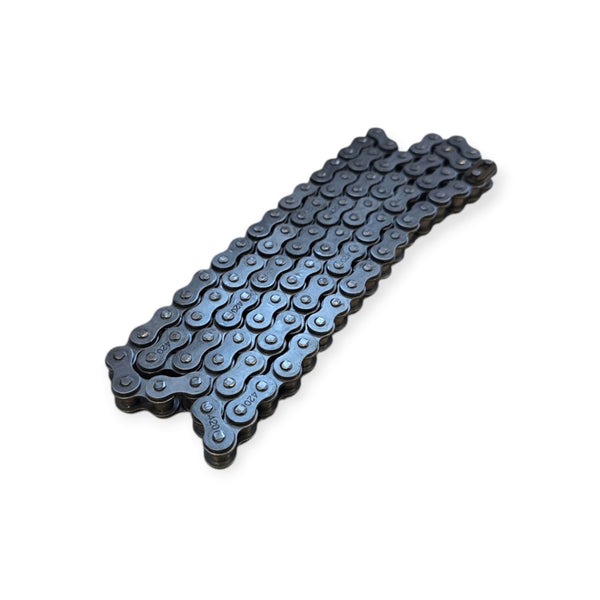

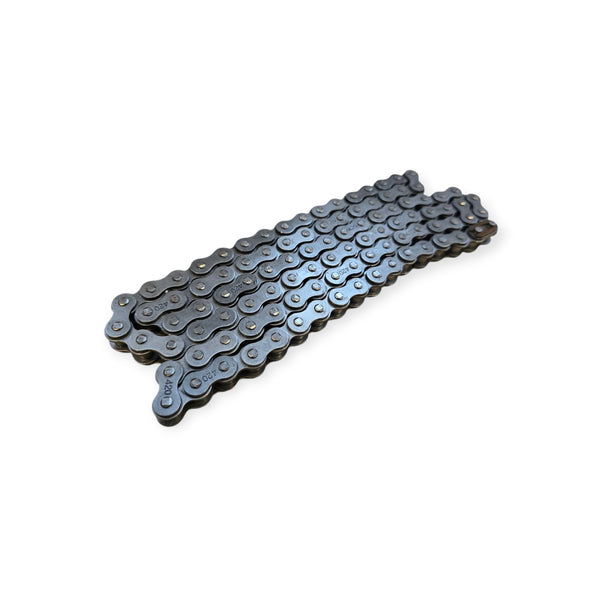

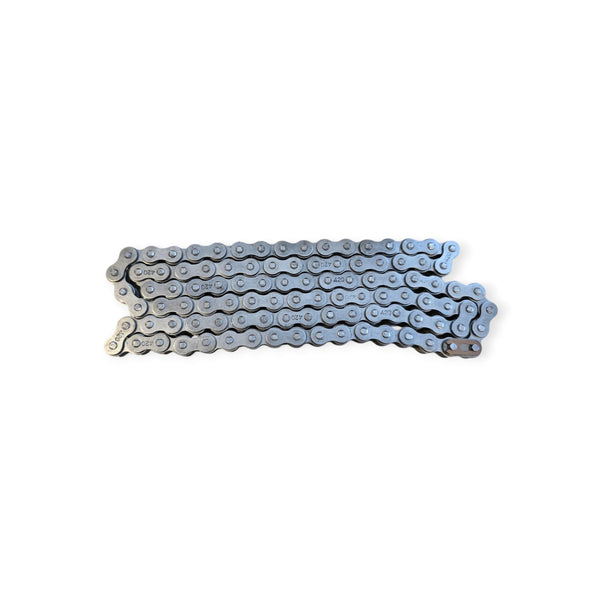

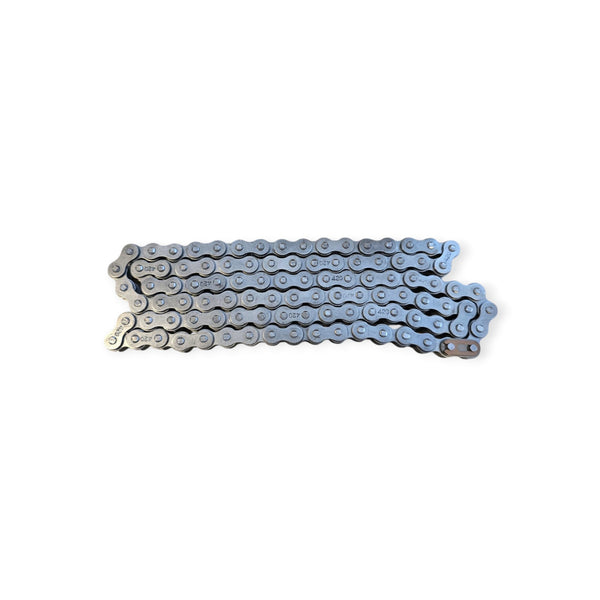

- 1 x 420 drive chain - 100 links

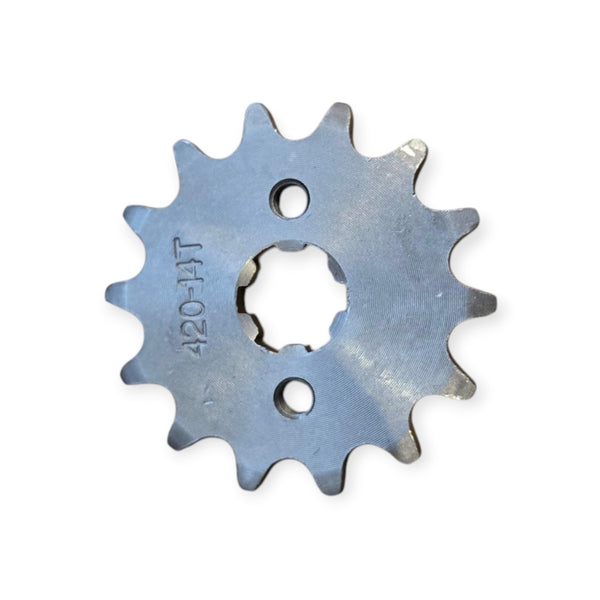

- 1 x 14-tooth front drive sprocket

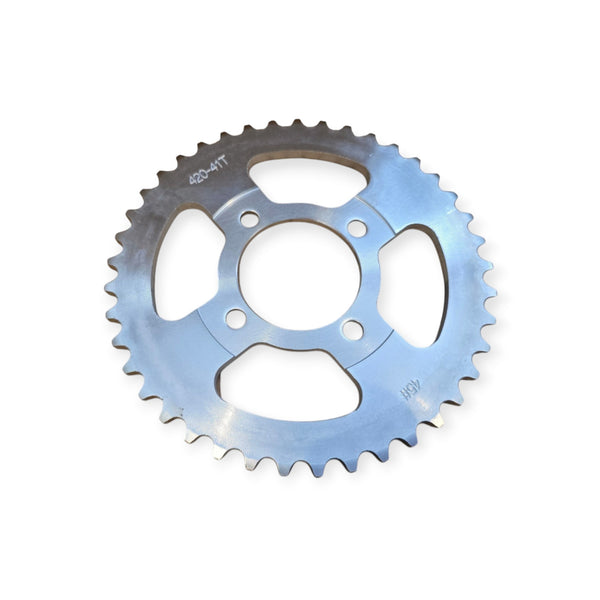

- 1 x 41-tooth rear wheel sprocket
- 1 x chain connecting / split link
Kit Specification

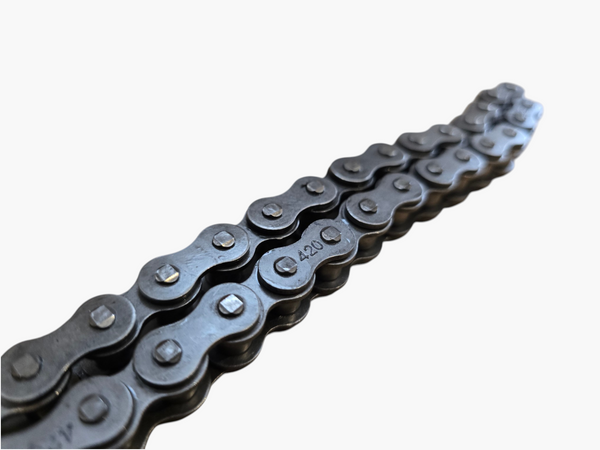

- Chain pitch: 420
- Chain length: 100 links / 100L
- Front sprocket: 14 teeth / 14T
- Rear sprocket: 41 teeth / 41T
- Final-drive ratio: approximately 2.93:1
- Sprocket material: steel
- SKU: 01708-DNT
Fitment
- Honda C90 Cub 12V - 1984 to 2002
Sprocket Cross References
- Front sprocket pattern: JT JTF253
- 14T front reference: JTF253.14
- Rear sprocket pattern: JT JTR211
- 41T rear reference: JTR211.41
- Chain specification: 420 x 100 links
Alternative Gearing
This kit uses a 14T front and 41T rear sprocket combination. This is alternative gearing rather than the catalogue-standard 15T front / 39T rear setup commonly listed for the 1984-2002 C90 Cub.
The 14T / 41T combination gives a numerically higher final-drive ratio of approximately 2.93:1. Compared with standard gearing, this generally gives shorter gearing, which may increase engine RPM at a given road speed.
Important Fitment Information
Please compare the sprocket tooth counts, chain pitch, chain length and sprocket mounting pattern with the parts currently fitted to your motorcycle before ordering. Previous owners may have changed the gearing from standard.
Condition: Brand new aftermarket replacement kit.
