Honda C90 Cub 12V Electric Start Wiring Loom Harness – 12V CDI
Brand new replacement main wiring loom / wiring harness for Honda C90 Cub 12V electric-start models.

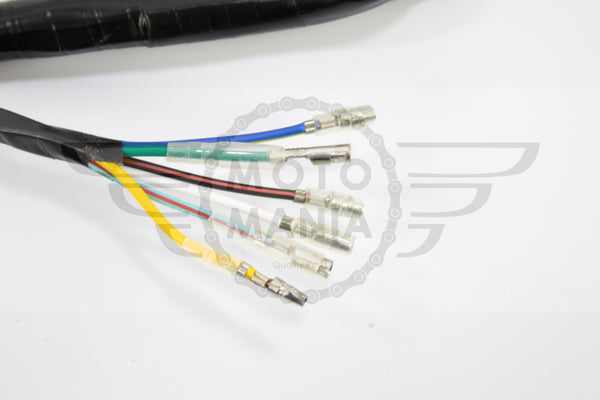

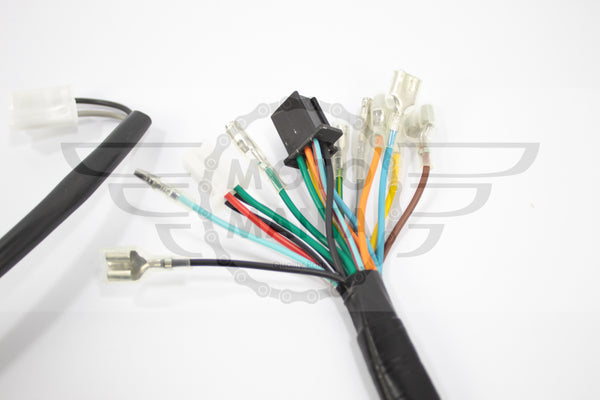

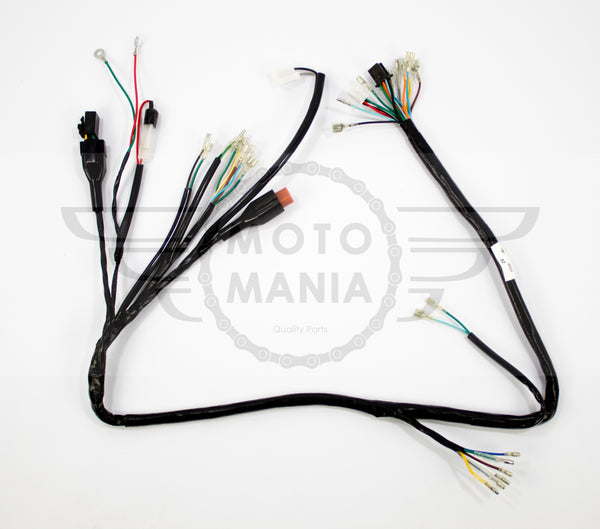

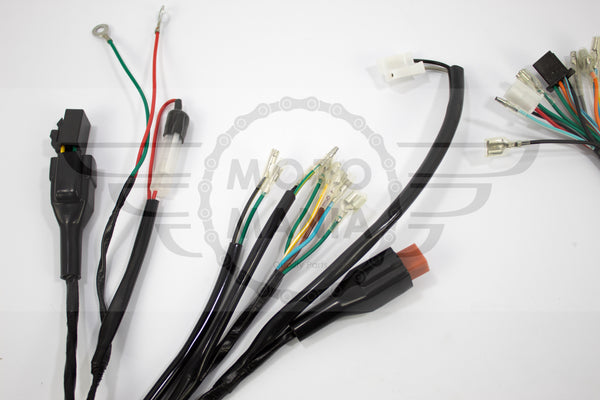

Ideal for restoring a bike with old, damaged, brittle, cut or previously modified wiring. Supplied as a complete loom with the connectors, terminals and wiring branches shown in the photographs.
Product Details
- Product: Main Wiring Loom / Wiring Harness
- Suitable for: Honda C90 Cub
- Voltage: 12V
- Ignition type: CDI
- Starter type: Electric Start
- Condition: Brand New
- Type: Aftermarket replacement
- Quantity: 1 complete wiring loom
- Connectors: Supplied fitted as pictured
Suitable For
Primarily intended for:
Honda C90 Cub 12V Electric Start models
This style of loom is also sold for certain Honda C50, C70 and C90 12V CDI electric-start applications, but Cub wiring specifications can vary considerably between model years and markets.
Features
- Complete replacement main wiring harness
- Designed for 12V electrical systems
- Suitable for electric-start applications
- CDI ignition connections
- Multiple pre-fitted bullet and block connectors
- Battery/earth terminal connections
- Main electrical branches pre-wrapped
- Ideal for restoration and rewiring projects
Ideal For
A useful replacement when the original loom has:
- Damaged or brittle wiring
- Corroded connections
- Cut or missing connectors
- Previous electrical modifications
- Poor repairs
- Electrical faults
- Been removed during a full restoration
Installing a replacement loom can provide a much cleaner starting point than repairing a heavily modified original harness.
Important Compatibility Information
Please compare the wiring loom in the photographs carefully with your existing loom before ordering.
In particular, check:
- Connector shapes
- Number of pins
- Bullet connector arrangement
- CDI connections
- Ignition switch connection
- Stator connections
- Electric starter wiring
- Regulator/rectifier connections
- Overall wiring layout
Honda C90 electrical systems changed over the years, and 12V electric-start and kick-start models are not necessarily wired identically.
This listing is for the 12V electric-start/CDI type.
Package Includes
1 x Main Wiring Loom / Wiring Harness
Supplied exactly as pictured.
Condition
Brand New
Aftermarket replacement component.
Not supplied as a Genuine Honda part unless specifically stated otherwise.
Installation
Motorcycle electrical systems should be installed and checked by someone familiar with motorcycle wiring.
Disconnect the battery before installation and confirm that all connectors correspond with the motorcycle's existing electrical components before applying power.
