Honda C90 Cub 12V CDI Wiring Loom / Harness
Replacement motorcycle wiring harness for compatible Honda Cub and Lifan-based applications using the connector layout shown in the product photographs. This is the wiring loom itself — it is not a CDI unit.
Confirmed Loom Details
- Quantity: 1 complete wiring loom / harness as pictured
- Electrical system: 12V CDI-type application
- CDI connection: wired for a 5-pin CDI module
- Kill-switch terminal: centre position in the 5-pin CDI block, as specified by the seller
- Ignition switch: suitable for a 4-wire ignition-switch connection
- Connector style: bullet connectors plus moulded block connectors as pictured
- Non-electric-start applications: stated as plug-and-play where connectors/electrics match
- Electric start: may be adapted, but additional wiring/modification can be required
- Condition: new aftermarket replacement
- Brand: unbranded
Components / Connections Shown

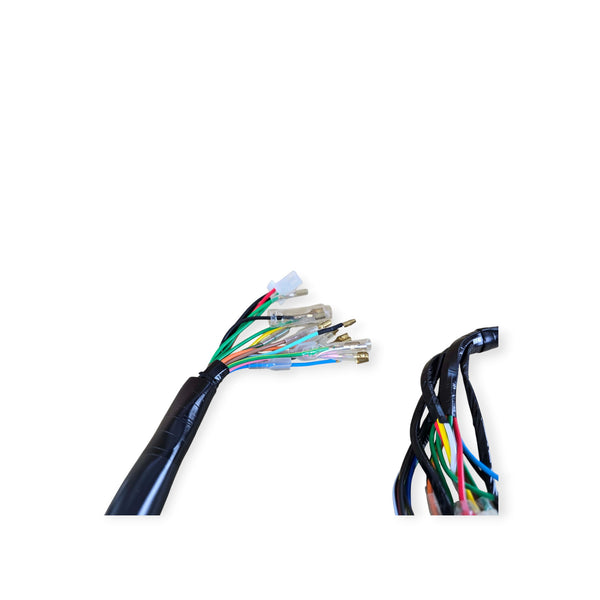

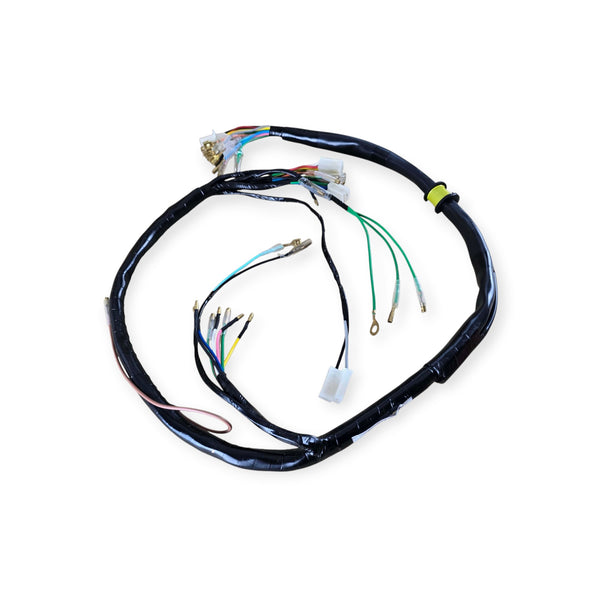

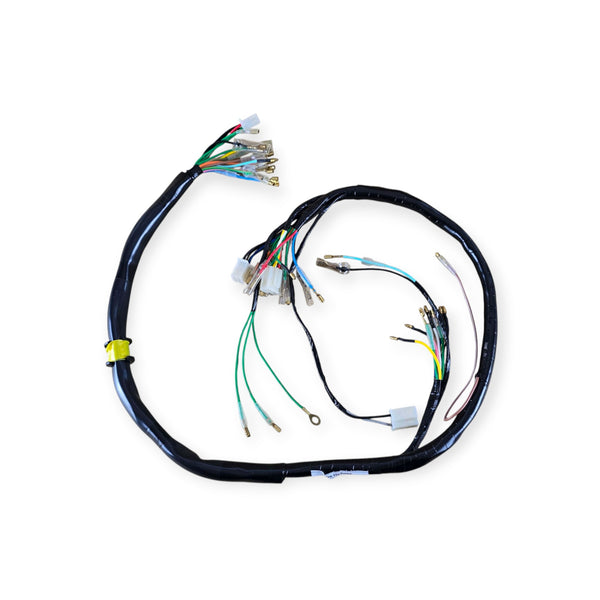

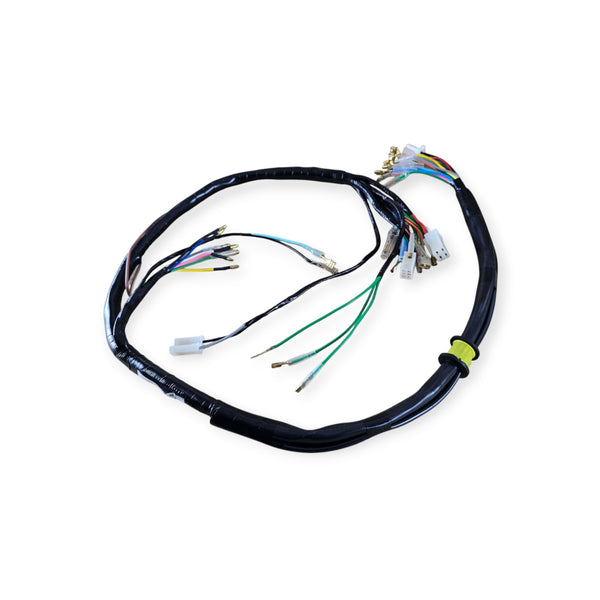

- Main wrapped wiring-harness trunk and branch wiring
- 5-pin CDI block connector
- Ignition-switch connector / wiring branch

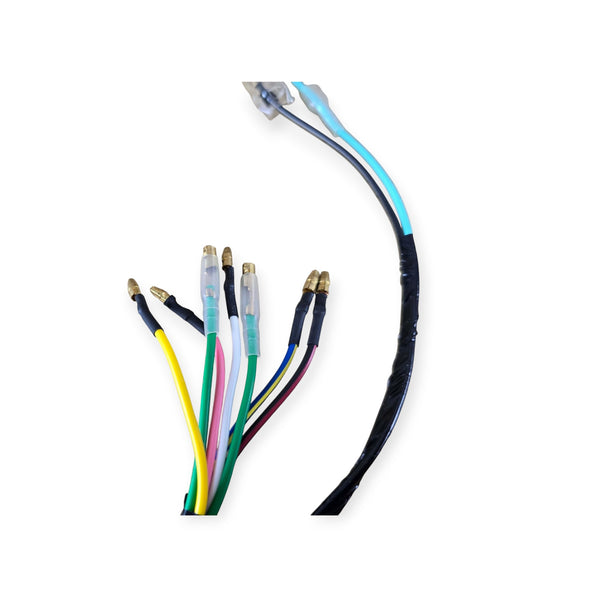

- Multiple insulated bullet terminals

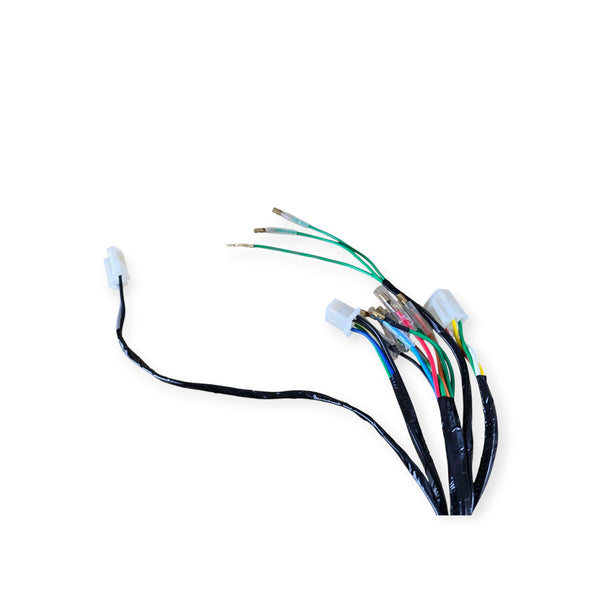

- Multi-pin block connectors for the motorcycle electrical system as pictured
- Earth / ground and individual terminal leads visible in the loom
Fitment
Seller fitment includes Honda Cub C90 12V CDI applications. A specialist Cub loom also confirms that 12V CDI C90 wiring may be configured for kick-only or electric-start use, but connector and charging-system layouts vary. The supplied loom is stated as plug-and-play for non-electric-start applications; electric-start installations may require adaptation.
Before ordering: compare the supplied photographs with the loom currently fitted. Check the CDI plug pin count and pin positions, ignition-switch plug, stator/generator wiring, regulator/rectifier connections, neutral/lighting/control connections and bullet-terminal genders. Wire colour alone should not be used as proof of compatibility.
12V CDI only: do not treat this as a direct replacement for earlier 6V points-ignition Honda Cubs unless the motorcycle has been correctly converted and the connector layout matches.
Part Number Information
This is an unbranded aftermarket wiring loom. No manufacturer-stamped MPN has been verified and no genuine Honda or Lifan OE wiring-harness number can safely be assigned to this multi-application product. Google Shopping MPN is therefore left blank.
Moto Mania internal stock reference: 01728-EIP.
Installation Notes
- Disconnect the battery where fitted before electrical work
- Route the loom away from exhaust heat, sharp edges and moving parts
- Do not force mismatched connectors or interchange terminals based only on colour
- Confirm correct earth connections and fuse protection before powering the system
- If adapting for electric start, use the correct starter relay, battery cables and switching circuit for the engine
