Honda C50 Custom 12V Electric Start Stator / Alternator & Pickup Assembly
Replacement 12V electric-start stator and pulse-pickup assembly for compatible Honda C50 Custom 12V Electric Start Honda Cub applications.
Fitment
C50 electric-start fitment is source-listed, but Honda genuine references vary by year. A 1999 C50 Custom fiche uses 31120-GK4-872 and a 2002 C50 Custom fiche uses 31120-GK4-873. Order this aftermarket unit only when the photographed stator, pickup and connectors match the original motorcycle.

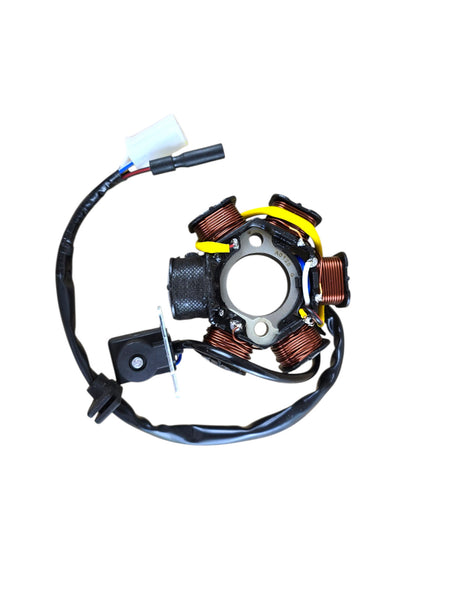

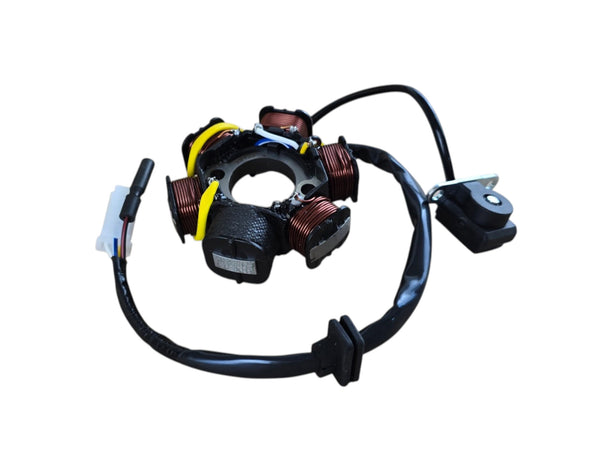

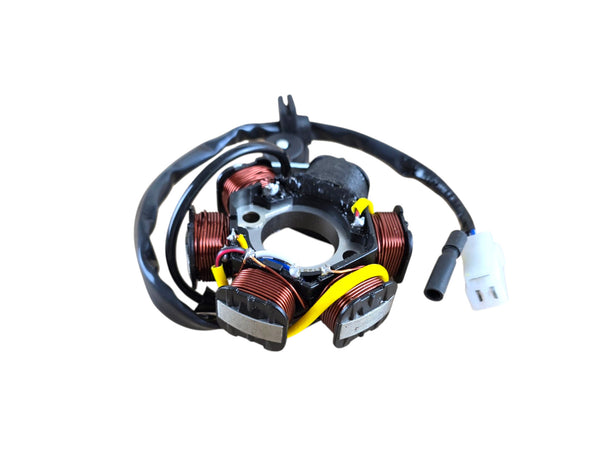

Components Identified from the Product Photos

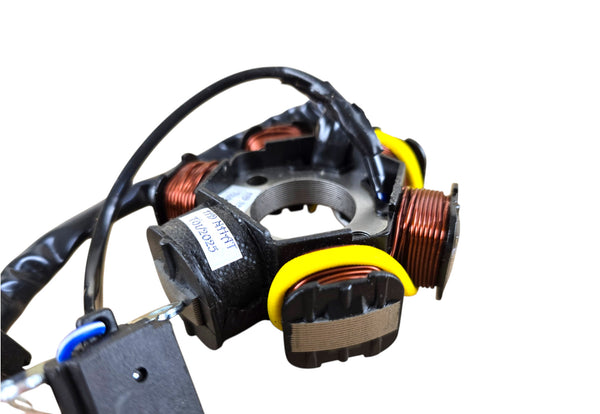

- 1 × multi-coil alternator / stator assembly
- 1 × external pulse / pickup sensor on its mounting bracket
- Attached insulated wiring loom

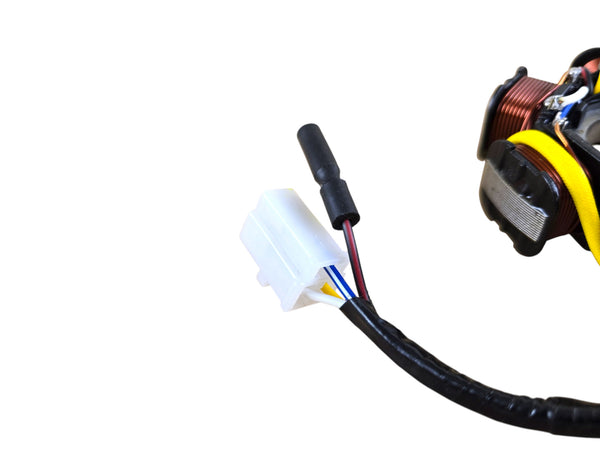

- Pre-fitted electrical connectors / terminals
- Integrated cable protection / sleeving as shown
Flywheel/rotor is not included. This listing is for the stator, pickup and attached wiring shown in the photographs.
Detailed Product Description
Aftermarket 12V electric-start stator / alternator assembly for compatible Honda Cub engines using the matching multi-coil stator and external pulse-pickup layout. The stator produces electrical output for the motorcycle charging and ignition system while the pickup sensor provides the trigger signal used by the ignition system.
This is specifically the electric-start style. Honda used several different Cub stator families across C50, C70 and C90 production, so the model name alone is not enough to guarantee fitment. The physical stator core, pickup position, wiring colours, connectors, grommets and original Honda part number should all be compared before ordering.
Symptoms of a Faulty Stator / Pickup
- Weak or no battery charging
- Intermittent or absent ignition trigger
- Difficult starting or non-starting when other ignition parts test correctly
- Burnt or visibly damaged stator windings
- Open-circuit or out-of-spec resistance readings
- Damaged pickup wiring or connectors
Important Fitment Checks
- Confirm the motorcycle is a 12V electric-start Cub model.
- Compare the stator diameter, mounting holes and pickup-sensor position with the original.
- Compare every connector, bullet terminal and wire colour before installation.
- Check the original Honda stator number where possible.
- Do not order this part as a substitute for a kick-start-only Cub stator simply because the engine capacity is the same.
- Earlier and later Honda electric-start Cub models can use different genuine stator families.
Installation & Diagnosis
Before replacing the stator, check the battery condition, regulator/rectifier, wiring earths, connectors and charging-system continuity. A failed regulator, damaged loom or poor earth can produce symptoms similar to a failed stator. Installation should be carried out with the correct flywheel removal tools and the wiring routed exactly as the original to prevent contact with the rotor.
Delivery & Returns
- Fast UK dispatch
- Free UK delivery where shown on the product page
- 30-day returns, subject to the item being returned unused and in its original condition
Honda / Mitsuba OE Cross-References
The supplied Moto Mania stator is unbranded aftermarket. Honda/Mitsuba part numbers below are identification and compatibility references only and are not claimed to be the MPN printed on this exact supplied unit.
- 31120-GT0-762 – Mitsuba stator used on electric-start C70/C90 Custom-family applications; this is the strongest visual and catalogue match to the supplied stator layout
- 31120-GT0-761 – related C70 Custom Mitsuba stator reference listed alongside GT0-762
- 31120-GN8-601 – earlier C90M electric-start stator family used on 1985-1992 C90MF/MG/MN models; compare carefully because this is a different Honda generation
- 31120-GK4-872 / 31120-GK4-873 – C50 Custom electric-start stator references used on 1999 and 2002 genuine Honda fiches; C50 fitment therefore requires connector/layout comparison rather than assuming GT0-762
No single Honda stator number safely covers every C50, C70 and C90 electric-start year. Use the original part number and physical layout as the final fitment check.
