Genuine Honda SH Mode 125 Red Rear Shock – 52400-K29-951
Genuine Honda / Showa rear shock absorber for selected Honda SH Mode 125 ANC125 applications. This is the red-spring rear cushion assembly supplied under Honda manufacturer part number 52400-K29-951.
Product Identification
- Manufacturer: Honda
- Shock manufacturer: Showa
- Honda OE / MPN: 52400-K29-951
- Honda description: CUSHION ASSY., RR. (SHOWA)
- Position: rear suspension
- Colour: red coil spring with silver/chrome damper body
- Quantity: 1 rear shock absorber
- Condition: new Genuine Honda part

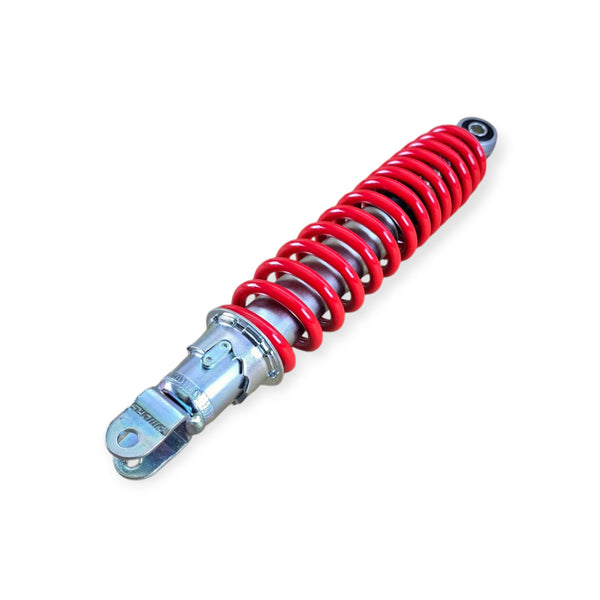

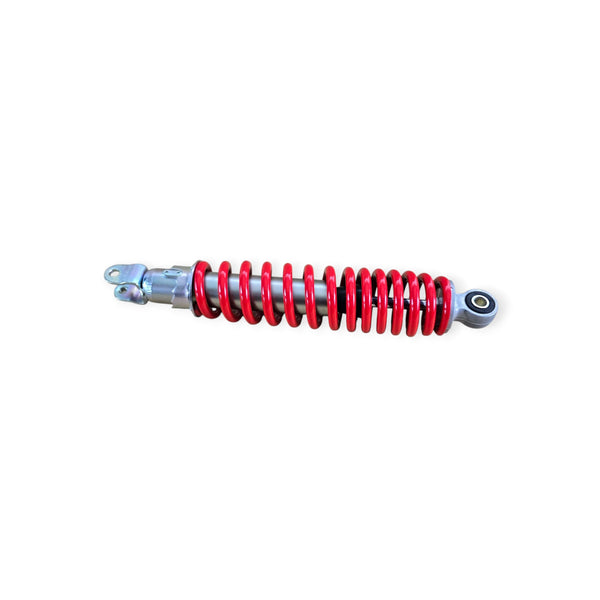

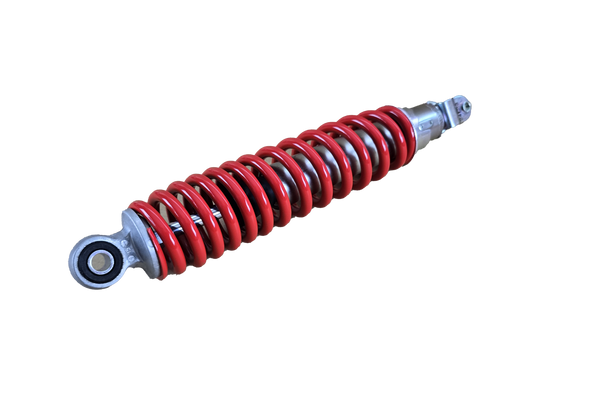

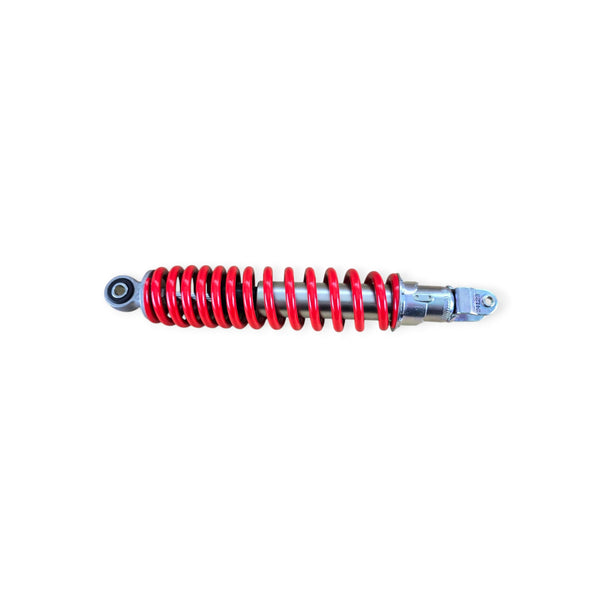

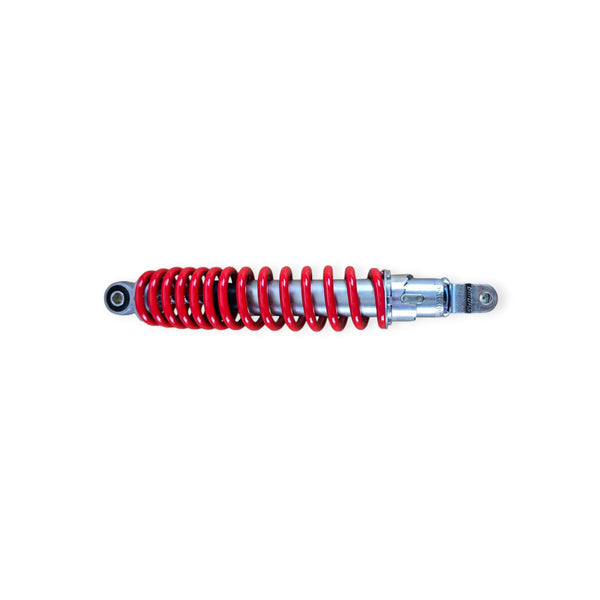

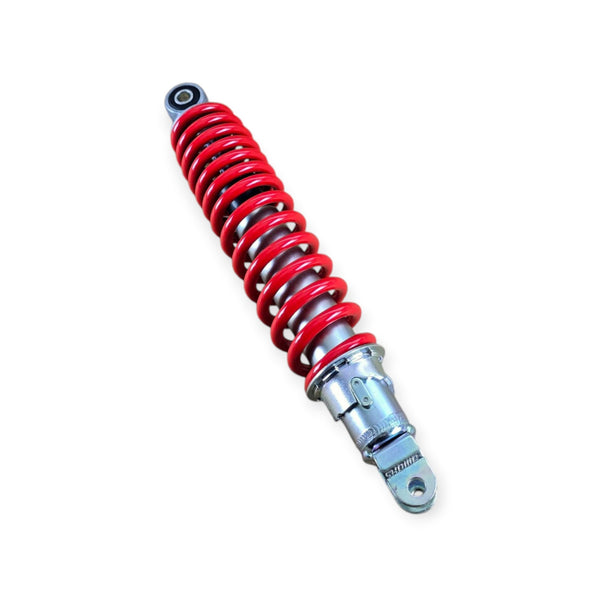

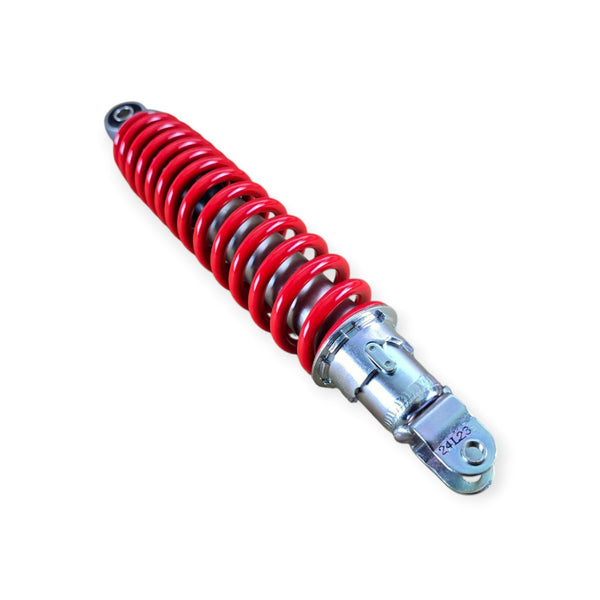

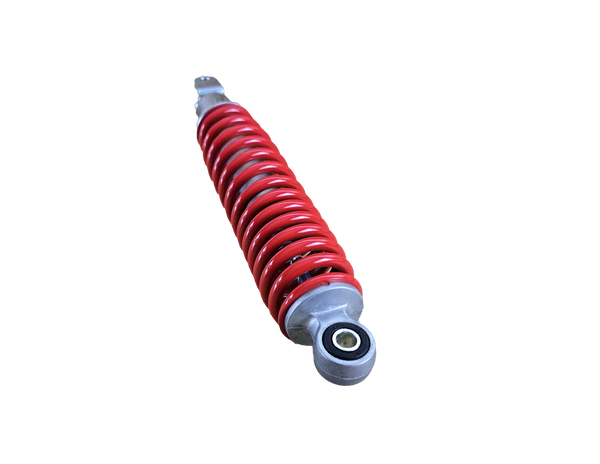

Components Identified From The Photos
- Complete rear shock / rear cushion assembly
- Red coil spring
- Hydraulic damper body and piston rod
- Upper mounting eye with rubber bush / collar arrangement
- Lower fork / clevis-style mounting bracket

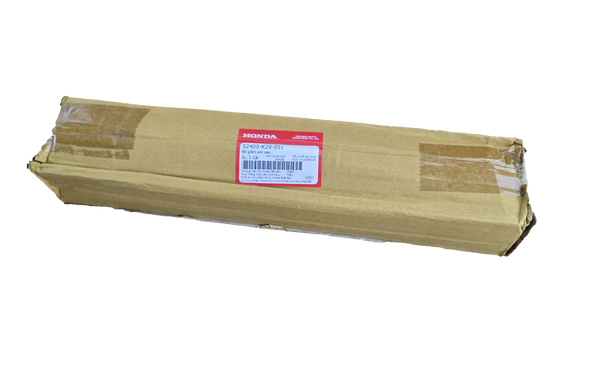

- Honda Genuine Parts label / OE identification where shown
Fitment Guide
- Honda SH Mode 125 / ANC125 – 2017–2019: primary seller-listed application for this red 52400-K29-951 shock.
- Honda SH Mode 125 ANC125H – 2019: Honda catalogue data directly lists 52400-K29-951 as the rear cushion assembly.
- Selected K29 finish / colour variants: Honda K29 catalogue data shows both 52400-K29-901 and 52400-K29-951 within the SH Mode 125 rear-shock family, depending on finish/version.
- Some 2017–2018 European catalogue pages show 52400-K29-901 instead of 52400-K29-951. For this reason, the part number is a more reliable fitment check than year alone.
Important Compatibility Check
Before ordering, confirm that your original shock or Honda parts lookup calls for 52400-K29-951. Do not assume that every 2017–2019 SH Mode 125 uses the red 951 shock simply because the model and year match. Honda used different rear-cushion variants within the K29 family.
Honda OE / Related Part Numbers
- 52400-K29-951 – CUSHION ASSY., RR. (SHOWA) – main product / manufacturer MPN
- 52400-K29-901 – alternate SH Mode K29 rear-cushion variant used on other finish/model combinations; not interchangeable by assumption
- 52485-088-901 – BUSH, RR. CUSHION RUBBER (SHOWA)
- 52486-GA7-003 – COLLAR, RUBBER BUSH (SHOWA)
- 92201-100850H – BOLT, HEX., 10X85
- 94101-10000 – WASHER, PLAIN, 10MM
- 90131-K01-900 – BOLT, FLANGE, 8X32
The bush, collar, bolts and washer are related Honda mounting references from the rear-shock parts diagram and are not automatically included unless they are visibly supplied with this stock item.
Replacement Advice
- Check the opposite rear shock for leakage, weak damping, corrosion or spring damage before replacing only one side.
- Compare the mounting eye, lower clevis, overall shock dimensions and OE number with the part removed from the scooter.
- Use the correct Honda model code / VIN parts lookup if the existing part number cannot be read.
Installation Note
Support the scooter securely before removing the rear shock. Tighten the mounting hardware to the Honda workshop specification for the exact model and check suspension travel, clearances and fastener security after installation.
