Genuine Honda SH Mode 125 / Icon 110 Rear Shock 52400-K29-901

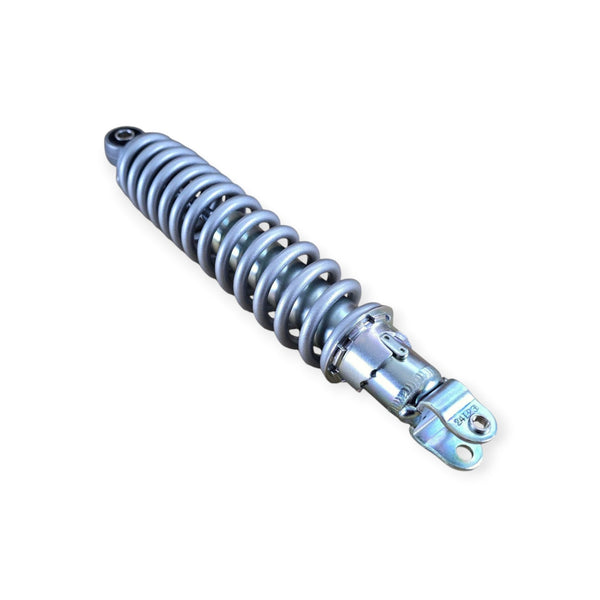

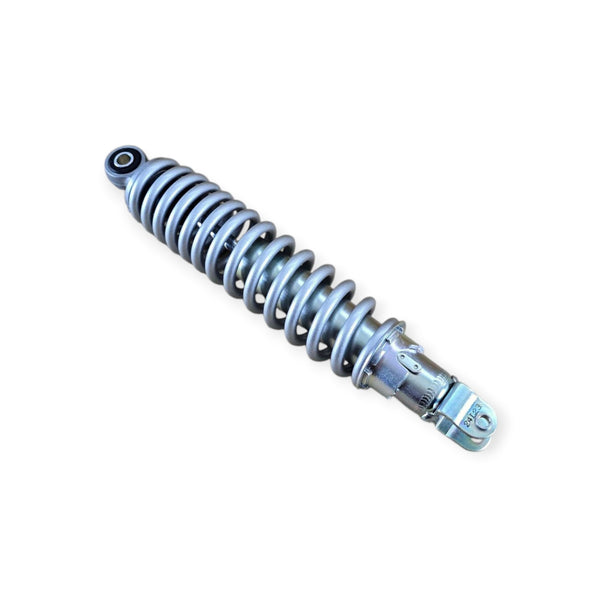

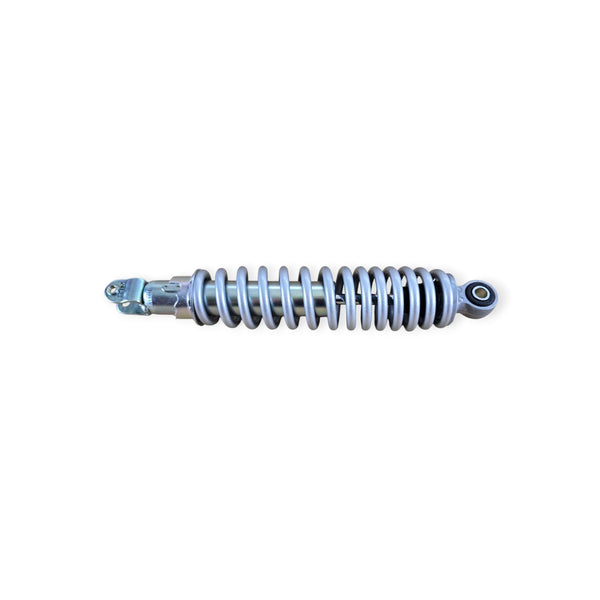

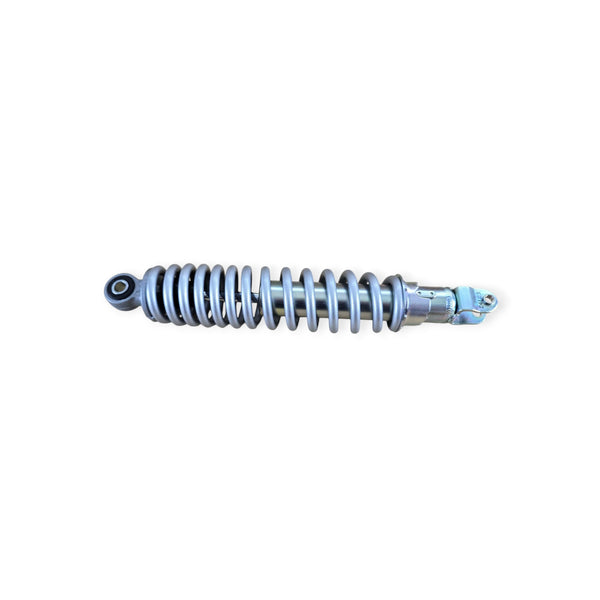

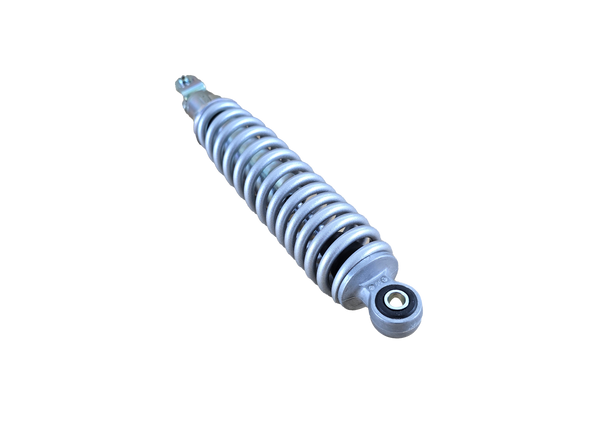

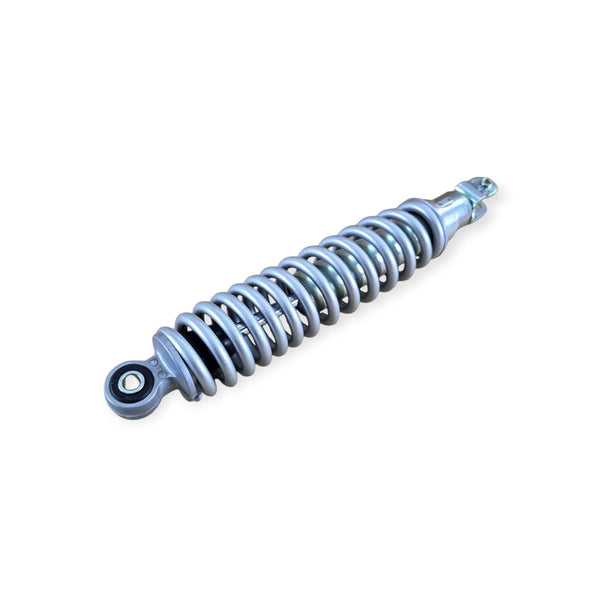

Genuine Honda / Showa rear shock absorber assembly, Honda OE part number 52400-K29-901. This is a genuine branded suspension component, not an aftermarket pattern shock.
What Is Supplied
- 1 x genuine Honda / Showa rear shock absorber assembly
- Coil spring and hydraulic damper body
- Upper and lower mounting ends as fitted to the shock
- Integral/installed mounting bush components visible on the supplied unit
Sold individually — one shock absorber. Motorcycle mounting bolts, washers and any separate chassis-side hardware are not included unless clearly shown in the product photographs.
Vehicle Fitment
- Honda SH Mode 125 / ANC125: 2013–2019
- Honda Icon 110 / ANC110CCM9: 2009–2016
Icon warning: do not assume fitment to ACC110SCB / ACC110SCC versions; Honda catalogues list those with rear shock 52400-KVY-971 instead.
Honda / Showa Reference
- Honda OE / manufacturer part number: 52400-K29-901
- Honda description: CUSHION ASSY., RR. (SHOWA)
- Position: Rear
- Condition: New genuine Honda part
Associated Honda Suspension References
Honda parts diagrams around this shock also list rear-cushion bush 52485-088-901 and rubber-bush collar 52486-GA7-003. These surrounding catalogue references are useful for identification but should not be assumed to be separate loose parts included with this shock.
Compatibility Check
Match the Honda part number and vehicle model code before ordering. Also compare the shock length, upper/lower mounting arrangement, bush width and bolt diameter with the unit currently fitted. Honda used visually similar shocks with different part numbers on related scooter variants.
Installation Notes
- Support the scooter safely before removing the rear suspension unit.
- Inspect mounting bolts, bushes and collars for wear before reassembly.
- Tighten mounting hardware to the Honda workshop-manual torque specification for the exact model.
- Check suspension movement and clearance before road use.
