Genuine Honda SH Mode 125 2014-2019 Inner Lower Cover 81141-K29-900ZC
Genuine Honda inner lower front cover panel for compatible Honda SH Mode 125 / ANC125 scooters. Honda identifies this part as COVER, INNER LOWER *NH1*; NH1 is the black finish.
What Is Supplied

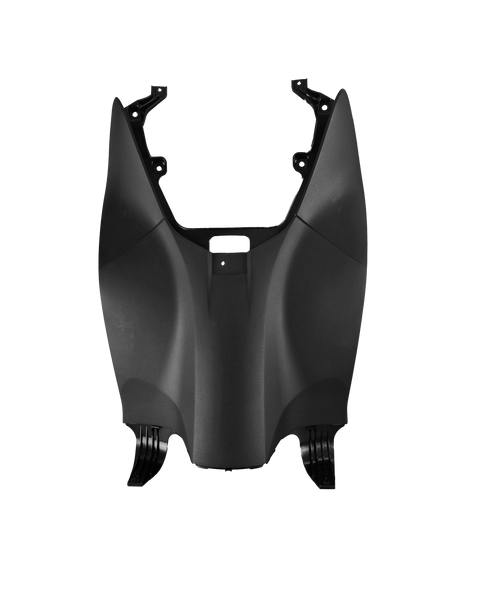

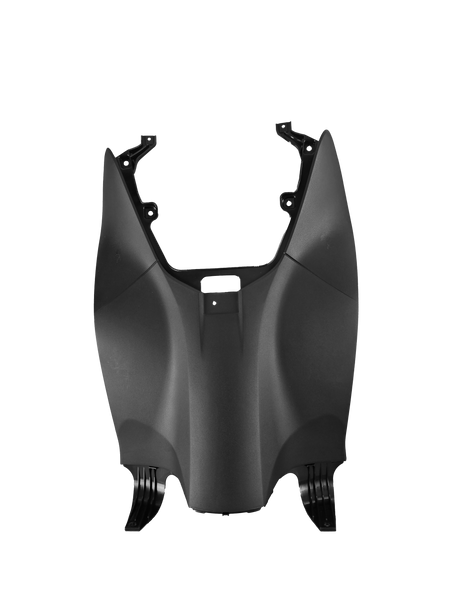

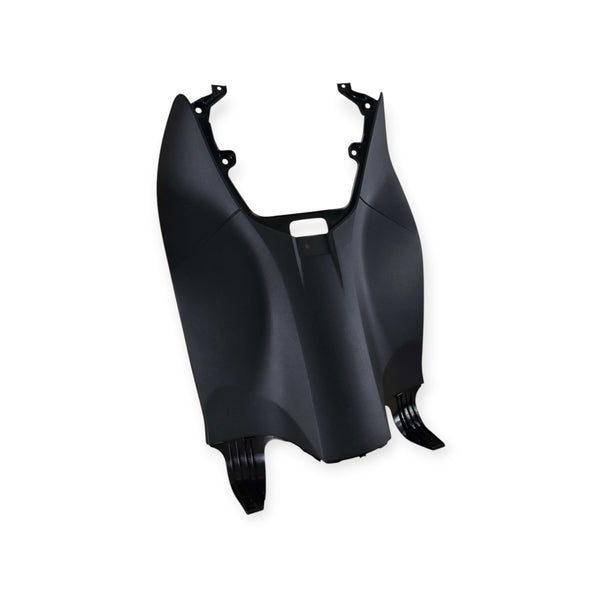

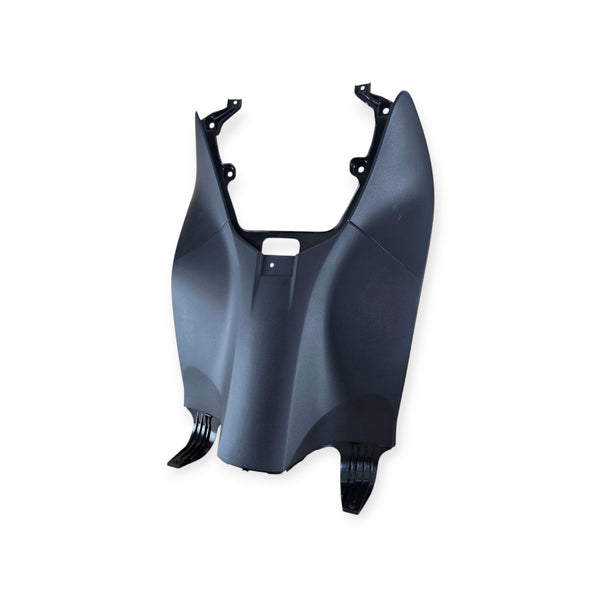

- 1 x genuine Honda moulded inner lower cover / lower leg-shield panel
- Black NH1 finish

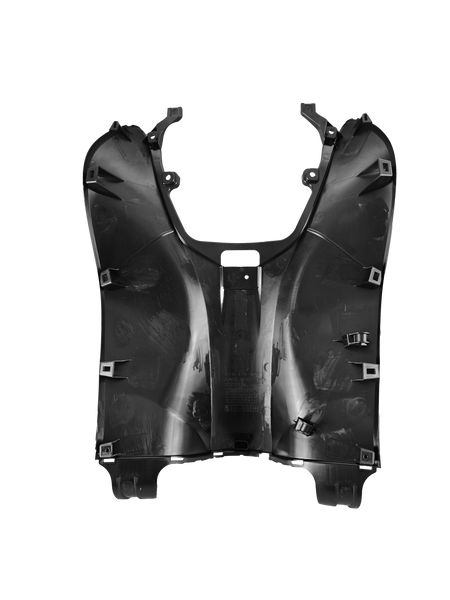

- Integrated moulded mounting tabs, bosses and fixing holes
- Central shaped opening around the steering/ignition-lock area

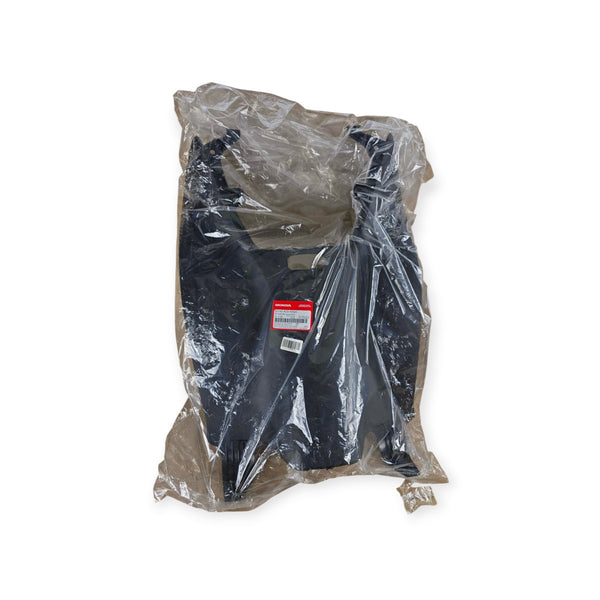

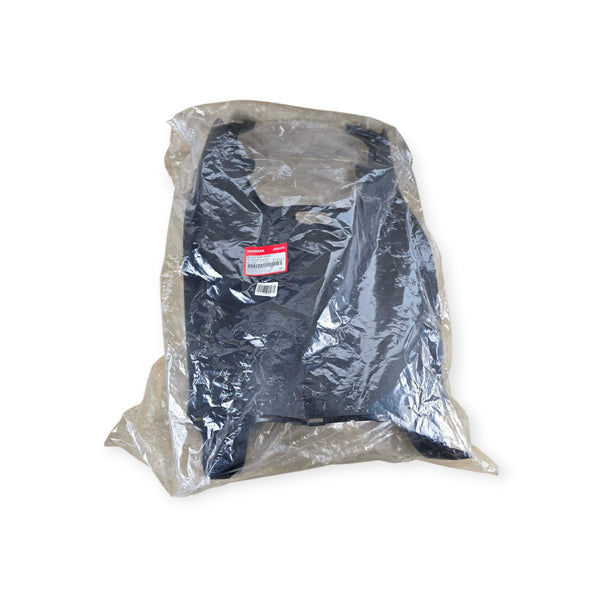

Panel only, supplied as pictured. Rivets, clip nuts, screws, luggage hook parts, upper inner cover and adjacent floor/body panels are not included unless clearly shown in the product photographs.
Vehicle Fitment
- Honda SH Mode 125 / ANC125: 2014–2019, where the original black inner lower cover is Honda 81141-K29-900ZC
2020 fitment is not claimed as a blanket direct fit. Honda lists multiple SH Mode model codes in 2020, including ANC125C and the newer FSH125 generation, and related later/smart-key variants can use different 81141-K29-960 colour-coded lower covers. Match the exact part number before ordering.
Honda OE / Manufacturer Reference

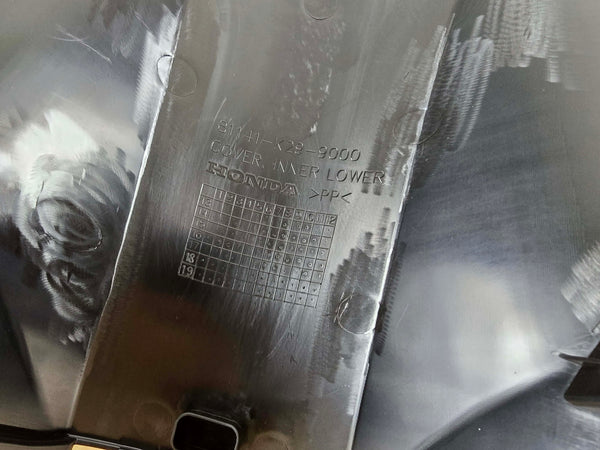

- Honda manufacturer part number: 81141-K29-900ZC
- Compact/interchange format: 81141K29900ZC
- Honda description: COVER, INNER LOWER *NH1*
- Colour code: NH1 — Black
- Position: Front / inner lower leg-shield area
Related Honda Fixings
Honda front-cover diagrams list surrounding fasteners separately, including panel rivets, clip nuts and screws. These catalogue references identify the mounting system but are not included with this cover unless shown in the listing photographs.
Compatibility Check
Before ordering, compare 81141-K29-900ZC with the number on your original panel or confirm it from the Honda parts catalogue/VIN. Also compare the ignition/lock opening, upper mounting tabs, lower edge, fixing holes and colour. Visually similar SH Mode panels can differ by market, model code, colour and smart-key specification.
Installation Notes
- Remove surrounding trim carefully to avoid breaking plastic tabs or push-rivets.
- Transfer only reusable clips/fixings that are in good condition.
- Align every tab and locating point before tightening screws or installing rivets.
- Do not force the panel into position; misalignment usually indicates an incorrect tab or adjacent panel position.
