Honda PCX125 WW125 2018-2020 Genuine Honda Rear Shock Absorber
Genuine Honda rear suspension shock absorber / rear cushion assembly, supplied under Honda manufacturer part number 52400-K97-T01. This is an original Honda component rather than an aftermarket replacement.
Part Identification
- Manufacturer: Honda
- Honda MPN / OE number: 52400-K97-T01
- Honda description: CUSHION ASSY., RR. / rear cushion assembly
- Position: rear suspension

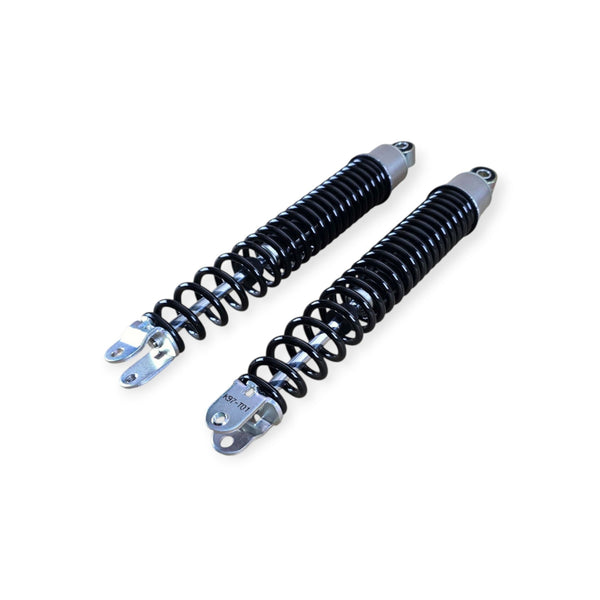

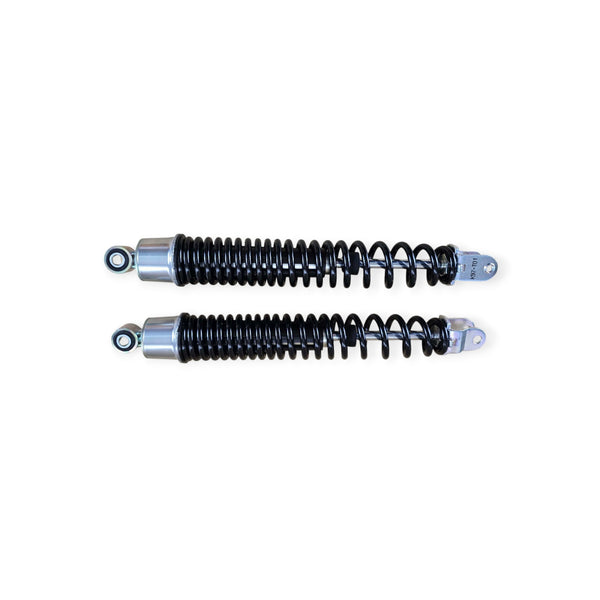

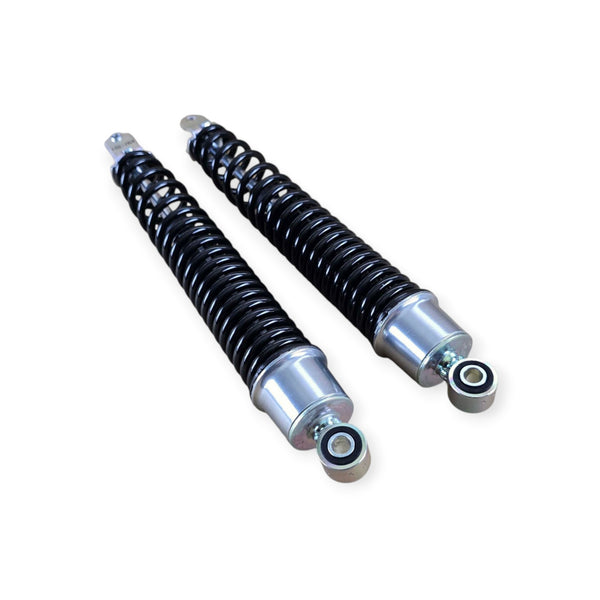

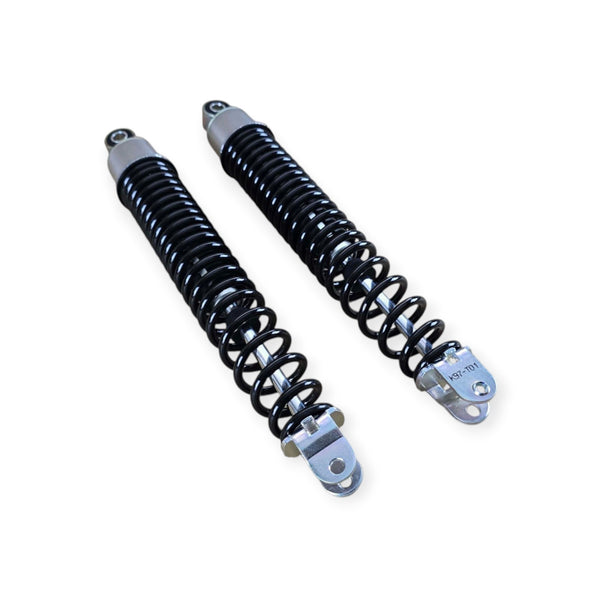

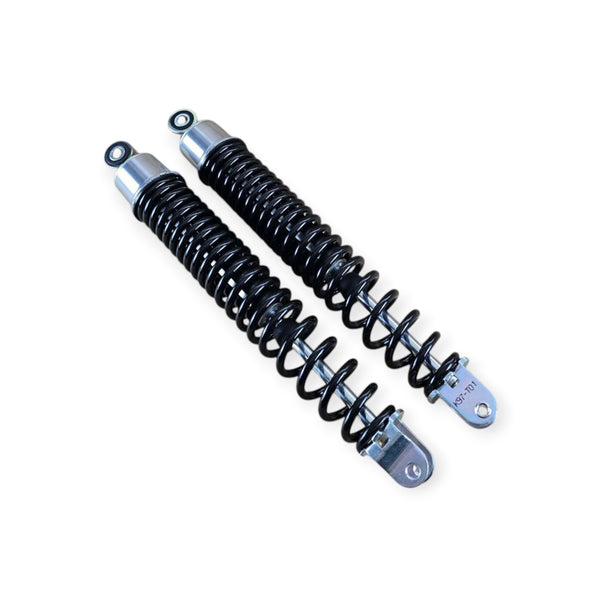

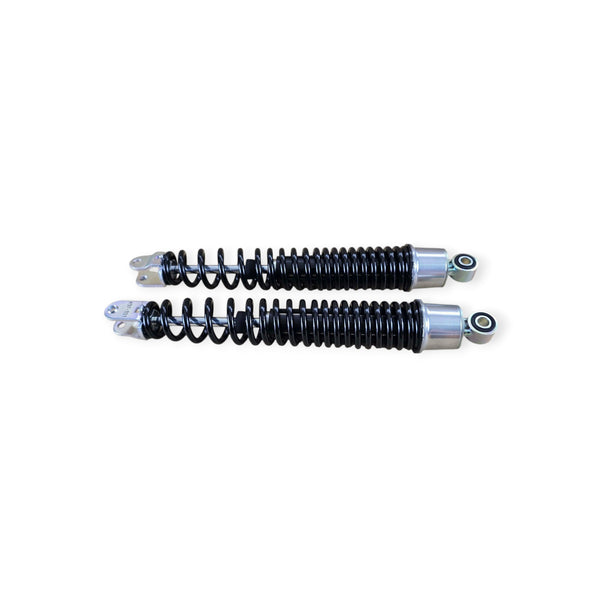

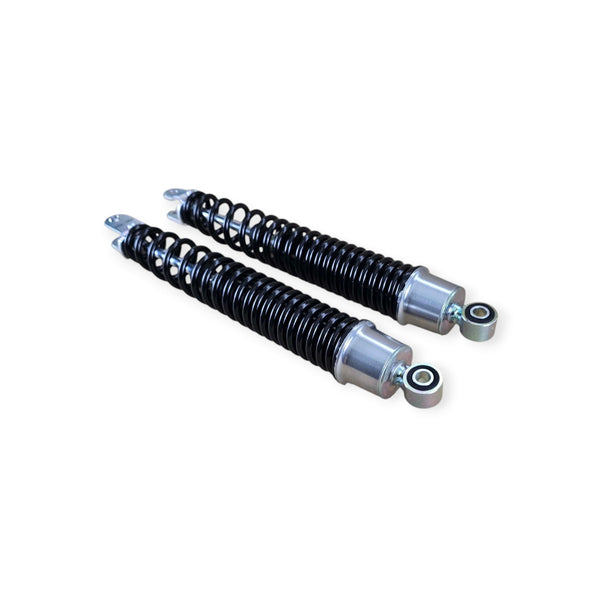

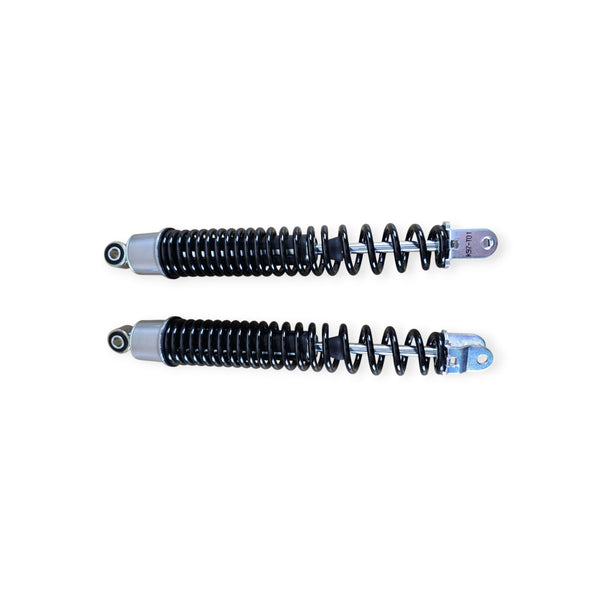

- Construction: black coil-over spring with hydraulic damper body
- Mounting: upper eye/bush mount with lower fork/clevis-style mounting bracket
Components Visible / Associated With The Assembly
- Complete rear shock / cushion assembly
- Black coil spring
- Damper body and piston rod
- Upper mounting eye with rubber bush/collar arrangement
- Lower clevis / fork mounting bracket
- Honda identification / part-number marking and Genuine Honda packaging or label where shown in the photographs
Quantity note: Honda parts catalogues specify a required quantity of 2 rear cushion assemblies per scooter. Part number 52400-K97-T01 identifies one cushion assembly. Check the quantity shown/offered in this listing when ordering.
Fitment Guide
- Honda PCX125 2018 WW125AK / WW125J – Honda catalogues list 52400-K97-T01 as the rear cushion assembly.
- Honda PCX125 2019 WW125AK / WW125J / WW125K – documented application in Honda parts catalogues.
- Honda PCX125 2020 WW125AK / WW125L – documented application, including UK/European catalogue entries.
- PCX125 Hybrid 2018–2020 WW125HVJ – the same part number is catalogued in Japanese-market hybrid applications.
- Some 2021–2022 WW125L market catalogues also retain 52400-K97-T01; verify country/model code before extending fitment beyond 2020.
Fitment confidence: High for European/UK 2018–2020 PCX125 applications documented with 52400-K97-T01.
Market / model-code note: The strongest UK/European evidence is 2018–2020. Later WW125L entries exist in certain markets, so they are included in the description rather than overstated in the main title.
Honda OE / Related Part Numbers
The main MPN is the shock assembly itself. The remaining numbers below are related Honda mounting components shown in the same rear-shock parts diagrams; they are not automatically included with this listing unless visible in the supplied stock.
- 52400-K97-T01 – Honda CUSHION ASSY., RR.. Main genuine Honda rear shock absorber assembly / manufacturer MPN.
- 52485-KVY-901 – Honda BUSH, RUBBER (SHOWA). Rear-shock rubber bush; related mounting component.
- 52486-GA7-003 – Honda COLLAR, RUBBER BUSH (SHOWA). Rear-shock bush collar; related mounting component.
- 94001-10000-0S – Honda NUT, HEX., 10MM. Rear-shock mounting hardware.
- 94101-10000 – Honda WASHER, PLAIN, 10MM. Rear-shock mounting hardware.
- 95801-08032-00 – Honda BOLT, FLANGE, 8X32. Rear-shock lower mounting hardware.
Compatibility Check Before Ordering
- Use 52400-K97-T01 as the primary compatibility check.
- Confirm the motorcycle model code (for example WW125AK, WW125J, WW150AJ/AK/L or WW160P) where possible.
- Honda fitment varies by country and production specification, so a matching PCX model name alone is less reliable than the genuine part number and model code.
- If replacing only one side, inspect the opposite shock for wear. Honda specifies two rear cushions on these twin-shock PCX applications.
Installation Note
Support the scooter securely before removing a rear shock. Fit and tighten the mounting hardware to the Honda workshop specification for the exact model. After installation, check suspension movement, tyre clearance and that all mounting hardware is secure.
