Yamaha YZF-R125 Front Brake Disc 2008–2013

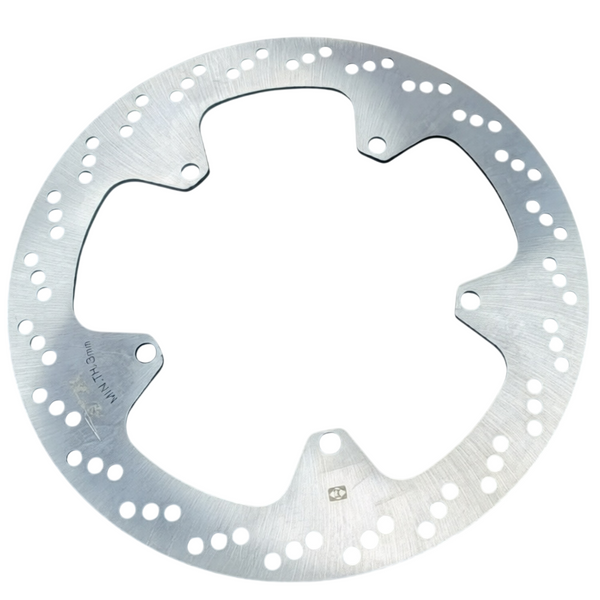

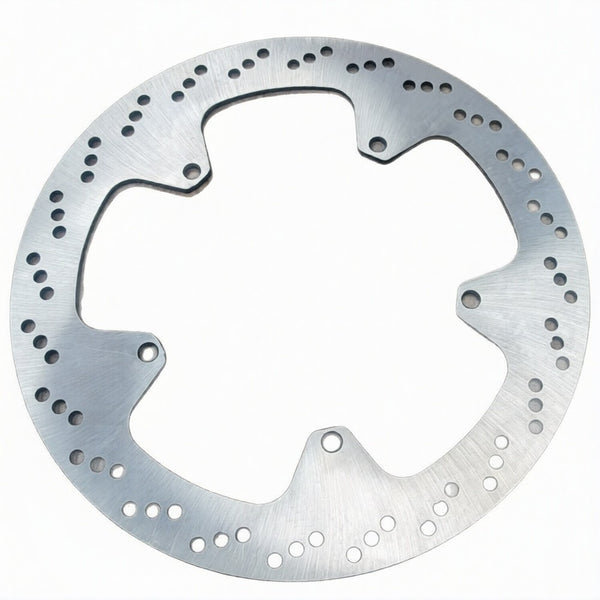

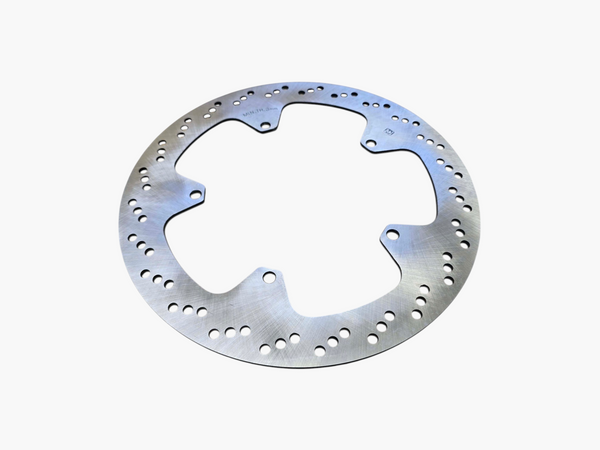

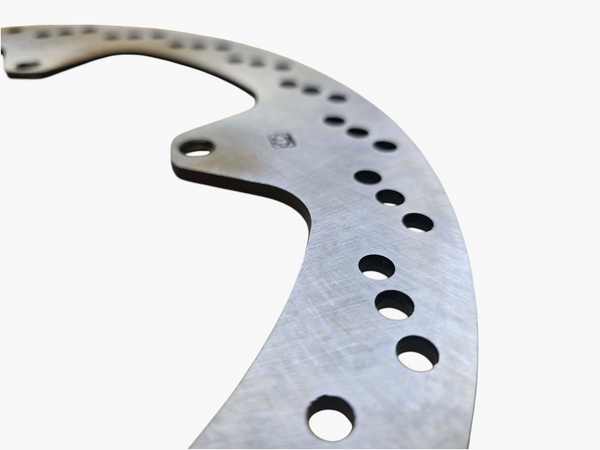

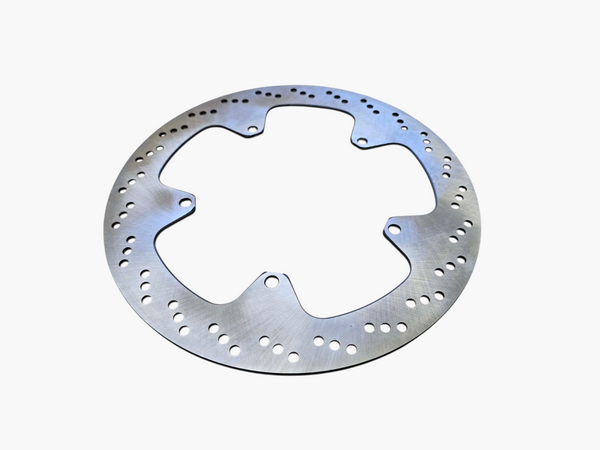

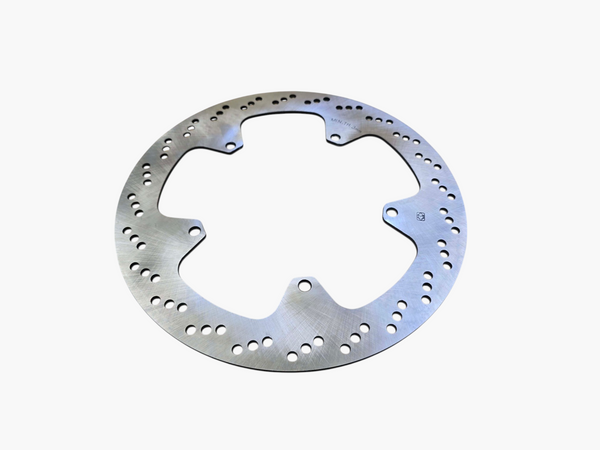

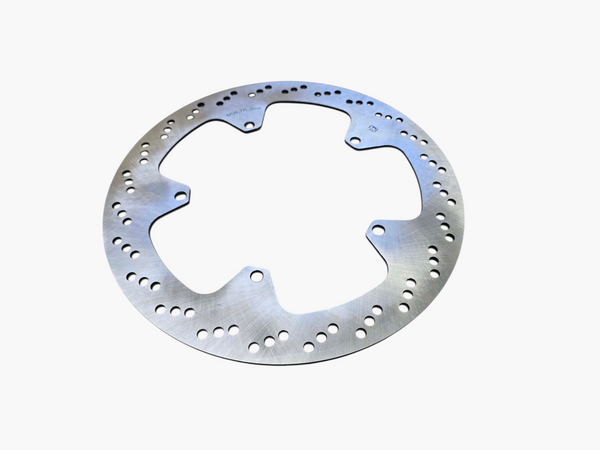

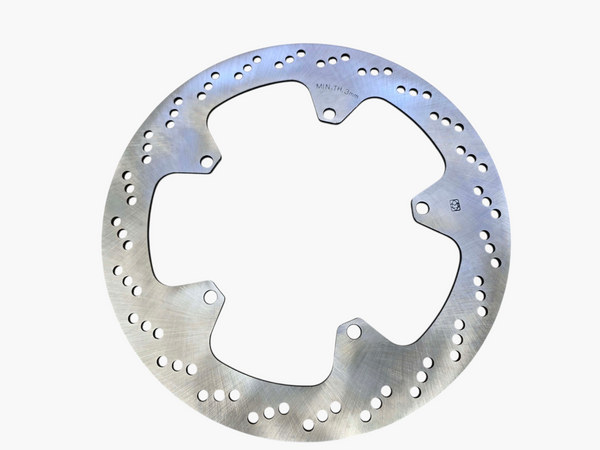

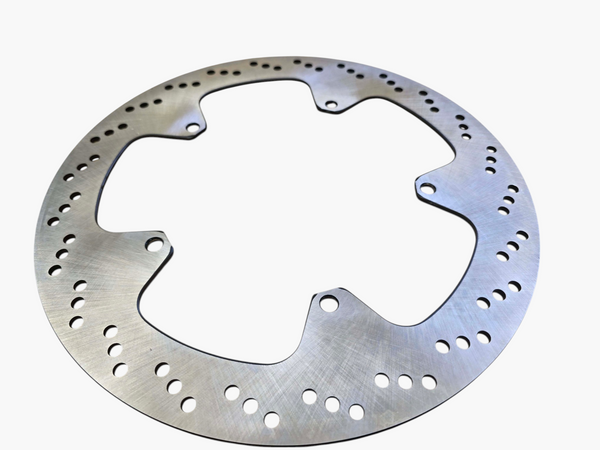

Brand new aftermarket front brake disc / rotor for Yamaha YZF-R125 models from 2008 to 2013. Supplied as pictured.
Vehicle Compatibility
| Make | Model | Years | Position |
|---|---|---|---|
| Yamaha | YZF-R125 | 2008–2013 | Front / left |
OE / Equivalent Reference Numbers
- Yamaha 5D7-F582T-00
- Yamaha 5D7F582T00
- NG Brakes 1202 equivalent
These are compatibility cross-references. The supplied brake disc is an aftermarket replacement and no manufacturer part number (MPN) is stated.
Reference Dimensions
- Outside diameter: 292 mm
- Inside diameter: 155 mm
- Thickness: 4 mm
- Mounting holes: 5
- Mounting-hole diameter: approximately 8.5 mm
Important Fitment Information
This listing is for the early fixed-disc YZF-R125 application. The 2014-on YZF-R125 uses a different front brake disc design with a different centre diameter and 6-bolt mounting pattern, so it is not included.
Compare the outside diameter, thickness, centre bore and bolt pattern with the disc currently fitted before ordering.
Safety Information
Brake discs are safety-critical components. Installation should be carried out correctly and the braking system should be inspected and tested before the motorcycle is used.
