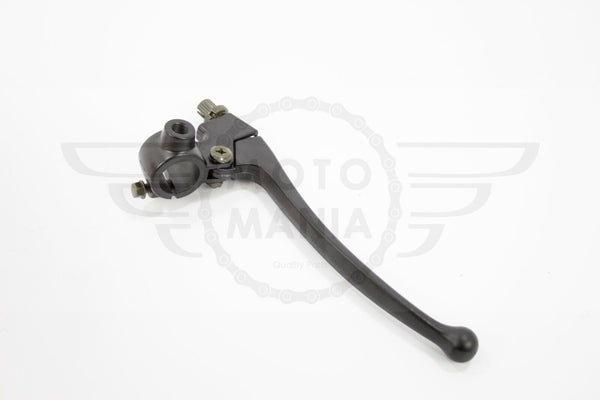

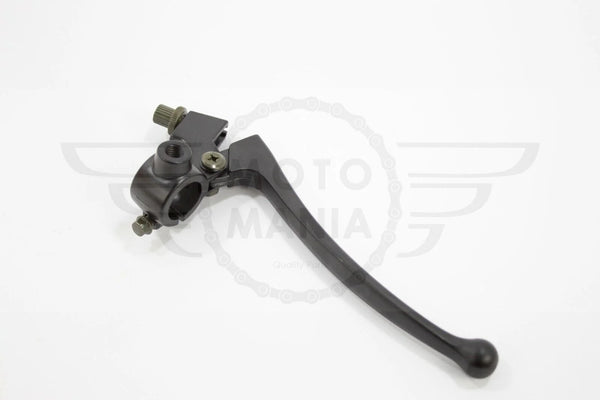

Honda CG125 Front Brake Lever – Cable / Drum Brake Type
Replacement right-hand front brake lever for Honda CG125 models using the classic cable-operated front brake arrangement.
Product Description
Brand new aftermarket right-hand front brake lever for cable-operated Honda motorcycle front brakes. The lever is the classic curved alloy type used on a range of Honda CG and related small-capacity models and is supplied with the cable adjuster screw as shown.
Key Details
- Position: Right-hand / front brake
- Brake type: Cable-operated / drum-brake lever application
- Material: Alloy lever
- Finish: Natural alloy / silver-style finish
- Includes: Cable adjuster screw as supplied
- Comparable Honda lever length: approximately 170 mm
- Comparable genuine lever weight: approximately 55 g
- Condition: Brand new aftermarket replacement
Honda OE / Reference Numbers
Honda changed the right-hand brake lever across CG125 production, so the following numbers are supplied as fitment and search references rather than one universal OE number:
- 53175-116-690 – early Honda cable-operated right-hand lever family
- 53175-KY0-980 – CG125 / H100 and related Honda right-hand lever family
- 53175-KY0-970 – later CG125 right-hand lever family
- 53175-KCH-900 – superseding / replacement number for later CG125 applications
- 53175-369-700 – another early CG/ML-family right-hand lever reference
Honda part numbers are supplied for identification only. This product is aftermarket / unbranded and is not represented as Genuine Honda.
Important Fitment Checks
- Compare the pivot-hole position and lever profile with the original part.
- Check the brake cable adjuster thread and cable-end seating arrangement.
- Confirm the motorcycle uses a cable-operated front brake lever rather than a hydraulic master-cylinder lever.
- Compare the lever reach, pivot thickness and stop-switch contact area where applicable.
- Honda used different lever and bracket combinations by year and market, so the OE reference or physical shape is the best final check.
Installation
Remove the original lever and inspect the pivot bolt, lever bracket, cable nipple and adjuster before fitting. Lightly lubricate the pivot, refit the cable correctly and set front-brake free play to the motorcycle manufacturer's specification. Confirm the brake operates smoothly and returns fully before riding.
Package Contents
1 x right-hand front brake lever with adjuster screw as shown in the product photographs.
Shipping Information
- Shopify packed shipping weight: approximately 0.12 kg
- Estimated packed dimensions: 20 x 8 x 4 cm
Compatibility
- Honda CG125 – selected early and mid-production cable-brake models
- Honda CG125 BR-K / BR-series – current aftermarket fitment includes 1989-1995 examples
- Honda CG125 S / T – 1995-1997 OE family 53175-KY0-970 / 53175-KCH-900
- Honda CG125 W / M1 – selected 1998-2003 applications using the same later cable-lever family
- Earlier CG125 applications may use 53175-116-690 / 53175-KY0-980-pattern right-hand levers
Fitment note: CG125 production used several right-hand lever revisions. Compare the original lever and Honda reference where possible. This listing is for the cable-operated lever, not the later hydraulic-disc CG125ES brake lever.
