Honda PCX125 Front Brake Disc, Pads & Rear Shoes 2021–2023
Aftermarket brake-service kit intended for compatible Honda PCX125 models with the matching five-hole front disc, FA465-profile front pads and H352-profile rear brake shoes. Match the front rotor and ABS/CBS configuration before ordering.
Product Overview

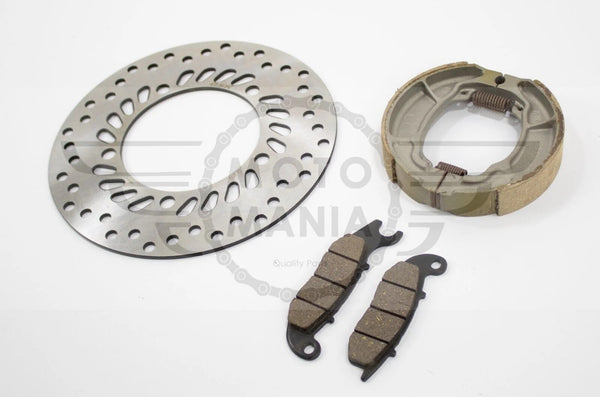

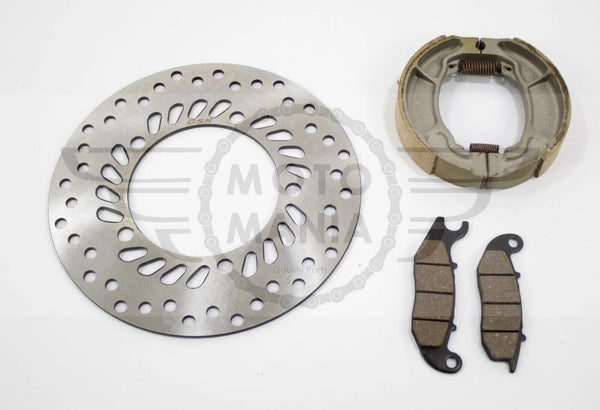

A combined replacement set for the front disc brake and rear drum brake: one front rotor, one pair of front pads and one pair of rear shoes.
Reference Dimensions
| Component | Reference specification |
|---|---|

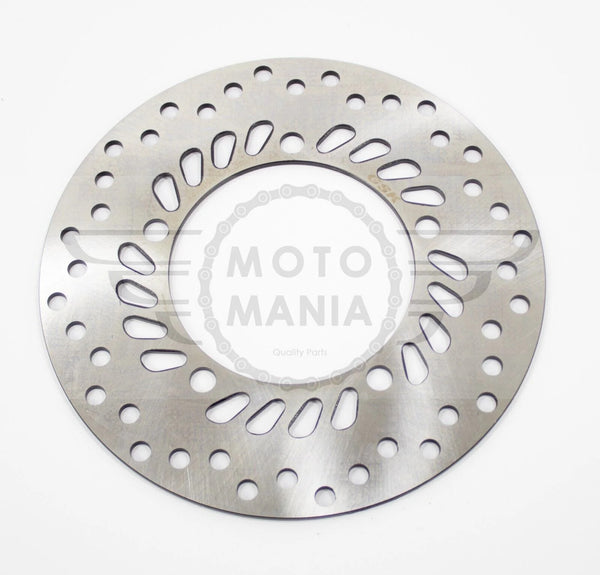

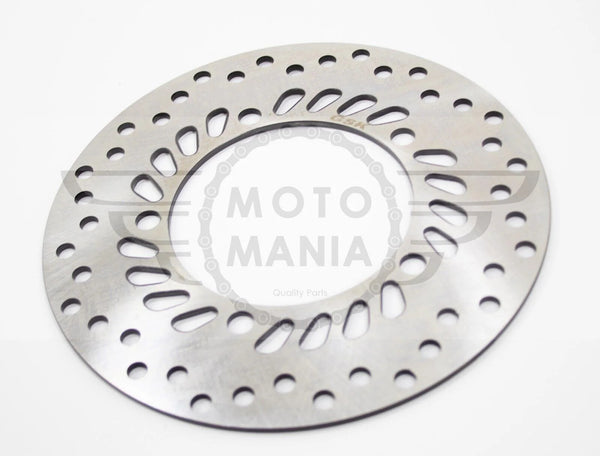

| Front brake disc (2021–2023 generation) | 220 mm outside diameter; approximately 105 mm centre bore; five mounting holes, approximately 10–10.6 mm diameter |
| Front pad profile A | Approximately 111 × 36 mm |
| Front pad profile B | Approximately 98.5 × 33 mm |
| Rear drum shoes | Approximately 130 mm drum diameter × 25 mm shoe width |
These are fitment-reference measurements for the listed part families; compare all supplied components with the existing parts before fitting.
Vehicle Compatibility
| Make | Model | Years | Front brake | Rear brake | Important check |
|---|---|---|---|---|---|
| Honda | PCX125, applicable 2021–2023 variants | 2021–2023 | 220 mm, five-hole disc with compatible front pads | 130 mm drum, H352 shoe family | Confirm the exact disc/ABS ring arrangement against the fitted scooter |
OE and Aftermarket Identification References
2021-on front disc family: Honda 45351-K29-V81 and 45351-K1Y-J51 appear on different applicable variants. These are not interchangeable reference claims for this kit; check the exact fitted front disc, including ABS-ring arrangement where present.
Front brake-pad family: EBC FA465 / FA693; Ferodo FDB2242; Galfer FD409; SBS 859; Vesrah VD-181. Honda front-pad references vary by version, including 06451-KZZ-902 and 06455-K84-902 on applicable later models.
Rear brake-shoe family: Honda 06430-KWN-900; EBC H352. Related Honda shoe references can vary with supplier and market.
All part numbers are supplied for identification only. No Genuine Honda or named aftermarket-brand status is claimed for the supplied components.
What's Included
- 1 × front brake disc
- 1 × pair of front brake pads
- 1 × pair of rear brake shoes
Important Fitment Information
Not a blanket 2020–2023 application. The earlier 2020 front-disc family uses a different mounting arrangement. Do not order solely by registration year: match the disc, caliper pad shape and rear drum-shoe pattern.
Some later PCX125 variants have different front-disc/ABS ring arrangements. If the original disc or ABS arrangement differs from the supplied component, do not fit the kit.
Installation
Braking parts are safety-critical. Installation and final inspection should be undertaken by a competent person or qualified motorcycle technician, with both braking systems tested before road use.
