Suzuki EN125 EN125-2A Front Brake Disc 240mm 2003–2010
Product overview

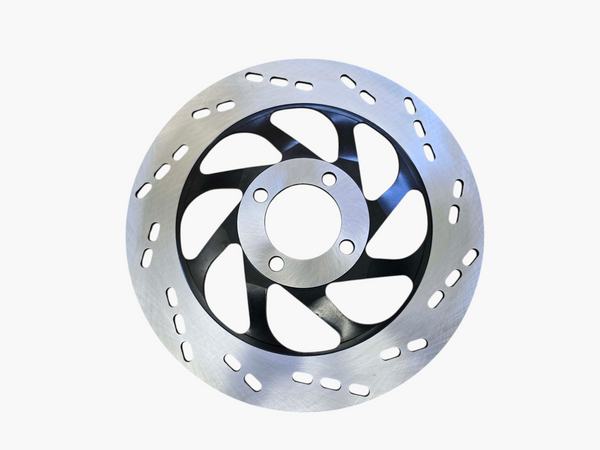

Aftermarket replacement front brake disc for Suzuki EN125 and EN125-2A motorcycles using the 59211-05500-000 four-hole rotor family.
Reference dimensions
- Outside diameter: approximately 240 mm
- Centre bore: approximately 50 mm
- Mounting: four holes
- Mounting-hole diameter: approximately 8.3–8.5 mm on catalogued replacement profiles
Published measurements for the mounting bolt circle are inconsistent between aftermarket suppliers. Check the hole centres, disc offset and the existing hub against the product photographs before ordering; do not use diameter alone to confirm fitment.
Vehicle compatibility
| Make | Model / variant | Years | Brake position | Fitment notes |
|---|---|---|---|---|
| Suzuki | EN125 / EN125-2A | 2003–2009 | Front | Original Suzuki parts fiches identify disc 59211-05500-000. |
| Suzuki | EN125-2A, relevant cast/spoked-wheel versions | 2010 | Front | Aftermarket application listing; confirm the four-hole 240 mm setup before ordering. |
OE / reference numbers
- Suzuki: 59211-05500-000
- Number without the suffix: 59211-05500
- Compact search number: 5921105500000
The Suzuki numbers are compatibility references for the EN125 disc family, not a manufacturer part number for the supplied aftermarket rotor.
Important fitment information
Model/year restriction: This listing covers the documented 2003–2010 family, not an unqualified “all years” claim. Other EN125 market variants should be checked against the original Suzuki disc reference and the physical hub.
Condition and contents

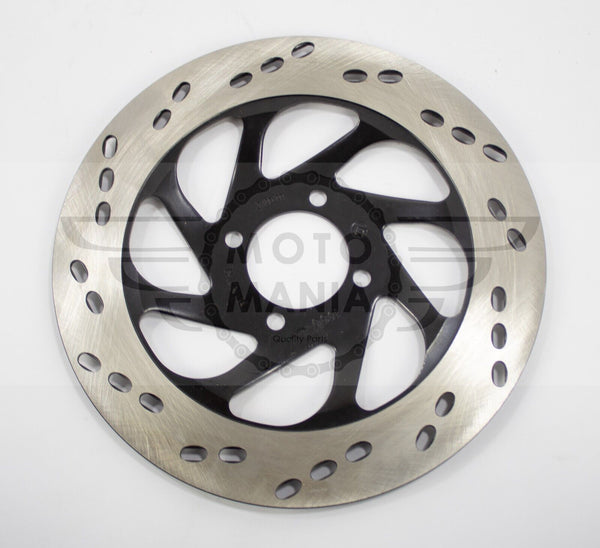

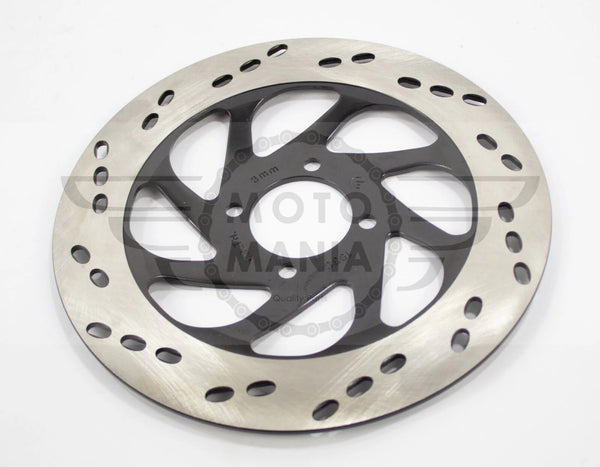

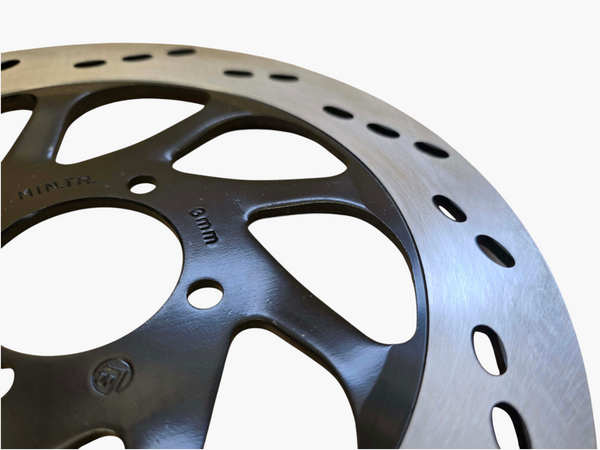

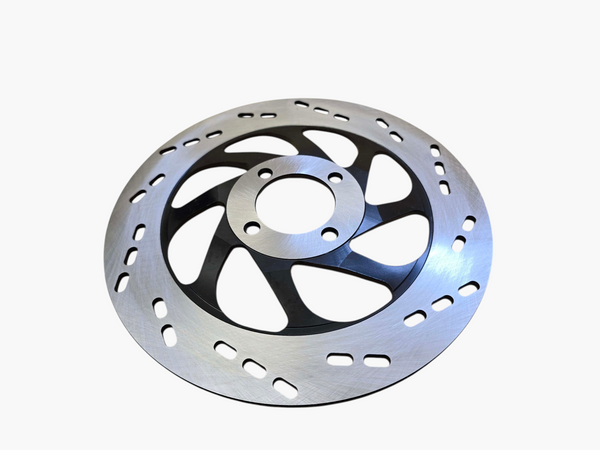

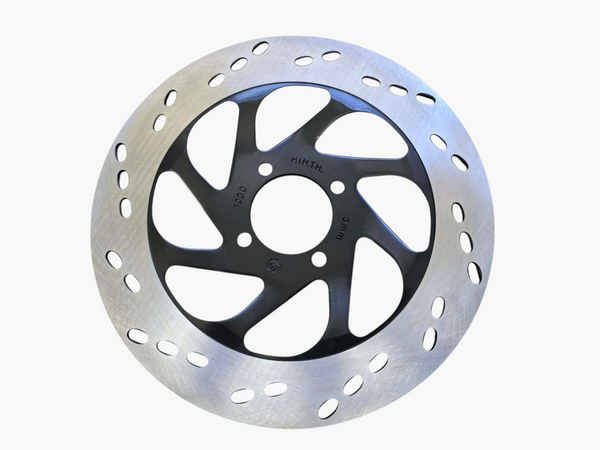

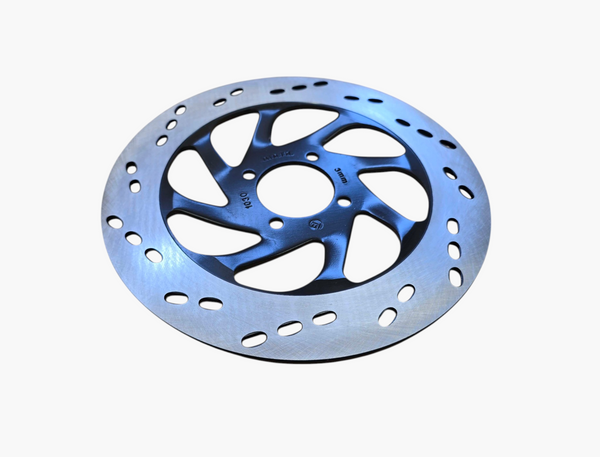

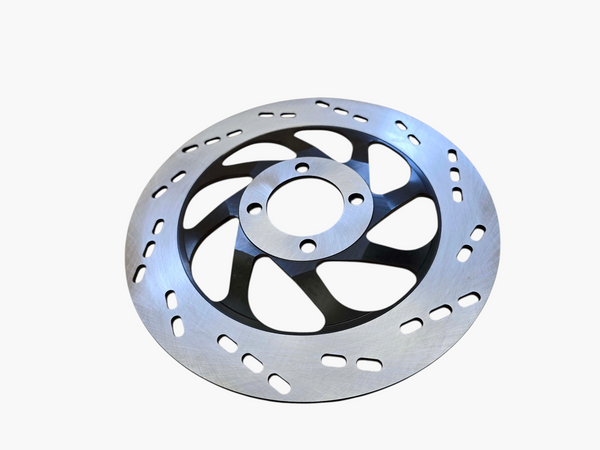

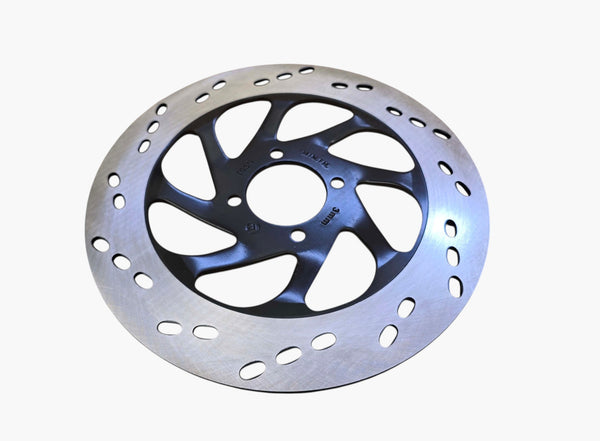

Brand-new aftermarket replacement. Supplied: one front brake disc, as shown in the product photographs. Brake pads, mounting bolts and other fittings are not included unless shown and expressly confirmed.
Installation and fitment check
Compare the disc currently fitted with the outside diameter, centre bore, four-hole mounting arrangement and offset before ordering. A motorcycle mechanic should inspect the hub and braking system and install and test the disc before use.
