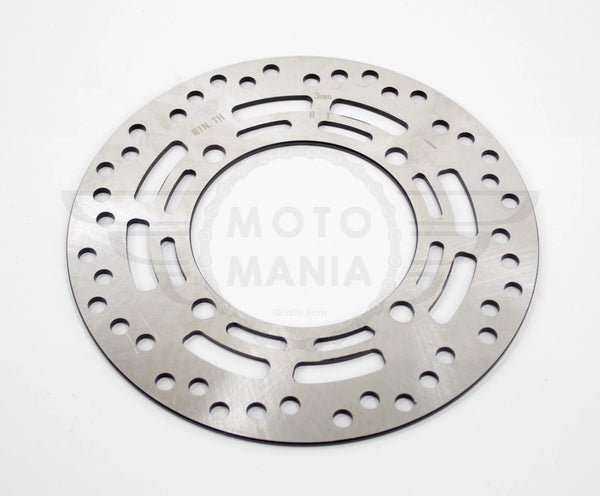

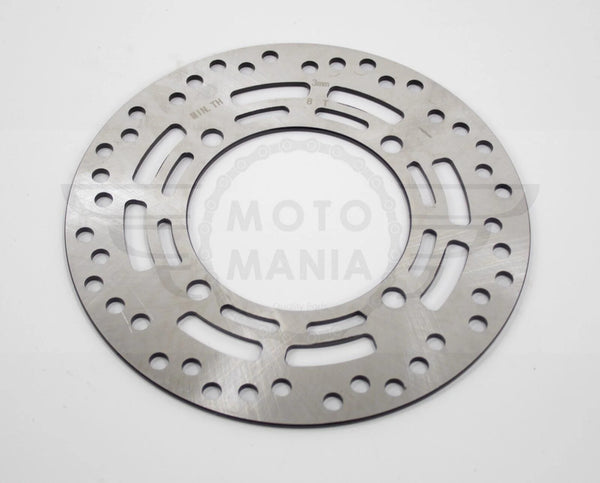

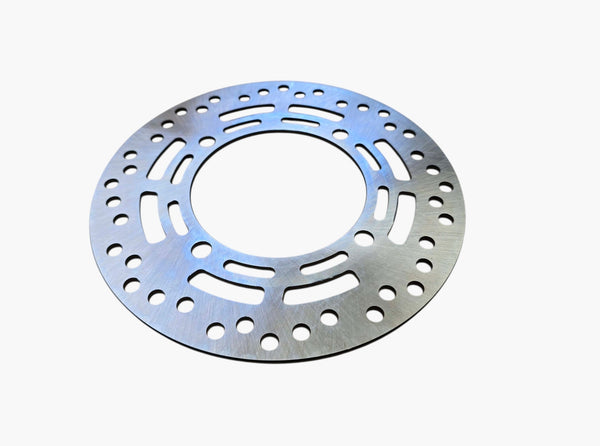

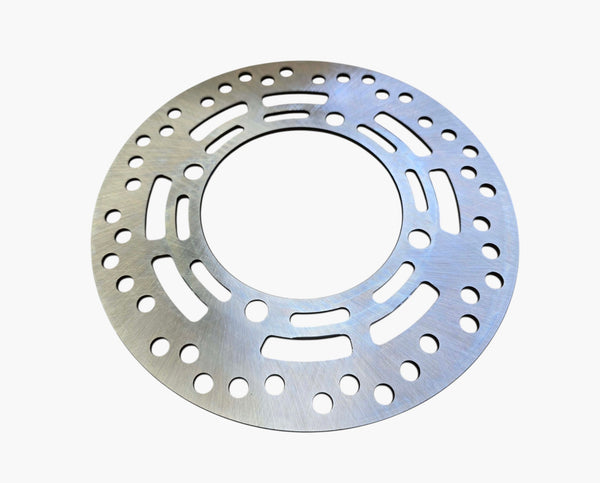

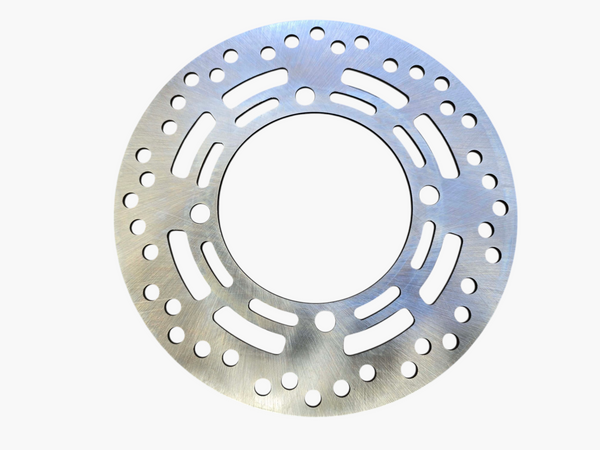

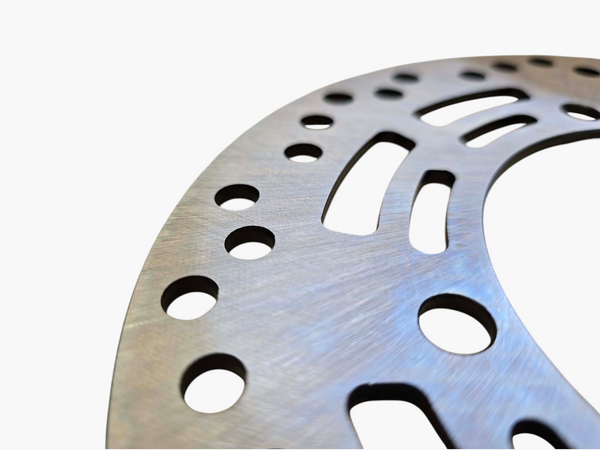

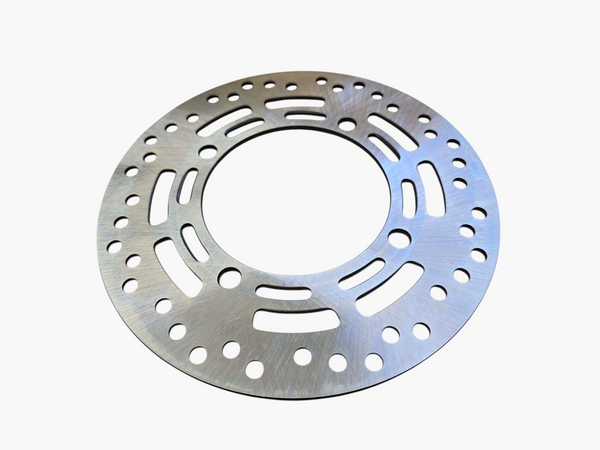

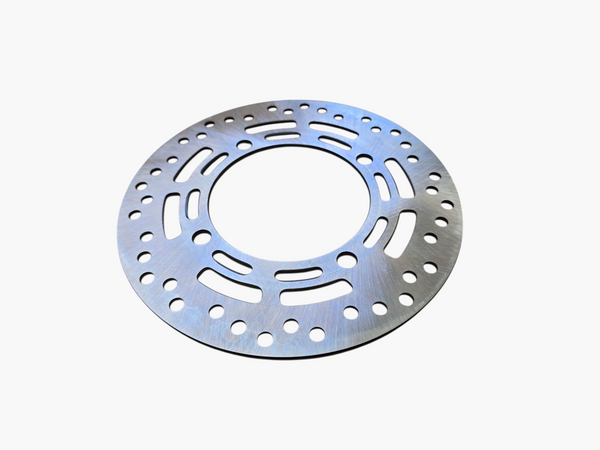

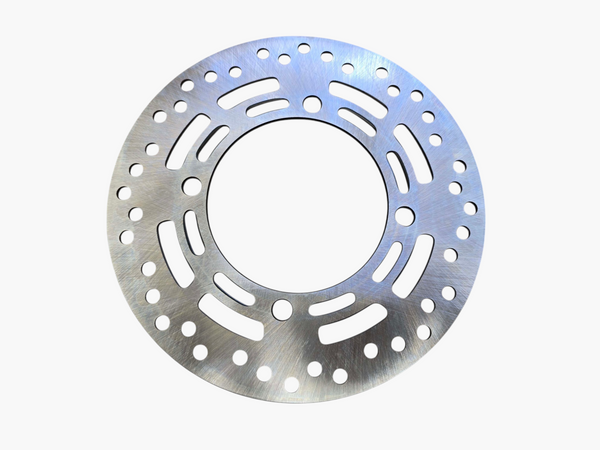

Honda PCX125 ABS Front Brake Disc 2018–2020 – 220mm
New aftermarket front brake disc for European and UK Honda PCX125 ABS / WW125AK models from 2018 to 2020. This is the four-hole 220 mm disc used with Honda front-disc reference 45351-K96-D01.
Key Details
- Product: Front brake disc / rotor
- Position: Front
- Outside diameter: 220 mm
- Centre bore: approximately 105–105.5 mm
- Disc thickness: approximately 3.5 mm
- Mounting holes: 4
- Mounting-hole diameter: approximately 10.5–10.6 mm
- Bolt PCD: approximately 125 mm
- Disc type: Fixed / solid
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Model Code | Years | Position |
|---|---|---|---|---|
| Honda | PCX125 ABS | WW125AK | 2018–2020 | Front |
OE / Cross-Reference Numbers
- Honda: 45351-K96-D01 / 45351K96D01
- Galfer: DF144V
- NG: 1804
- MTX: MDS01122
- RB Max: 282022L
Reference numbers are provided for compatibility identification only. The supplied disc is an unbranded aftermarket replacement and is not described as Genuine Honda, Galfer, NG, MTX or RB Max.
What's Included
- 1 × front brake disc / rotor
Important Fitment Information
This disc is not the correct 2021-on PCX125 front disc. Honda changed the front rotor on the 2021-generation PCX125 to a different five-hole disc, reference 45351-K29-V81. Before ordering, compare the original disc against the 220 mm diameter, approximately 105 mm centre bore, four mounting holes and 125 mm PCD shown above.
Condition
New. Unused aftermarket replacement front brake disc.
