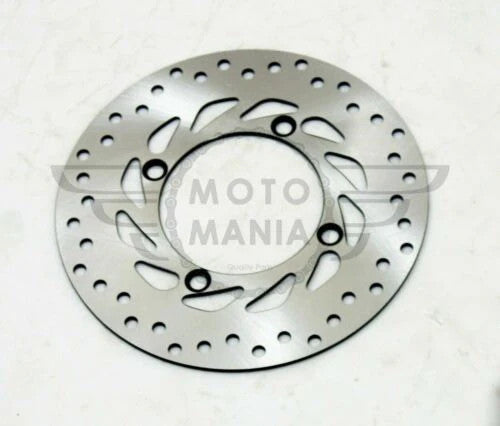

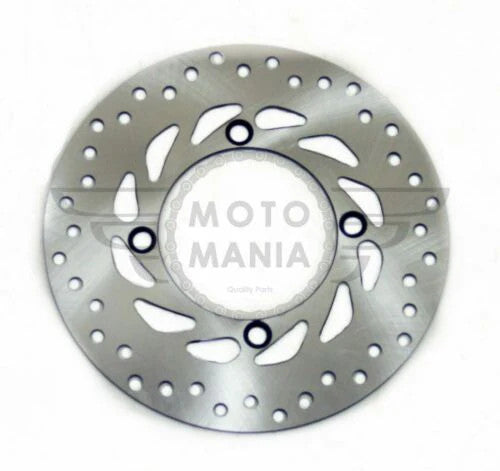

Honda NSS250 Jazz / Reflex / Forza & PS250 Front Brake Disc – 240mm
New aftermarket front brake disc for selected Honda NSS250 Jazz, Reflex and Forza variants plus the PS250 Big Ruckus. This disc matches the 240 mm four-bolt pattern cross-referenced as EBC MD922D / VR922.
Key Details
- Product: Front brake disc / rotor
- Outside diameter: 240 mm
- Centre bore: 105.2 mm
- PCD: 125 mm
- Mounting: 4 × 10.5 mm holes
- Thickness: 4 mm
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Years | Position | Notes |
|---|---|---|---|---|
| Honda | NSS250 Jazz / Reflex / Forza MF04/MF06 | 2000–2004 | Front | Includes selected ABS/non-ABS variants |
| Honda | NSS250 Forza X / EX / Z | 2005–2008 | Front | Selected variants using the MD922D / VR922 disc shape |
| Honda | PS250 Big Ruckus | 2005–2006 | Front | Direct Honda OE application |
OE / OEM / Reference Numbers
- Honda primary reference: 45351-KFG-003 / 45351KFG003
- Superseded Honda reference: 45351-KFG-000 / 45351KFG000
Honda reference 45351-KFG-003 is directly catalogued on NSS250 and PS250 front-wheel applications. Other models using the same aftermarket disc shape can carry different Honda OE numbers.
Aftermarket Cross-References
- EBC: MD922D / VR922
- NG: 364
- PFP: PFDR07
Cross-reference numbers are provided for compatibility identification only. The disc supplied is an unbranded aftermarket replacement and is not described as being manufactured by EBC, NG or PFP.
Technical Specifications
| Outside diameter | 240 mm |
|---|---|
| Centre bore | 105.2 mm |
| PCD / bolt circle | 125 mm |
| Mounting holes | 4 |
| Mounting-hole diameter | 10.5 mm |
| Disc thickness | 4 mm |
| Disc type | Fixed / rigid |
| Position | Front |
What's Included
- 1 × front brake disc / rotor
Additional Honda SH125i Application
The same 240 mm MD922D / VR922 front-disc profile is also catalogued for selected Honda SH125i applications, including 2009–2012 models, SH125i RA 2010–2014, SH125i 2014–2016 and SH125i ADL 2014–2024. Earlier SH125i 2004–2008 models use a different MD970D / VR970 disc.
Important Fitment Information
Match the original disc before ordering. Honda used different brake discs on some markets and later variants, so the model name alone should not be used as the only fitment check. Compare the 240 mm outside diameter, 105.2 mm centre bore, 125 mm PCD and four 10.5 mm mounting holes with the disc currently fitted.
Condition
New. Unused aftermarket replacement brake disc.
