Honda PCX125 Front Brake Disc & Pad Kit – 2021–2023
New, unbranded aftermarket front brake service kit for selected Honda PCX125 ABS models using the five-hole 220 mm front disc and Honda 06451-KZZ-902-type front pads. The Honda disc application reference is 45351-K29-V81. Both references must match the original brake arrangement.
Key Details
- Position: Front

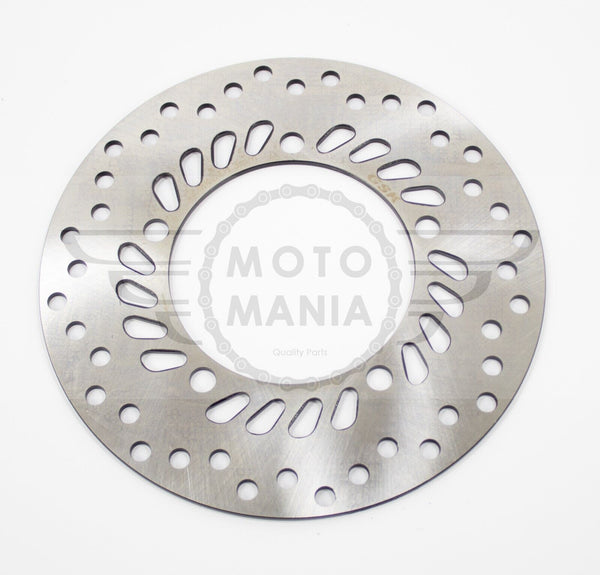

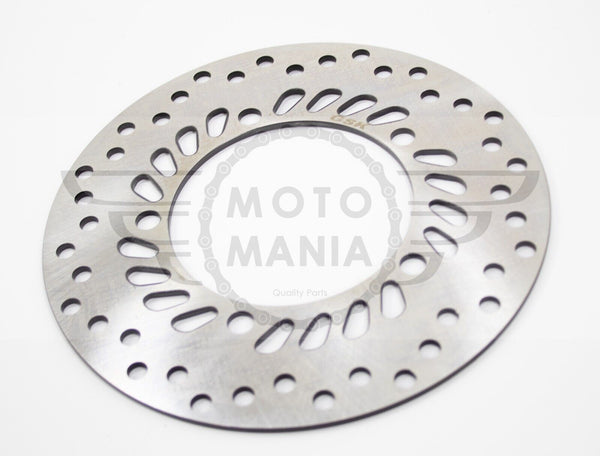

- Disc: 220 mm outside diameter, approximately 105 mm centre bore, 3.5 mm nominal thickness
- Disc fixing: Five straight mounting holes, approximately 10–10.6 mm diameter
- Disc type: Fixed / rigid replacement profile
- Front pads: 06451-KZZ-902 application; SFA693 / SBS 859 pad-shape family
- Condition: New aftermarket replacements
Vehicle Compatibility
| Make | Model / variant | Years | Conditions |
|---|---|---|---|
| Honda | PCX125 / WW125AM (UK/Europe) | 2021–2022 | Honda 45351-K29-V81 front disc and 06451-KZZ-902 front pads |
| Honda | PCX125 ABS / selected WW125AP | 2023 | Only where the original front disc and pad references, mounting and pad shapes match |
OE / Aftermarket Identification References
- Honda front disc: 45351-K29-V81 / 45351K29V81
- Honda front pads: 06451-KZZ-902 / 06451KZZ902
- Honda earlier front pad reference: 06451-KZZ-901 (superseded by 06451-KZZ-902)
- Comparable disc reference: RB Max 282022J
- Pad-shape references: EBC SFA693; SBS 859
These are compatibility references only. The supplied disc and pads are unbranded aftermarket products, not genuine Honda, RB Max, EBC or SBS components.
Pad Reference Dimensions
- Pad A: approximately 110.5 × 34.5 × 7.5 mm
- Pad B: approximately 98.5 × 33.5 × 7.5 mm
Pad measurements are published catalogue references for the SFA693 profile, not physical measurements of this unbranded stock.
What's Included

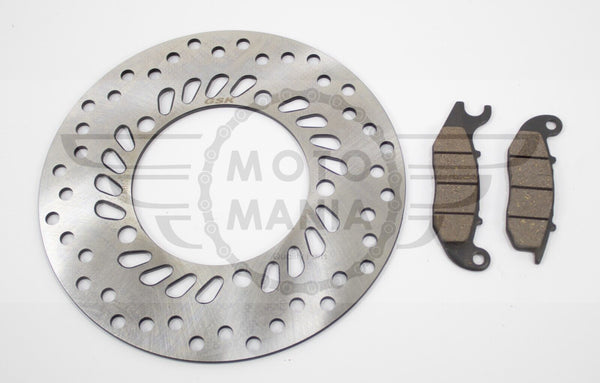

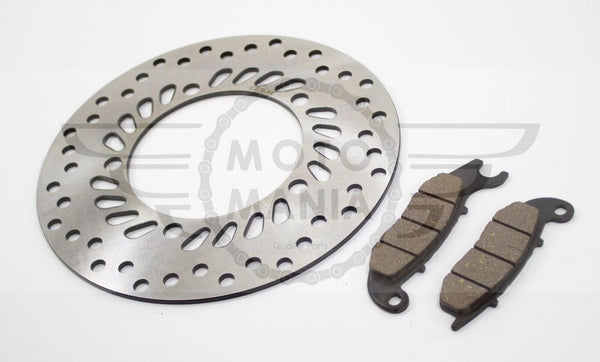

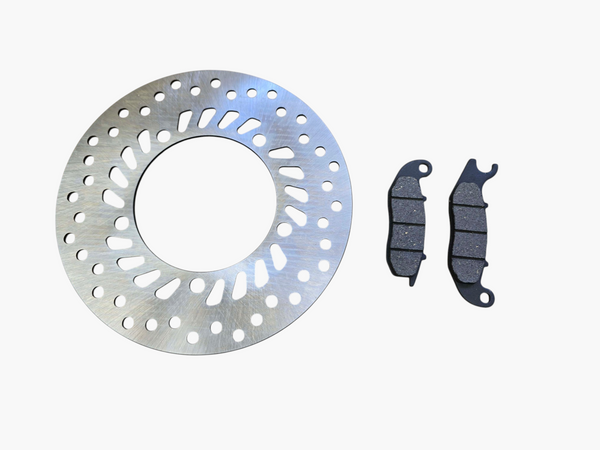

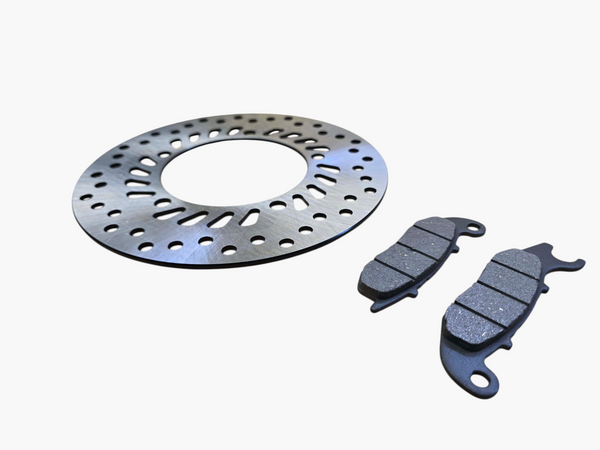

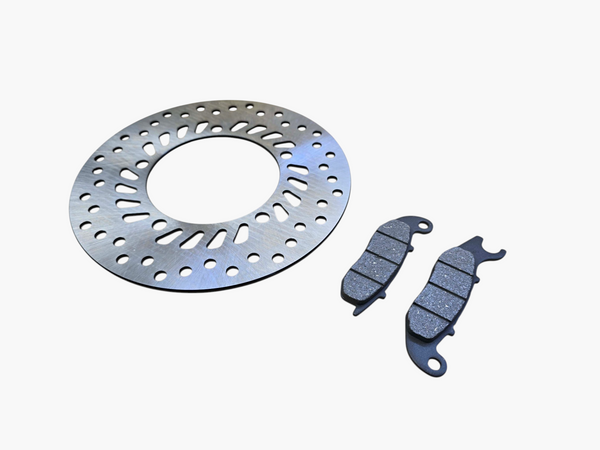

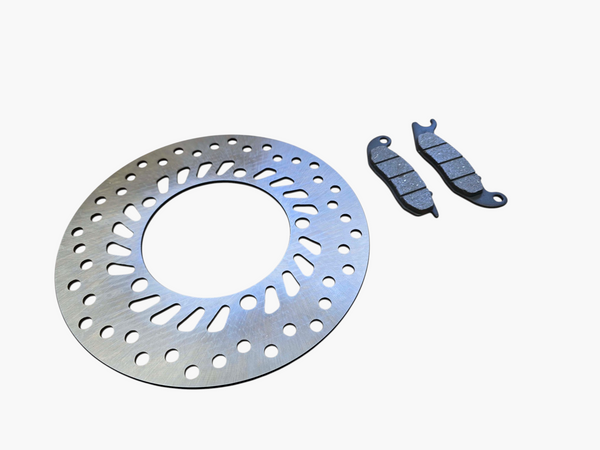

- 1 × front brake disc
- 1 × front brake pad set (2 pads) for one front caliper
Important Fitment Check
The disc and pads listed do not imply that an ABS sensor ring or mounting hardware is included.
Condition
New, unused aftermarket replacement parts.
