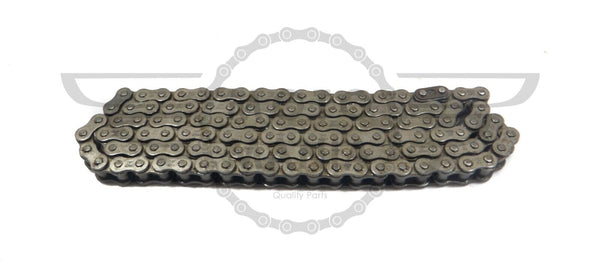

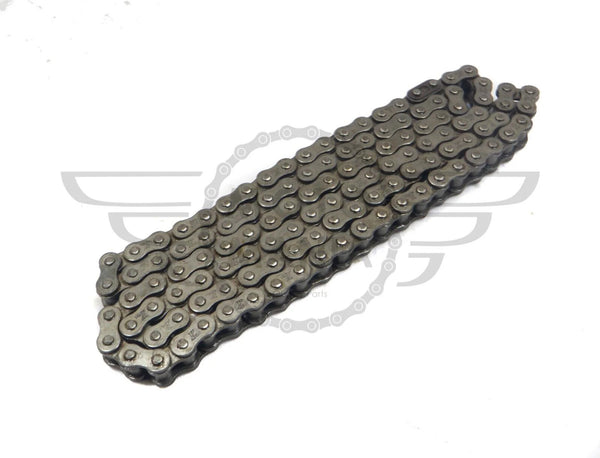

Yamaha 428H Drive Chain – 124 Links
Replacement 428 pitch, 124-link drive chain for specific Yamaha applications listed in the CHN072 fitment catalogue.
Researched Applications
- Yamaha DT200 – 1988–1995
- Yamaha TW125 Trailway – 2004
- Yamaha YZ80 LW – 2000
- Yamaha YZ85 LW – 2005 and 2011–2014
- Yamaha YZ125 – 1983 only in this cross-reference
Important: do not assume other YZ125 years fit. Modern YZ125 models use a 520-pitch chain, not this 428/124 size.
Key Details
- Pitch: 428 / 428H class
- Length: 124 links
- Type: Non-sealed replacement drive chain
- SKU: 01833-DNT
Cross-Reference Numbers
- CHN072 – CMPO/Lextek 428-124 gold chain cross-reference
- 110100054 – reference OE/OEM number shown for CHN072
- EAN 5057645020851 – CHN072 catalogue barcode reference
- D.I.D. 428HD 124RB / 428D 124RB – size-equivalent references only; this unbranded product is not advertised as D.I.D.
Compatibility Check
Model and year information is a fitment guide. Confirm the motorcycle requires a 428 pitch, 124-link chain and check the sprocket sizes currently fitted. Previous gearing changes can alter the required chain length.
