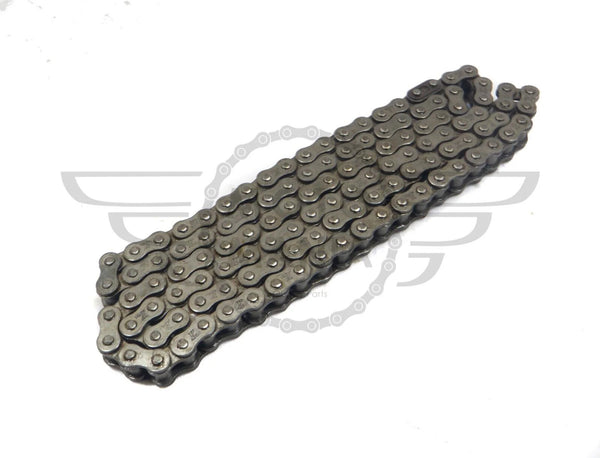

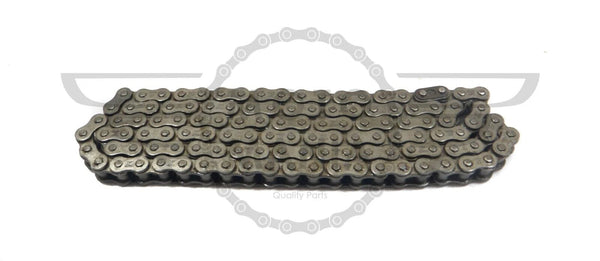

Kawasaki KLX125 / KMX125 428H Drive Chain – 124 Links
Replacement 428 pitch, 124-link chain for selected Kawasaki trail and lightweight motorcycles.
Researched Applications
- Kawasaki KLX125 – 2010–2013 in the CHN072 catalogue
- Kawasaki KMX125 – 1986–2002 in the CHN072 catalogue
Other chain catalogues also show 428/124 on some later KLX125 applications, but check the exact year and gearing before ordering.
Key Details
- Pitch: 428 / 428H class
- Length: 124 links
- Type: Non-sealed replacement drive chain
- SKU: 01833-DNT
Cross-Reference Numbers
- CHN072 – CMPO/Lextek 428-124 gold chain cross-reference
- 110100054 – reference OE/OEM number shown for CHN072
- EAN 5057645020851 – CHN072 catalogue barcode reference
- D.I.D. 428HD 124RB / 428D 124RB – size-equivalent references only; this unbranded product is not advertised as D.I.D.
Compatibility Check
Model and year information is a fitment guide. Confirm the motorcycle requires a 428 pitch, 124-link chain and check the sprocket sizes currently fitted. Previous gearing changes can alter the required chain length.
