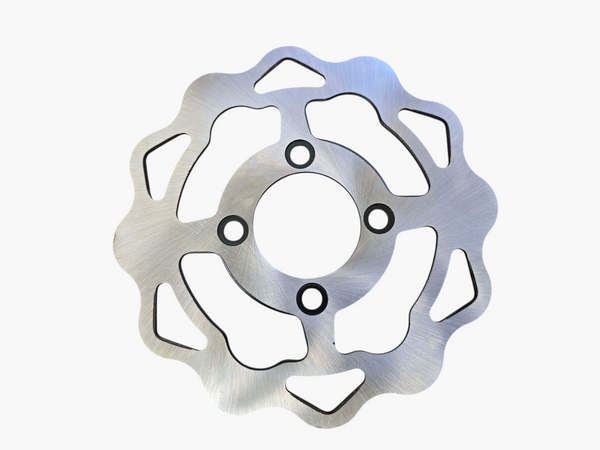

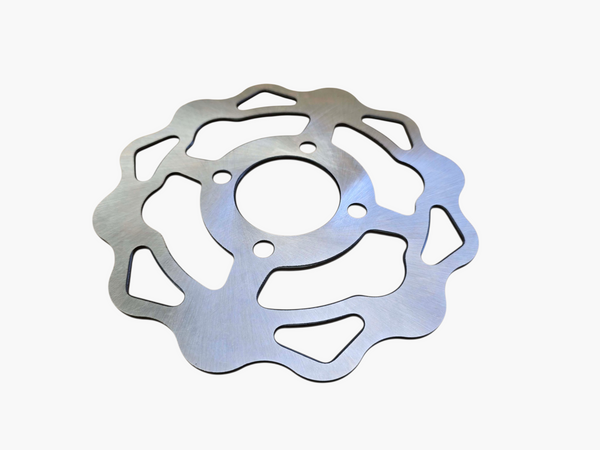

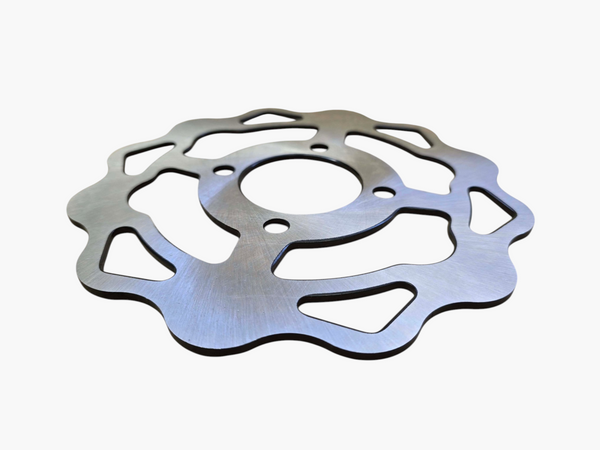

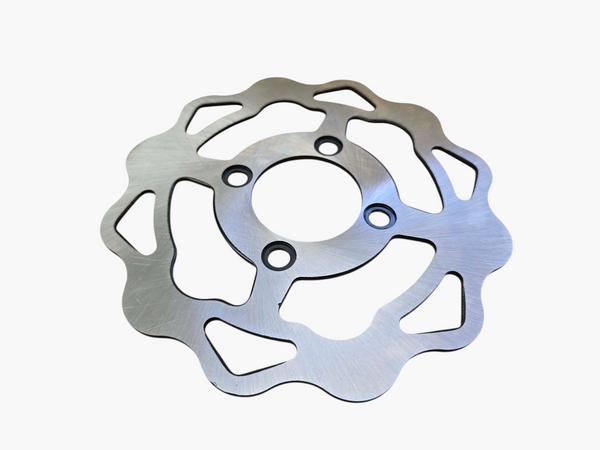

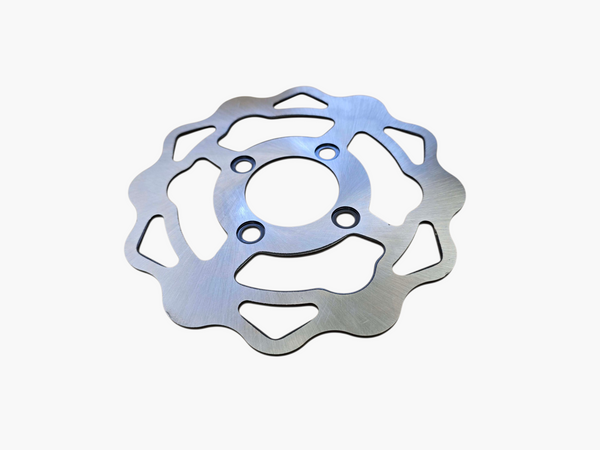

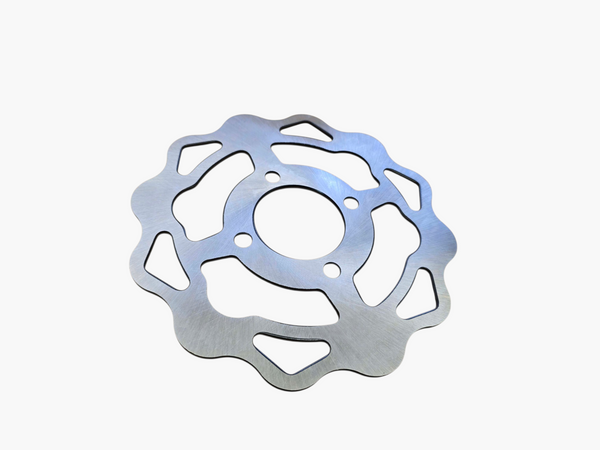

Direct Bikes 125cc Enduro S E3 Rear Brake Disc – 209/210mm
New aftermarket rear brake disc for Direct Bikes 125cc Enduro S E3 model DB125GY-2B, cross-referenced to the BRDR047 209–210 mm rear disc.
Key Details
- Vehicle: Direct Bikes 125cc Enduro S E3
- Model code: DB125GY-2B
- Position: Rear
- Outside diameter: 209–210 mm
- Centre bore: 58 mm
- Thickness: 4 mm
- Mounting: 4 × countersunk 10 mm holes
- Fixing-hole centre distance: 80 mm
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Model Code | Position |
|---|---|---|---|
| Direct Bikes | 125cc Enduro S E3 | DB125GY-2B | Rear |
Reference Numbers
- Reference OE/OEM: 100400041
- CMPO: BRDR047
- Wemoto: AC2404
- Aftermarket cross-reference: 309-12Y2-002
Reference numbers are provided for compatibility identification. The disc supplied is an unbranded aftermarket replacement and is not described as being manufactured by CMPO, Wemoto or the motorcycle manufacturer.
Specifications
| Outside diameter | 209–210 mm |
|---|---|
| Centre bore | 58 mm |
| Thickness | 4 mm |
| Minimum thickness | 3 mm |
| Mounting holes | 4 |
| Mounting-hole diameter | 10 mm |
| Fixing-hole centre distance | 80 mm |
| Mounting-hole type | Countersunk |
| Disc form | Flat |
What's Included
- 1 × rear brake disc
Important Fitment Information
Measure the original rear disc before ordering. Only use this listing where the motorcycle has the matching 209–210 mm rear-disc specification. This listing is specifically for the 209–210 mm disc with a 58 mm centre bore, 4 mm thickness and four countersunk 10 mm mounting holes.
Condition
New. Unused aftermarket replacement rear brake disc.
