Cylinder Barrel Piston Kit 52.4mm Quad ATV Pitbike Lifan GN110
Brand new aftermarket replacement cylinder barrel and piston kit for selected Lifan / GN110 / BD110 style horizontal 110cc pit bike, quad and ATV engines.
This kit is designed for engines using a 52.4 mm bore and 13 mm gudgeon pin. It is suitable for top-end rebuilding, replacing a worn cylinder or piston, or restoring compression on a compatible engine.

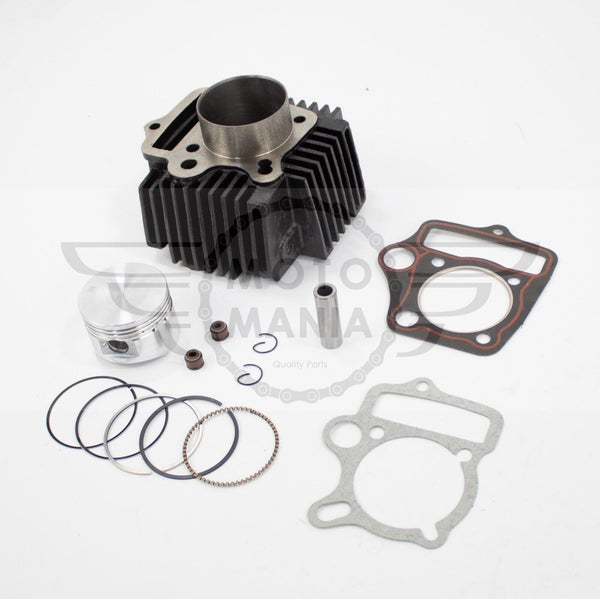

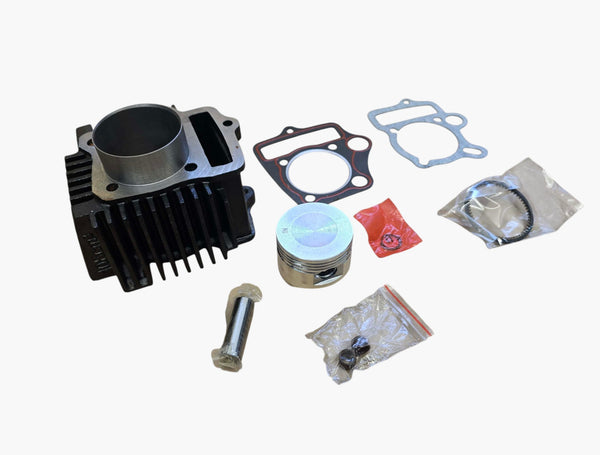

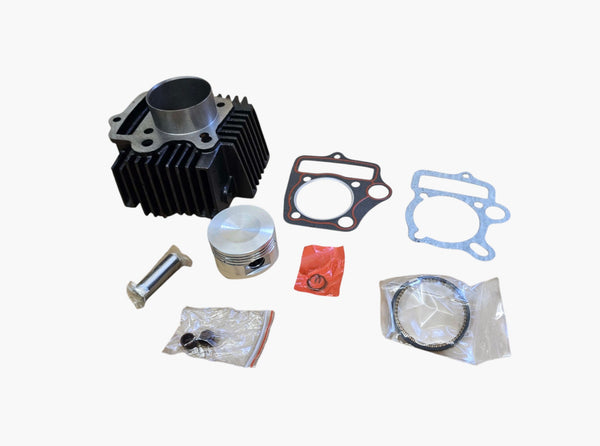

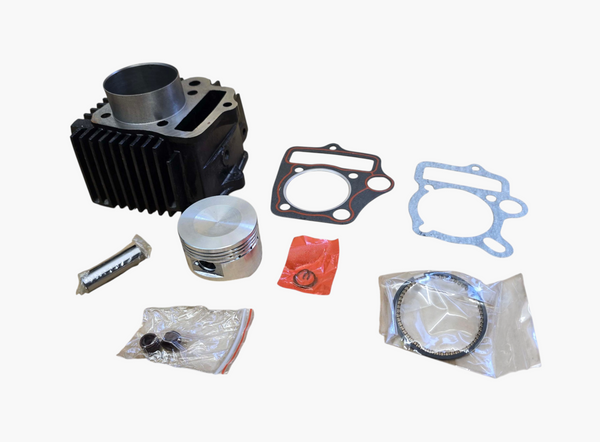

What's Included

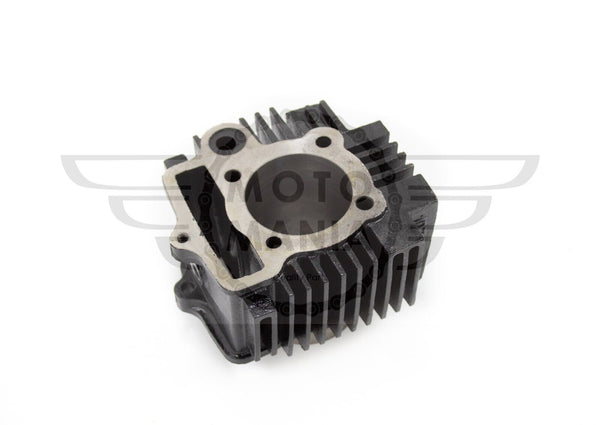

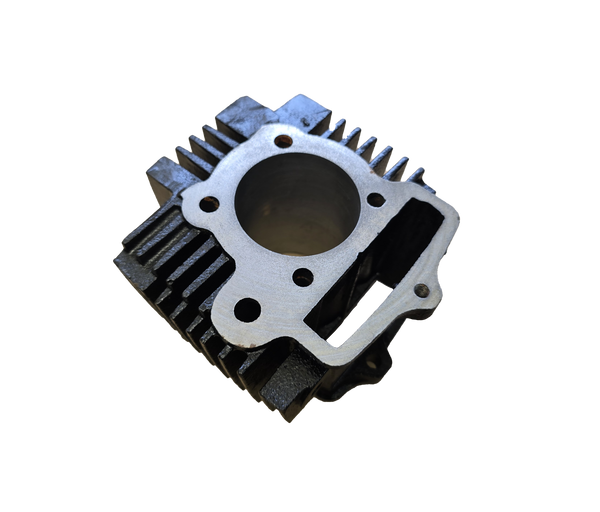

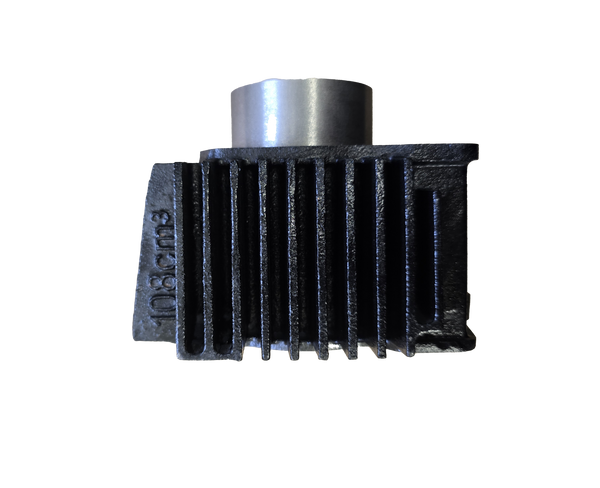

- 1 x 52.4 mm cylinder barrel

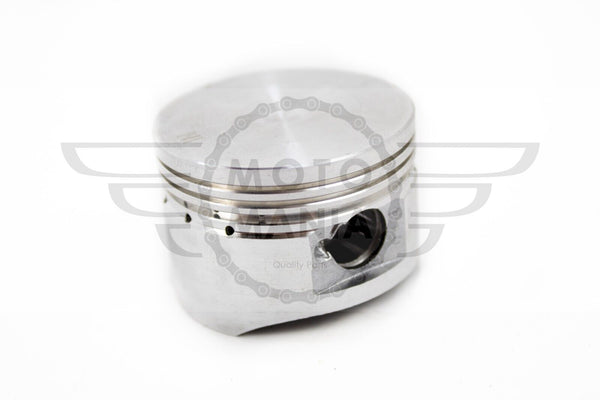

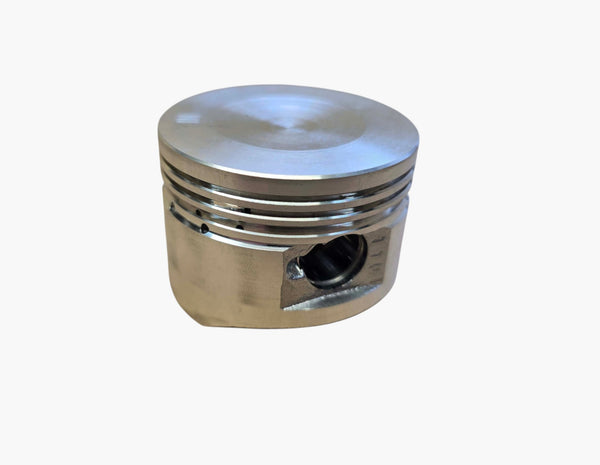

- 1 x piston
- 1 x piston ring set
- 1 x 13 mm gudgeon / wrist pin
- 2 x piston pin circlips
- 1 x head gasket
- 1 x base gasket
Typical Applications
- Lifan-style 110cc horizontal engines
- GN110 engines
- BD110 engines
- 110cc pit bikes
- 110cc quad / ATV applications
- Selected Stomp and Demon X 110 models using the matching engine
Key Specifications
- Bore: 52.4 mm
- Gudgeon pin: 13 mm
- Engine type: Horizontal 4-stroke
- Nominal capacity: 110cc
- Condition: Brand New
- Type: Aftermarket replacement
Important Fitment Information
Chinese pit bike and ATV engines can use different cylinder, piston, pin and oil-way configurations even when the engine capacity is the same.
Please dismantle and check your existing components before ordering. Confirm the 52.4 mm bore, 13 mm gudgeon pin, cylinder height, crankcase opening, stud spacing and gasket / oil-way arrangement.
This kit should not be selected by vehicle badge or engine capacity alone. Some 110cc and 125cc engines use different bore sizes or 14 mm piston pins.
Ideal For
- Top-end engine rebuilds
- Replacing a worn cylinder barrel
- Replacing a damaged or worn piston
- Restoring compression
- Pit bike and ATV refurbishment
- Engine recommissioning
Condition
Brand New
Aftermarket replacement engine components.
Installation
Correct piston ring orientation, circlip installation, gasket fitment and engine timing are essential. Installation by a competent motorcycle or small-engine mechanic is recommended if you are unsure of the correct procedure.
