Yamaha YBR125 XT125 & Lexmoto 125 5-Plate Clutch Assembly
Brand new aftermarket replacement 5-friction-plate, 4-spring clutch drum / centre assembly for compatible Yamaha and Lexmoto 125cc motorcycles using the same clutch configuration.
Product Overview
This complete clutch assembly uses five friction plates, four steel plates and four clutch springs. It is suitable for the Yamaha applications listed below and selected Lexmoto models using the compatible 156FMI / 157FMI 4-spring clutch pattern.
Kit Contents
- 5 × Friction plates
- 4 × Steel / clutch plates
- 1 × Pressure plate
- 1 × Clutch hub / centre
- 4 × Clutch springs
- Clutch bolts as supplied with the assembly
Reference Dimensions
- Friction plate outer diameter: approximately 110 mm
- Overall diameter across friction plate tabs: approximately 120 mm
- Friction plate tabs: 8
Vehicle Compatibility
| Make | Model | Model / Engine Code | Fitment Notes |
|---|---|---|---|
| Yamaha | YBR125 E / K | Early 5-plate version | 5-friction-plate clutch type only |
| Yamaha | YBR125 ED | Selected early 5-plate versions | Confirm 5-plate clutch before ordering |
| Yamaha | XT125R | XT125R | 5-friction-plate clutch type |
| Yamaha | XT125X | XT125X | 5-friction-plate clutch type |
| Lexmoto | Arizona 125 | ZS125-30 / ZS156FMI-B | Compatible 4-spring complete clutch pattern |
| Lexmoto | Arrow 125 | HT125-4F | Pre-August 2013 4-spring version only |
| Lexmoto | Ranger 125 | ZS125-50 / ZS156FMI-B | Compatible 4-spring complete clutch pattern |
| Lexmoto | Vixen 125 | HT125-8 | Compatible 4-spring complete clutch pattern |
| Lexmoto | XTR 125 | KS125-23 / 156FMI-2 | Compatible 4-spring complete clutch pattern |
| Lexmoto | XTR S 125 | KS125-24 / 156FMI | Compatible 4-spring complete clutch pattern |
Important Fitment Check
Only order this clutch if the motorcycle uses the 5-friction-plate / 4-steel-plate / 4-spring clutch configuration shown in the photographs.
Some YBR125 and Lexmoto models use different clutch assemblies, including 4-plate, 5-spring or 6-spring versions. Compare the number of friction plates, spring count, centre hub / spline, pressure plate design and dimensions before ordering.
Yamaha OE / Reference Numbers
- 598-16321-01 – friction plate reference
- 1V1-16324-10 – steel / clutch plate reference
- 5AP-16351-00 – pressure plate reference
- 5AP-16371-00 – clutch boss / centre reference
- 90501-204A0 – clutch spring reference
- 90119-05020 – clutch bolt reference
These are Yamaha reference numbers for compatibility identification only. They should not be interpreted as Lexmoto OE numbers, and the supplied component is an aftermarket replacement.
What's Included

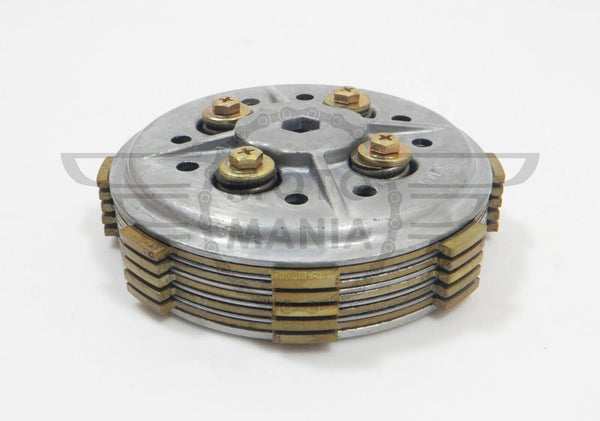

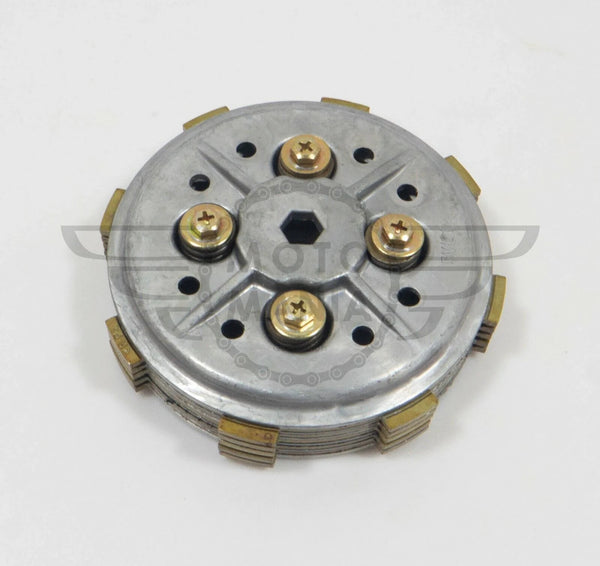

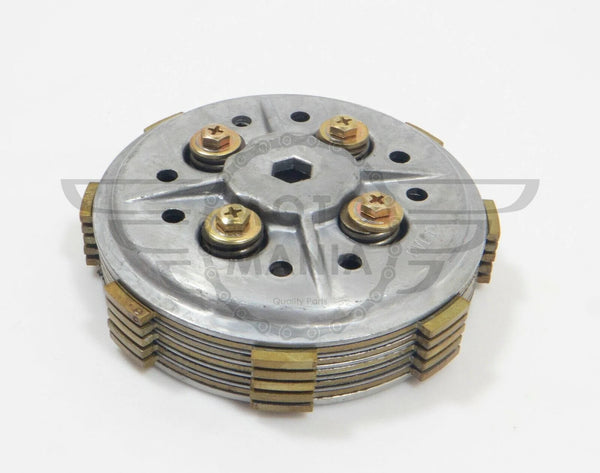

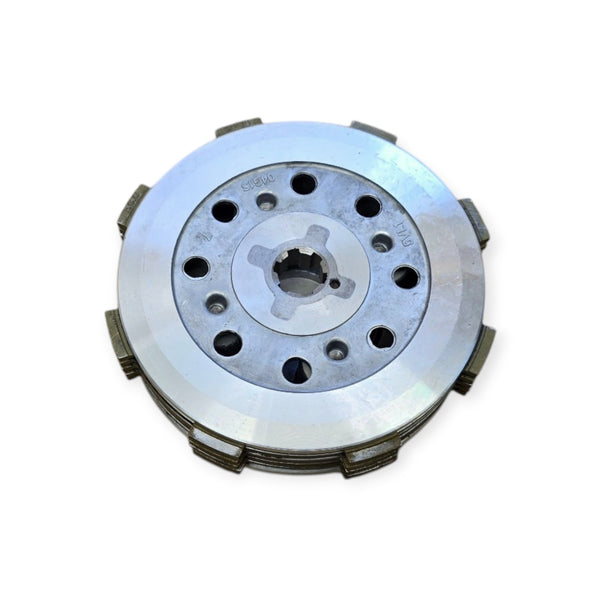

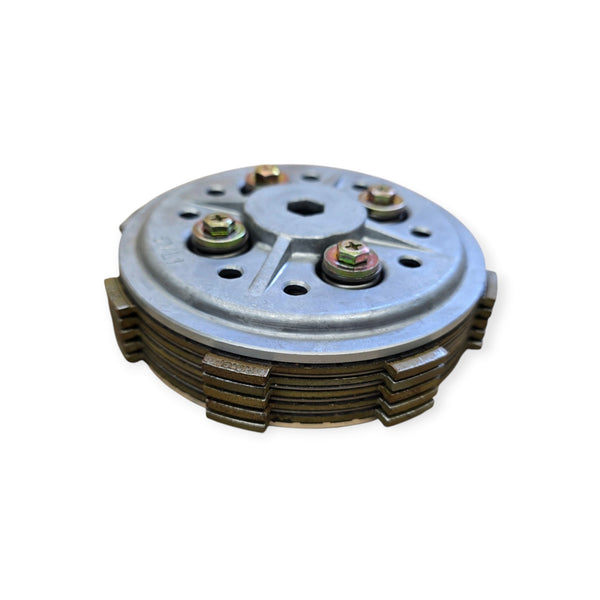

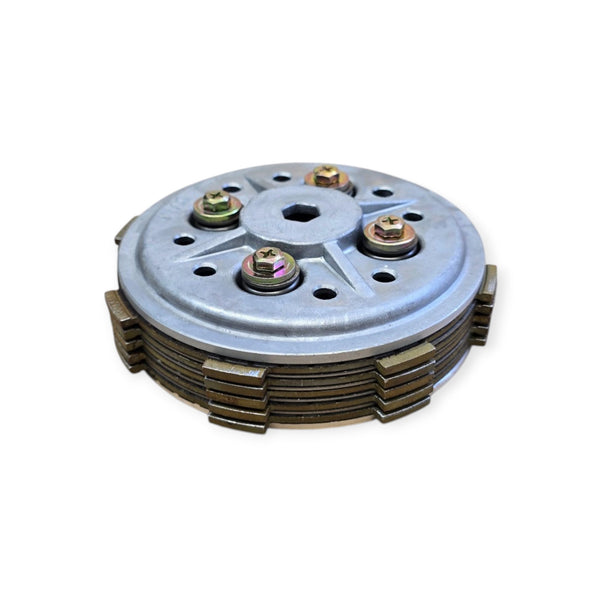

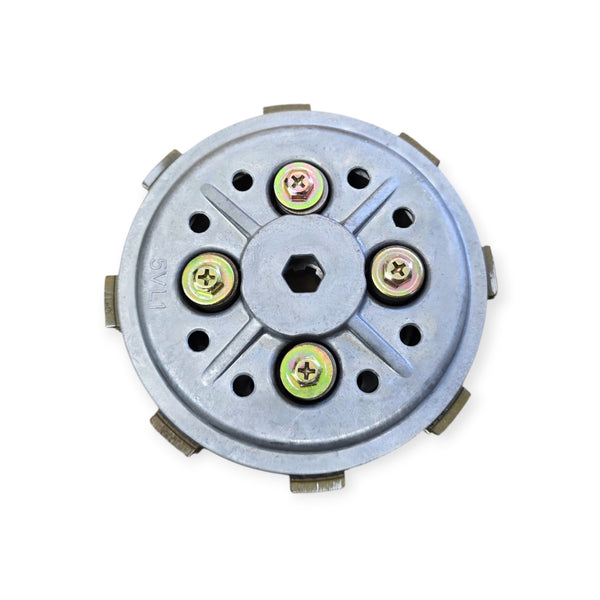

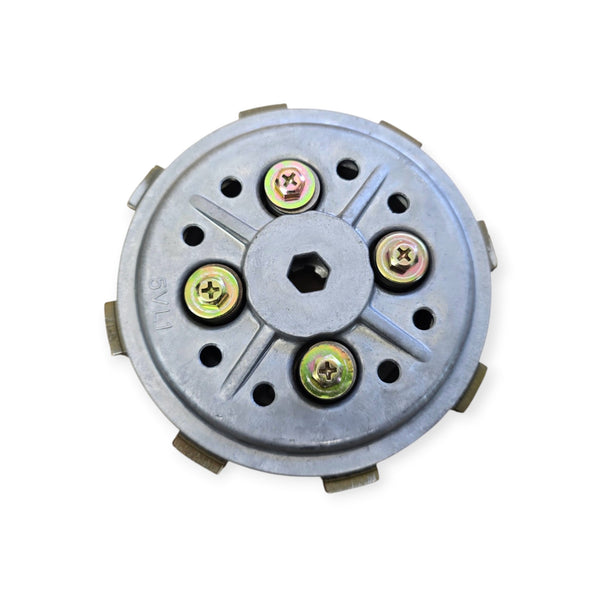

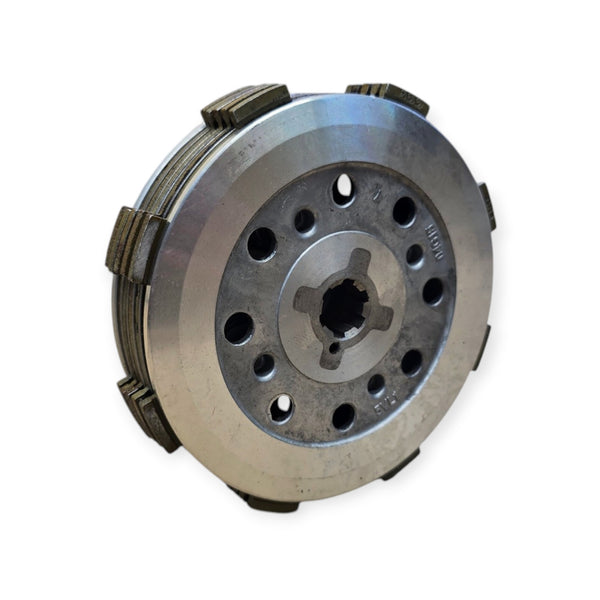

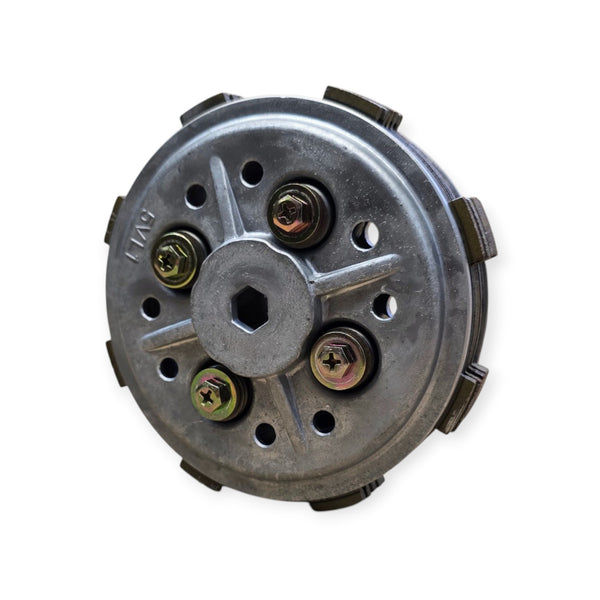

1 × Complete 5-plate, 4-spring clutch drum / centre assembly as shown in the product photographs.
Condition
Brand New
Aftermarket replacement part.
Installation
Clutch components should be installed by a competent person. Confirm correct assembly, adjustment and clutch operation before returning the motorcycle to use.
