Yamaha YBR125 / 154FMI 4-Plate Clutch Drum Assembly

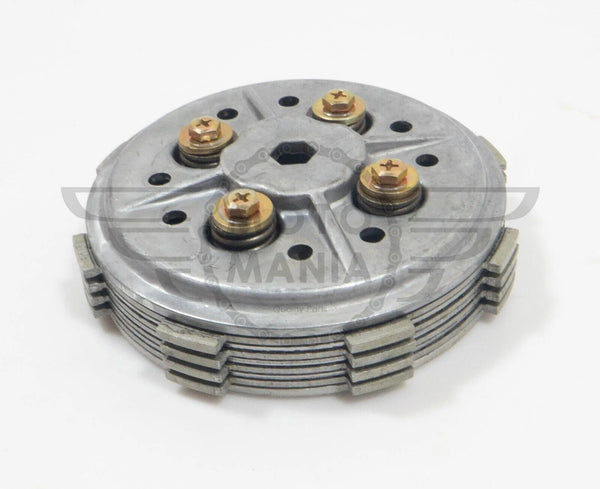

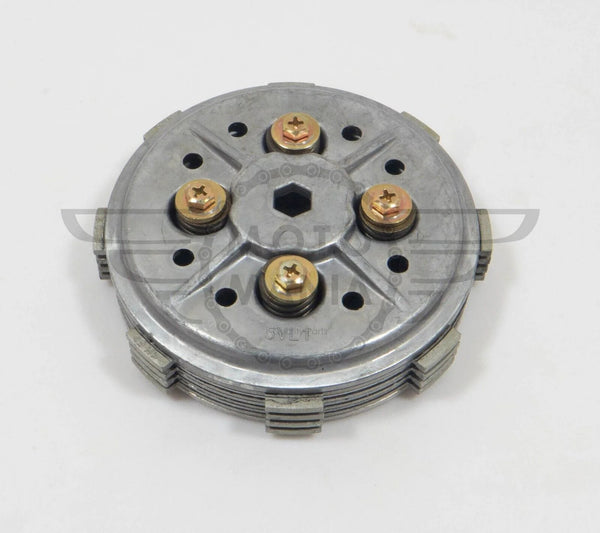

Replacement 4-plate wet clutch drum assembly for Yamaha YBR125 and YBR-pattern 154FMI applications. The unit is supplied assembled as shown in the photographs and is intended to replace the clutch centre/drum and clutch pack assembly where the same 4-spring, 4-friction-plate design is fitted.
Components Included
- Inner clutch drum / clutch centre
- Clutch pressure plate
- 4 friction clutch plates
- 3 steel separator / driven plates
- 4 clutch springs
- 4 spring retaining screws with spring seats
Important: Outer Clutch Basket Not Included
This listing is for the inner clutch drum and clutch pack assembly shown in the photographs. The outer clutch basket / primary driven gear is a separate component and is not included. Centre nut, lock washer, clutch release parts and engine-cover gasket are also not included unless shown.
OE & Reference Numbers
- Yamaha complete clutch assembly: 5VL-E6300-00 / superseded by 5VL-E6300-10
- Inner clutch drum — Yamaha catalogue description “Boss, Clutch”: 5VL-E6371-00 / 5VL-E6371-10
- Friction plate: 5VL-E6321-00 / 5VL-E6321-10 — 4 used
- Steel clutch plate: 5VL-E6324-00 — 3 used
- Pressure plate: 5VL-E6351-00
- Clutch spring: 5VL-E6333-00 / 5VL-E6333-10 — 4 used
- Spring screw: 5VL-E6337-00 — 4 used
- Aftermarket assembly cross-reference: CL006007
- Ferodo friction-plate set cross-reference: FCD0110
OE and manufacturer references are supplied for identification and cross-checking only. This product is an unbranded aftermarket replacement and is not supplied as a genuine Yamaha or Ferodo part.
Fitment
- Yamaha YBR125 using the 4-friction-plate 5VL/YBR-style clutch
- 154FMI YBR-pattern 125cc engines using the same 4-plate clutch assembly
- Selected Jianshe / Chinese YBR-pattern 125cc and 150cc applications using the same clutch
- 156FMI-5 applications only where the original clutch matches this 4-plate YBR-pattern unit
Compatibility Check
Engine codes alone are not always sufficient to identify the clutch. Before ordering, compare the photographs with the original assembly and check the inner drum shape, centre spline, four-spring layout and number of friction plates. Some engines carrying similar 156FMI markings use a different CG-pattern clutch and are not interchangeable.
Installation
Installation requires removal of the clutch-side engine cover and correct reassembly of the clutch operating mechanism. Prepare replacement friction plates as required by the service procedure and tighten all fasteners to the motorcycle manufacturer’s specifications. Professional installation is recommended if the correct workshop procedure and torque settings are not available.
