Honda Cub 6V Short-Shock Chain Guard / Drive Chain Case

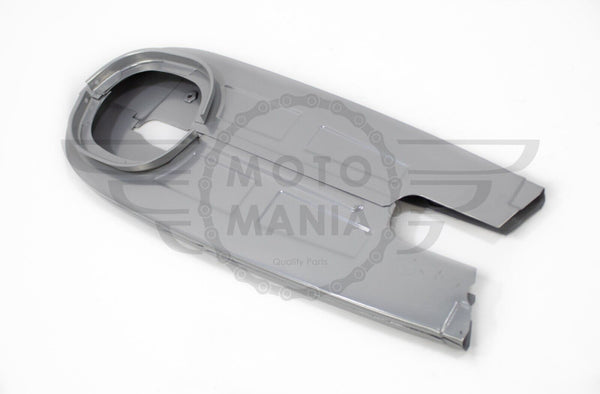

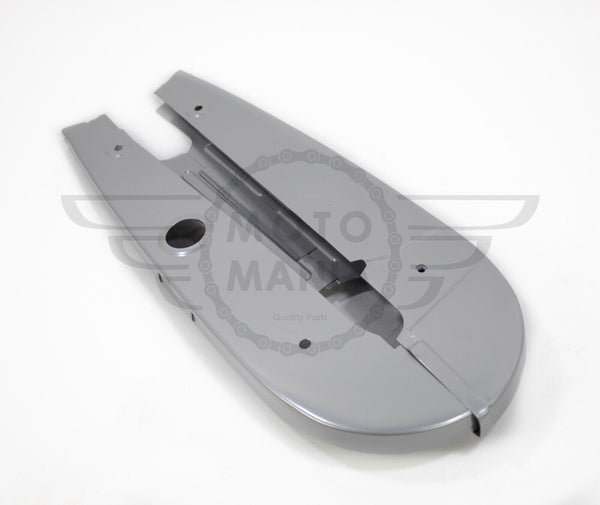

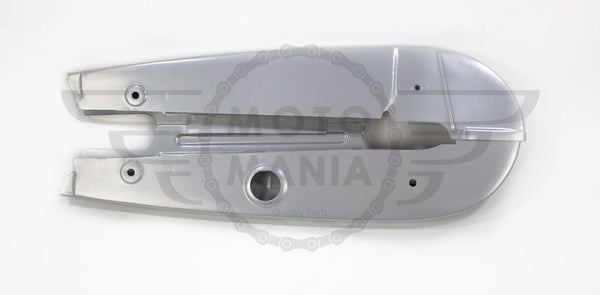

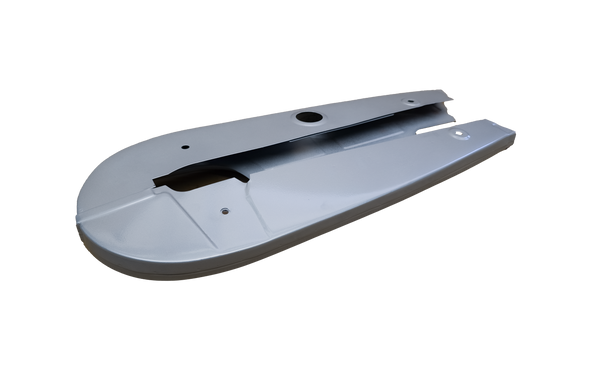

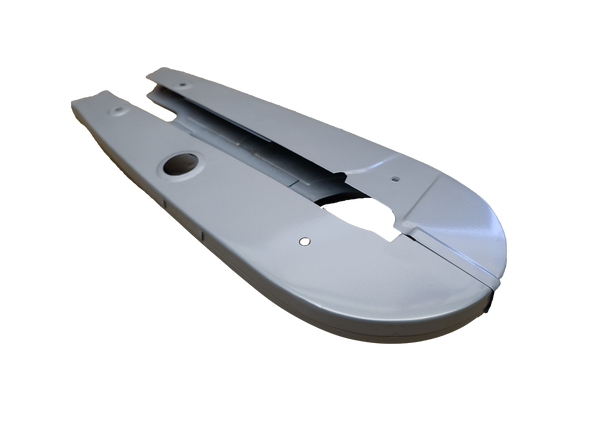

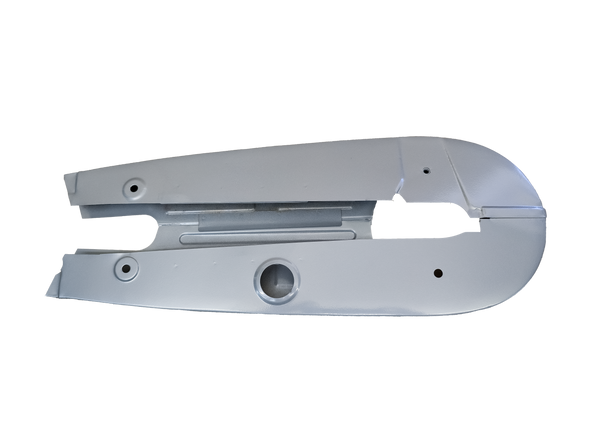

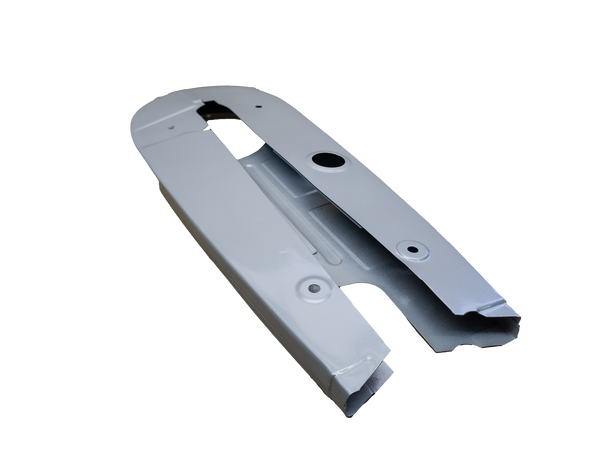

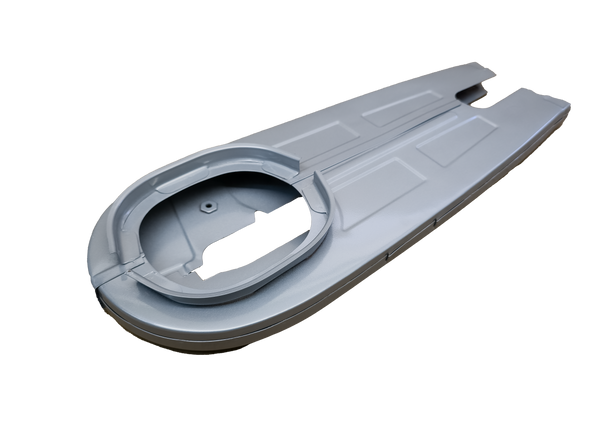

Aftermarket replacement chain guard / enclosed drive-chain case for selected 6V short-shock Honda Cub and Sports Cub models. Suitable for applications matching the shape, mounting points and short-shock chain-case layout shown in the product photos.
Listed & Researched Fitment
- Honda C50 / Super Cub 50 – selected early 6V short-shock models
- Honda C65 / Super Cub 65 – selected early 6V short-shock models
- Honda C70 / Super Cub 70 – selected early 6V short-shock models
- Honda C90 / Super Cub 90 – selected early 6V short-shock models
- Honda C100 / Super Cub 100 – selected early models
- Honda C102 – selected early models
- Honda C105 – selected early models
- Honda C110 / Sports Cub – selected early models
- Honda C111 – selected early models
- Honda C115 – selected early models
Honda OE / Part Number Cross-References
Honda used different upper and lower drive-chain case numbers across these models. The references below are supplied for comparison and research; they are not the manufacturer MPN of this unbranded aftermarket chain guard.
- 40510-041-000 – Honda upper drive-chain case reference, early C50 family
- 40520-041-000 – Honda lower drive-chain case reference, early C50 family
- 40510-051-010 – Honda upper drive-chain case reference, C65 family
- 40520-051-010 – Honda lower drive-chain case reference, C65 family
- 40510-001-020 – Honda upper chain-case reference used in the C100/C102/C105/C110/C111/C115 family
- 40520-001-030 – Honda lower chain-case reference used in the C100/C102/C105/C110/C111/C115 family
Key Details
- Drive-chain guard / chain-case cover
- For selected classic Honda 6V short-shock applications
- Aftermarket replacement
- Useful search terms: Honda Cub chain guard, Honda Cub chain case, C50 chain cover, C70 chain guard, C90 chain case, C100 chain guard
- Moto Mania SKU: 00491-DNT
- Product supplied as pictured
Important Compatibility Check
Honda used several chain-case designs during Cub production. Do not order by engine size or model name alone. Compare the product photos with the chain guard currently fitted and check:
- Short-shock / early-style rear suspension layout
- Upper and lower chain-case shape
- Front and rear mounting points
- Overall length and fixing-hole spacing
- Clearance around the rear sprocket, swingarm and shock absorber
Later 12V Cub models can use a different chain-case design, so this listing is specifically aimed at the compatible early / short-shock style.
