Kawasaki Bayou 220 250 Carburettor KLF220A KLF250A
Product Overview
Aftermarket replacement-style carburettor for selected Kawasaki Bayou 220 and Bayou 250 ATVs. Kawasaki used several original carburettor versions, so confirm the original carburettor and connections before ordering.
Key Features
- Aftermarket replacement-style ATV carburettor

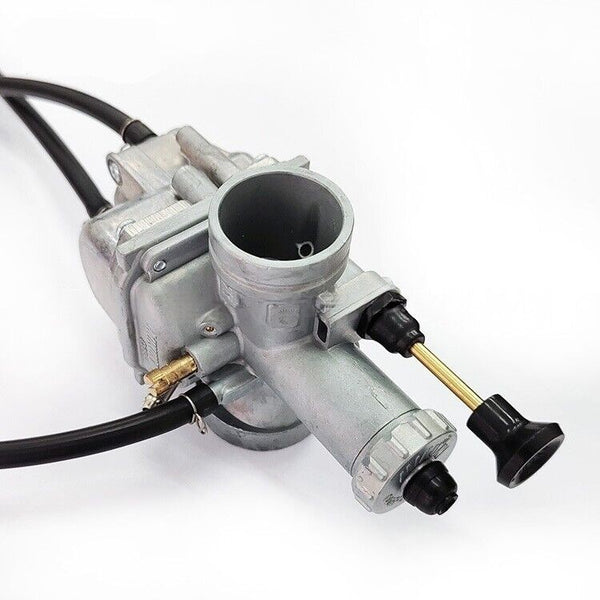

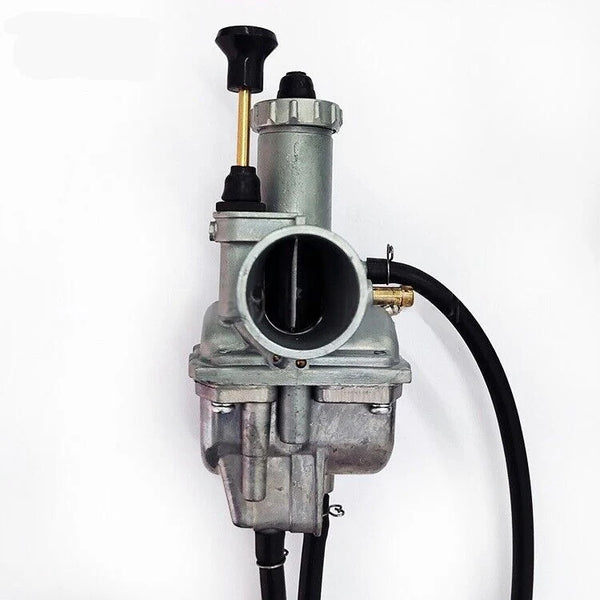

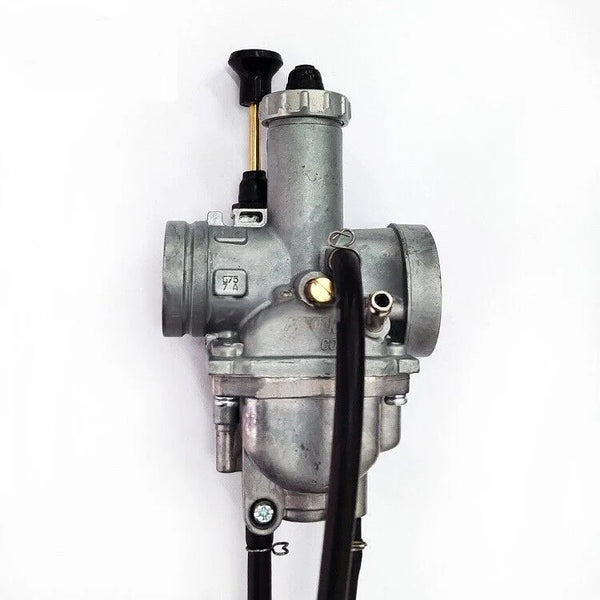

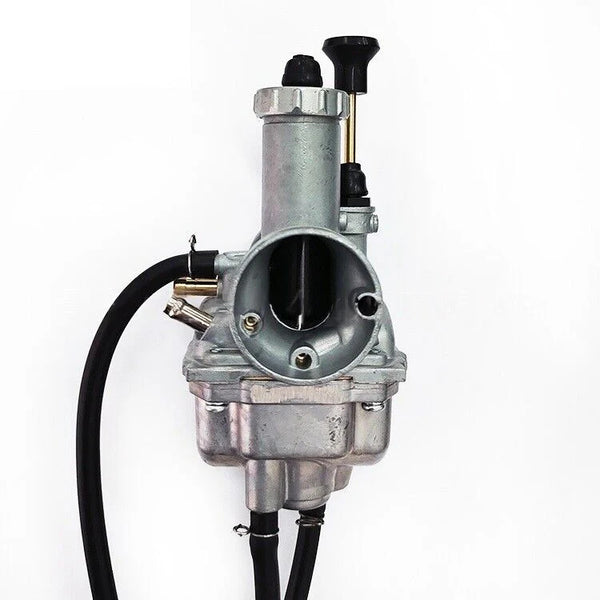

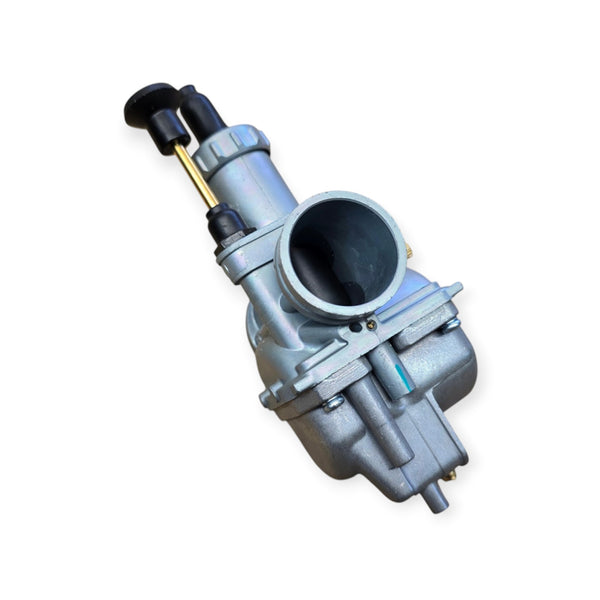

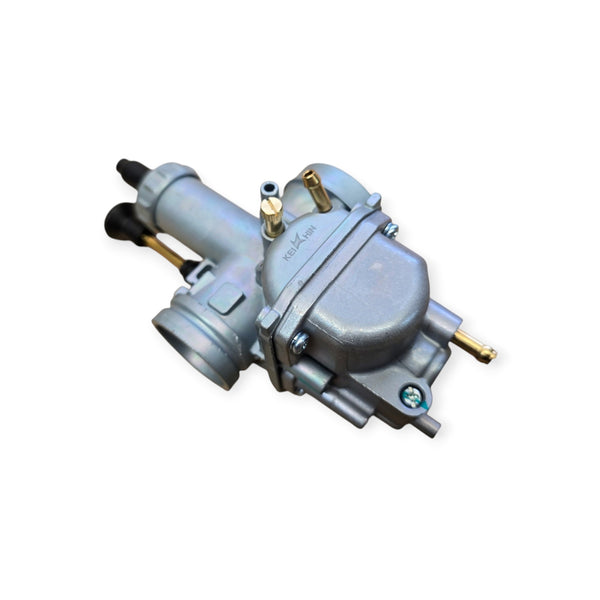

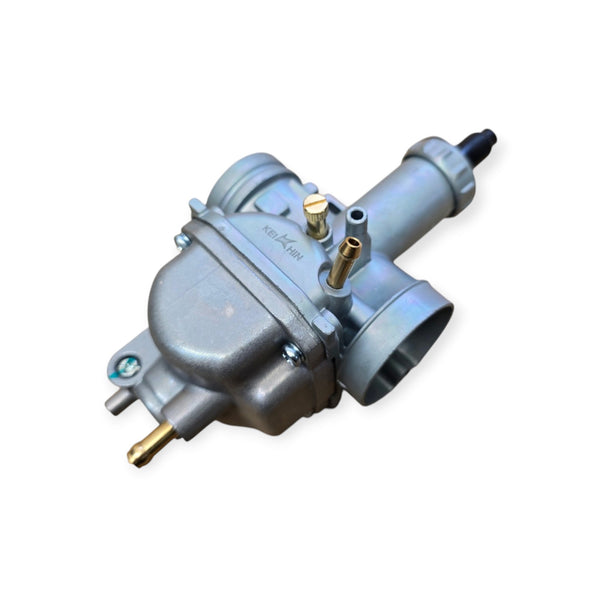

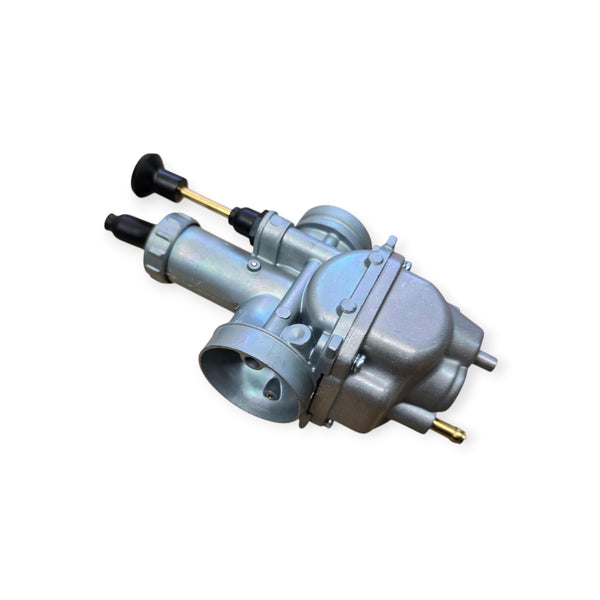

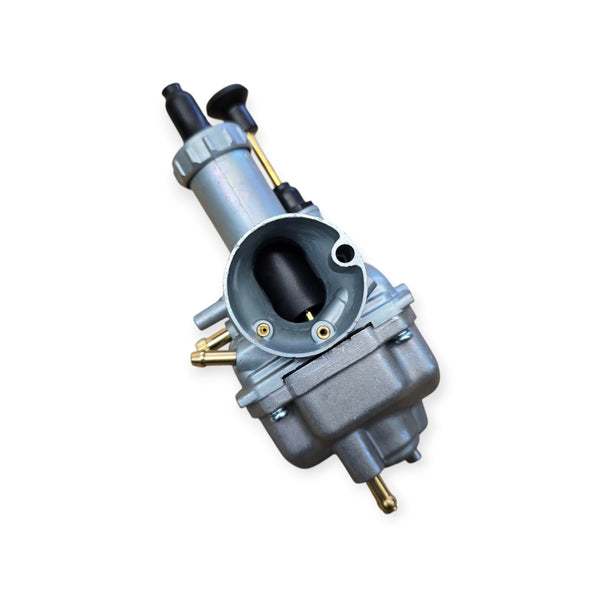

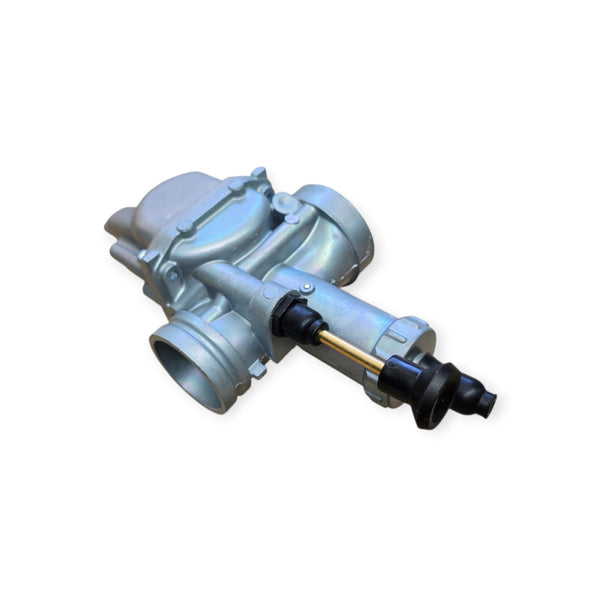

- Complete carburettor unit supplied as shown in the product photographs
- For petrol Kawasaki Bayou applications with a physically matching carburettor and connections
Vehicle Compatibility
| Make | Model | Model / Generation | Years | Notes |
|---|---|---|---|---|
| Kawasaki | Bayou 220 | KLF220-A1 to A12 | 1988–1999 | Original 15003-1080 family; physical match required. |
| Kawasaki | Bayou 220 | KLF220-A13 to A15 | 2000–2002 | Different original 15003-1533 / 15003-1564 variants; match carburettor and cable/choke connections. |
| Kawasaki | Bayou 250 | KLF250-A1 to A6F | 2003–2006 | Original 15003-0013 family (earlier 15003-1716); check supplied replacement against original. |
| Kawasaki | Bayou 250 | KLF250-A7F to A9F | 2007–2009 | Original 15003-0113 VM24 family; compare connections and jetting. |
| Kawasaki | Bayou 250 | KLF250-AAF / ABF | 2010–2011 | Multiple original carburettor specifications; confirm exact market variant and physical fit before ordering. |
Kawasaki Original Part References – Identification Only
- 15003-1080 – Bayou 220 original carburettor on 1988–1999 models
- 15003-1533 – Bayou 220 later original carburettor, 2000–2002 US/other markets
- 15003-1564 – Bayou 220 later original carburettor, 2000–2002 Canada-market variant
- 15003-0013 – Bayou 250 original carburettor on 2003–2006 models
- 15003-1716 – Earlier Bayou 250 number superseded by 15003-0013
- 15003-0113 – Bayou 250 later VM24 original carburettor on 2007–2009 and some later configurations
- 15004-0075 – Bayou 250 2010 market-variant original carburettor family
Kawasaki used different factory carburettors and jetting by year and market. These numbers identify original units to compare; they are not a claim that this one aftermarket carburettor is identical to every listed Kawasaki original part. The supplied carburettor is unbranded aftermarket, not Genuine Kawasaki.
Specifications to Check
- Application: Kawasaki Bayou 220 / 250 carburetted ATV, subject to the compatibility table and physical comparison
- Carburettor inlet, airbox outlet, mounting and cable connection: measure and compare with original
- Jet sizes and choke arrangement: confirm against actual supplied component
What's Included

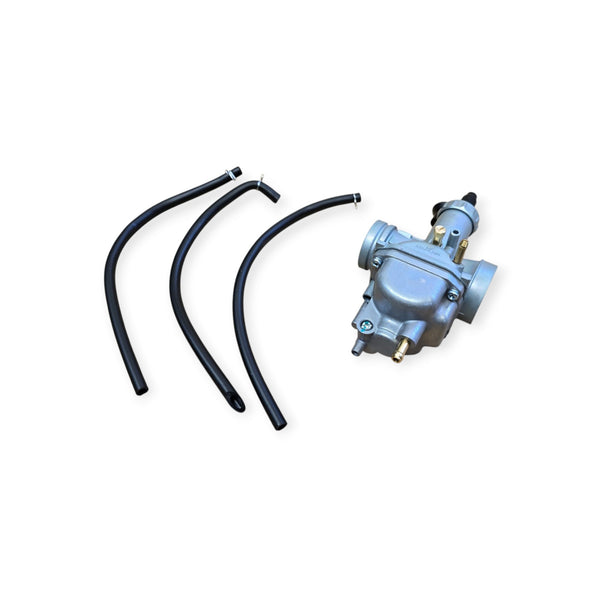

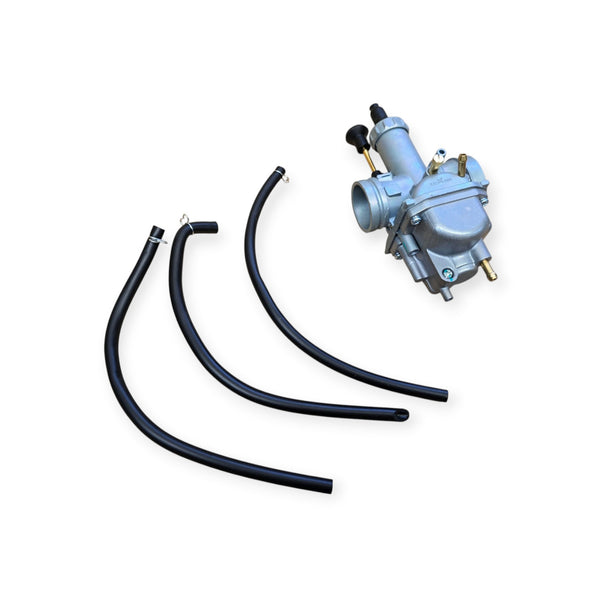

1 × aftermarket replacement carburettor, as pictured. Other hoses, cables, gaskets and tuning parts are not included unless visible in the product photographs.
Important Fitment Information
Model name and year alone do not guarantee a fit. Before ordering, compare the original carburettor with the product photos and confirm:
- Engine-side connection type and inlet diameter
- Airbox-side connection diameter and fit
- Mounting arrangement and available space
- Choke mechanism, plunger or cable fit
- Throttle-cable cap, adjuster, slide and cable-end fit
- Fuel and breather connections
The replacement may require adjustment of jetting and idle settings for the engine, air filter, exhaust and local conditions. The supplied jet sizes, connection diameters and choke details have not been verified against a measured stock sample.
Not intended as a confirmed replacement for the Bayou 300/400 or other Kawasaki ATVs merely because they have a similar-looking carburettor.
Condition
Brand new aftermarket replacement.
