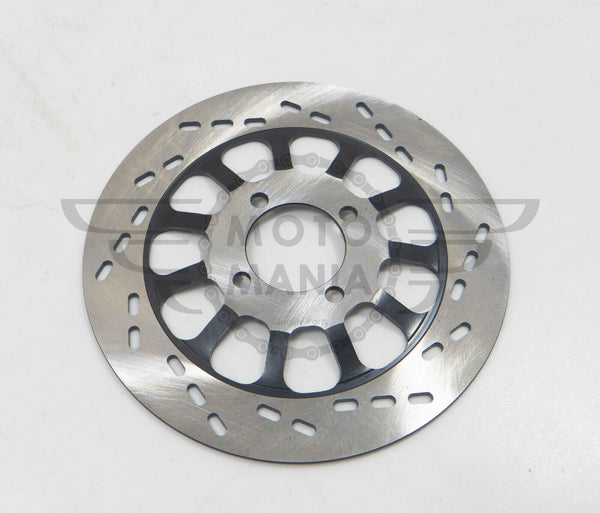

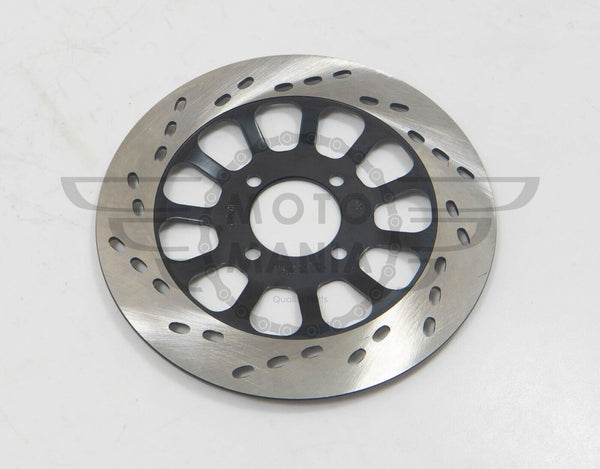

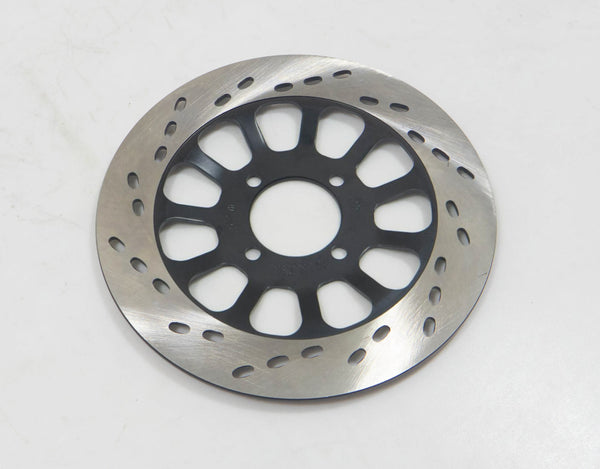

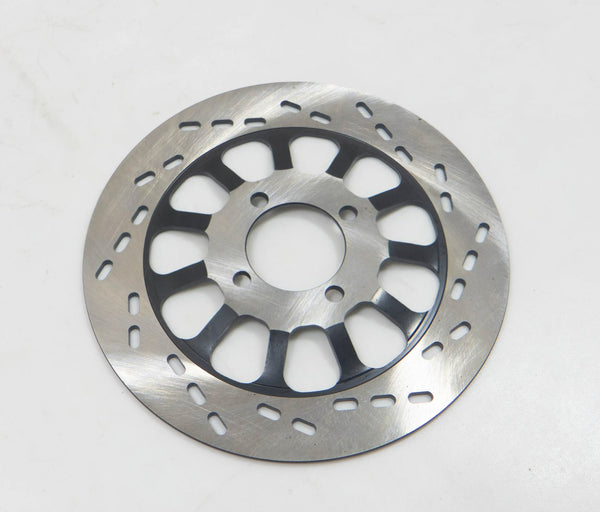

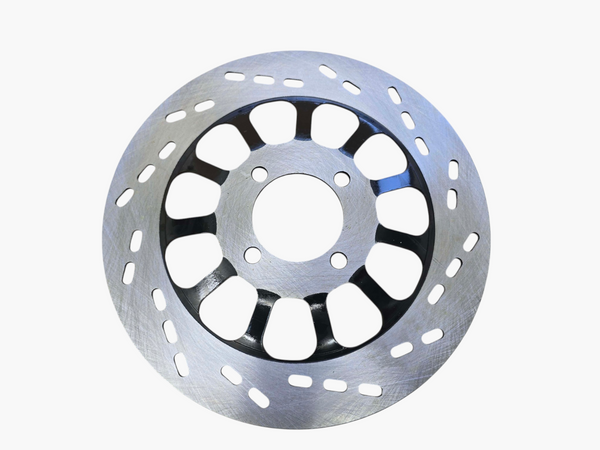

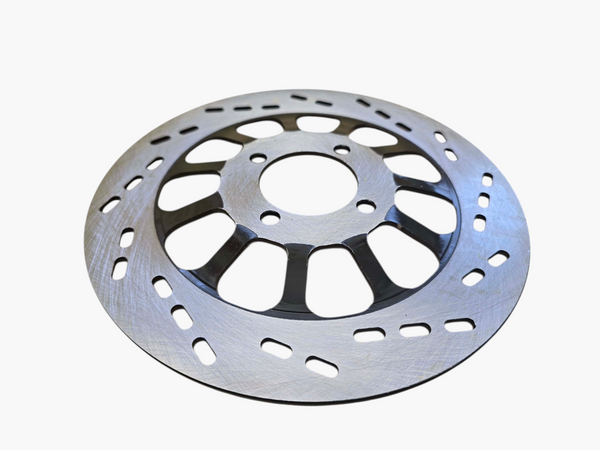

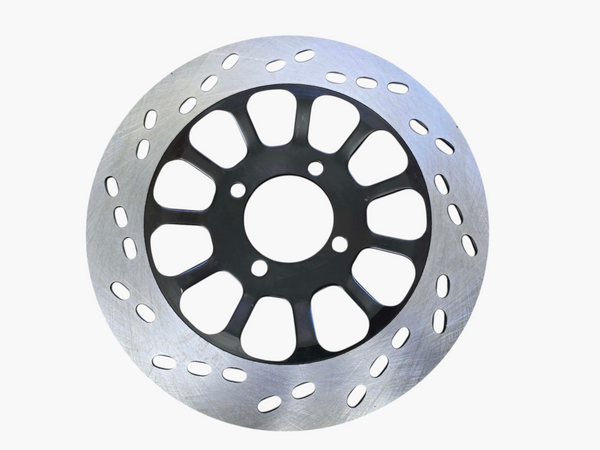

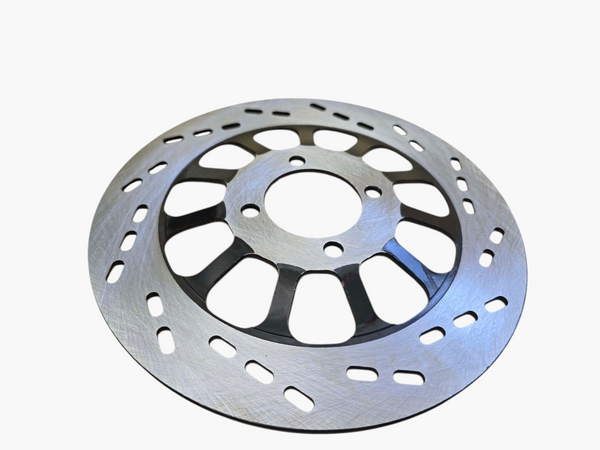

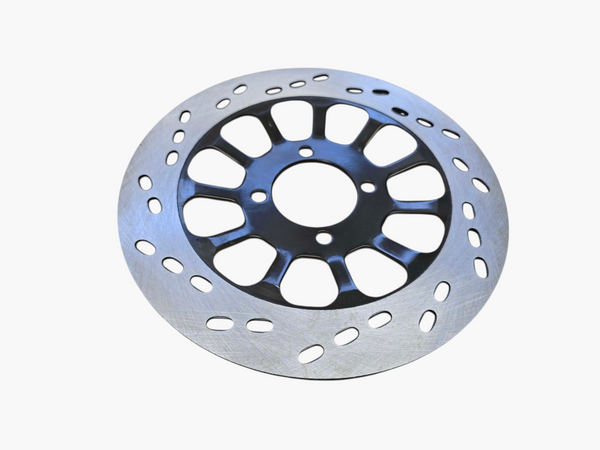

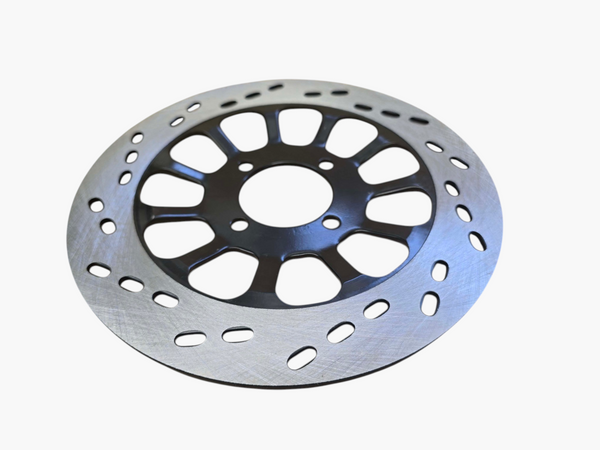

Suzuki GN125 GS125 TU125 Front Brake Disc – 220mm
New aftermarket front brake disc / rotor for selected Suzuki GN125, GS125 and TU125 applications using Suzuki brake disc reference 59211-13001.
Key Details
- Product: Front brake disc / rotor
- Outside diameter: 220 mm
- Disc thickness: 4 mm
- Centre bore: 50 mm
- Mounting holes: 4
- Mounting-hole diameter: 8 mm
- Disc type: Solid / rigid
- Condition: New
- Type: Aftermarket replacement
Vehicle Compatibility
| Make | Model | Years | Position | Notes |
|---|---|---|---|---|
| Suzuki | GN125 / GN125E | 1982–2001 | Front | Applications using Suzuki disc reference 59211-13001. Market specifications can vary. |
| Suzuki | GS125 / GS125ES | 1983–1994 | Front | Check the original disc reference and dimensions before ordering. |
| Suzuki | TU125 X / XT / XTU | 1999 | Front | Applications using Suzuki disc reference 59211-13001. |
OE / Reference Numbers
- Suzuki: 59211-13001 / 5921113001
- Superseded Suzuki reference: 59211-13000 / 5921113000
Reference numbers are supplied for compatibility identification. The disc supplied is an aftermarket replacement and is not described as a Genuine Suzuki part.
Reference Specifications
- Outside diameter: 220 mm
- Thickness: 4 mm
- Centre bore: 50 mm
- Bolt holes: 4 × 8 mm
- Reference shipping weight: approximately 0.9 kg
These are verified application cross-reference specifications for replacement discs matching 59211-13001. Compare the dimensions and mounting pattern with the disc currently fitted before ordering.
What's Included
- 1 × front brake disc
Important Fitment Information
Match the OE reference and dimensions before ordering. Suzuki used different front brake discs on some later GN125 variants, including applications using 59211-05350. This listing is for the 220 mm disc matching 59211-13001 / 59211-13000.
Condition
New. Unused aftermarket replacement brake disc.
