Honda PCX125 Front ABS Brake Disc, Pads & Rear Shoes 2023–2024
Aftermarket front and rear brake-service kit for 2023–2024 Honda PCX125 WW125AP UK/European models fitted with the matching front ABS-disc system and a rear drum brake. Match all three original components before ordering.
Product Overview
This kit combines a front brake disc in the 45351-K1Y-J51 ABS sensing-ring family, one set of front brake pads in the 06451-KZZ-902 / FA465 family and one set of rear brake shoes in the 06430-KWN-900 / H352 family.
Vehicle Compatibility
| Make | Model | Model Code | Years | Brake Setup | Notes |
|---|---|---|---|---|---|
| Honda | PCX125 | WW125AP, UK/European specification | 2023 | Front ABS disc; rear drum | Confirm original front disc 45351-K1Y-J51, front pad 06451-KZZ-902 and rear shoes 06430-KWN-900 or the equivalent OEM supplier option. |
| Honda | PCX125 | WW125AP, UK/European specification | 2024 | Front ABS disc; rear drum | Confirm all three component profiles against the scooter. Other markets and brake arrangements can differ. |

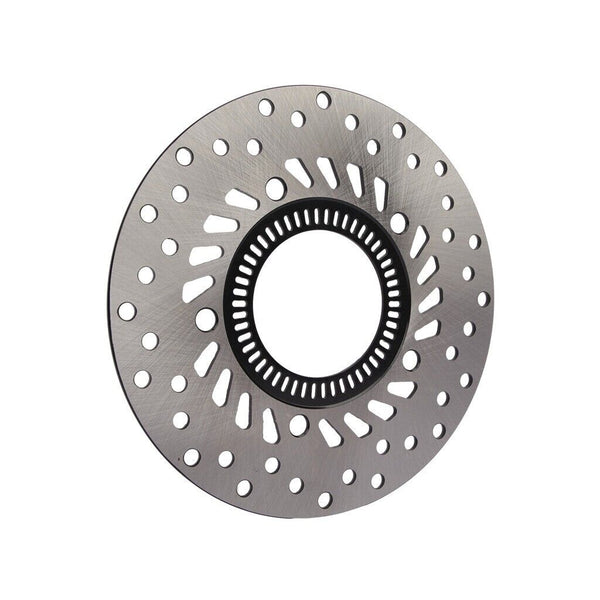

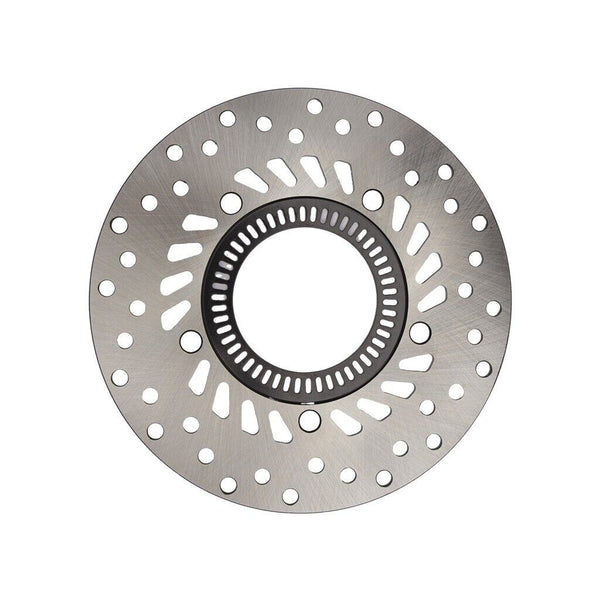

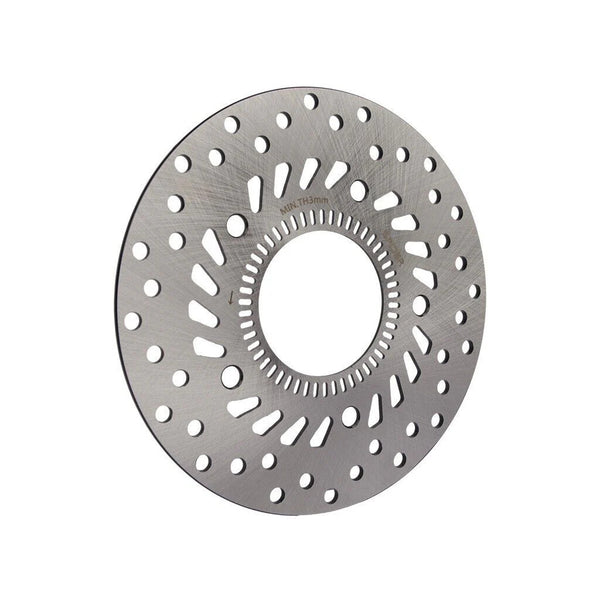

Front Brake Disc – Reference Specifications
- Honda reference: 45351-K1Y-J51 / 45351K1YJ51
- Outside diameter: approximately 220 mm
- Centre opening: approximately 105 mm
- Type: front ABS sensing-ring disc family
Compare the actual rotor, ABS sensing-ring arrangement, exact mounting-hole count, mounting points and hub with the part currently fitted. Published aftermarket mounting-hole specifications for this OE reference differ, so no unverified hole count or PCD is claimed here.
Front Brake Pads – Reference Specifications
- Honda: 06451-KZZ-902 (replaces earlier 06451-KZZ-901 on applicable models)
- EBC application profile: FA465
- Ferodo application reference: FDB2242
- Reference pad outlines: approximately 111 × 36 mm and 98.5 × 33 mm
Rear Brake Shoes – Reference Specifications
- Honda: 06430-KWN-900
- Honda alternative supplier references for the listed rear-drum applications: 06430-K44-V80 / 06430-KZL-930
- EBC application profile: H352
- Reference diameter: approximately 130 mm
- Reference shoe width: approximately 25 mm

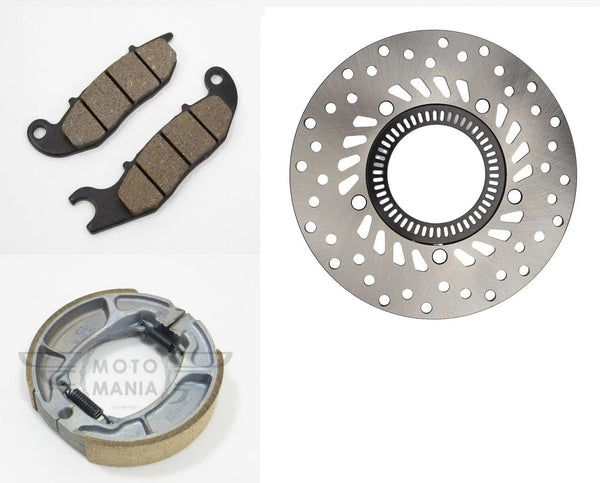

What's Included
- 1 × front brake disc / rotor with ABS sensing-ring arrangement
- 1 × set of front brake pads for one front caliper
- 1 × set of rear drum brake shoes
Important Fitment Information
Complete-kit compatibility requires all three parts to match. Honda lists a different front disc, 45351-K29-V81, on UK/European 2021–2022 PCX125 models, so those years are not included in this complete-kit listing.
Do not assume fitment for every overseas 2023–2024 PCX125 or every model carrying the WW125AP code. Some markets use a rear disc instead of rear shoes, or a different front pad set. Check the original Honda parts fiche using your exact model/VIN and compare the physical components.
These are compatibility references only. The supplied components are aftermarket parts and are not Genuine Honda, EBC or Ferodo products unless expressly identified as such.
Condition
Brand new aftermarket replacement brake components.
Delivery & Returns
- Free UK delivery with an estimated 2–3 working-day service
- 30-day returns, subject to the item being returned in its original condition
Safety Information
Braking components are safety-critical. Installation should be performed by a competent person or qualified motorcycle technician; confirm the correct disc, wheel-speed sensing and both brakes operate properly before road use.
