Aprilia Atlantic Mojito Sportcity Scarabeo 125-200 Starter Motor

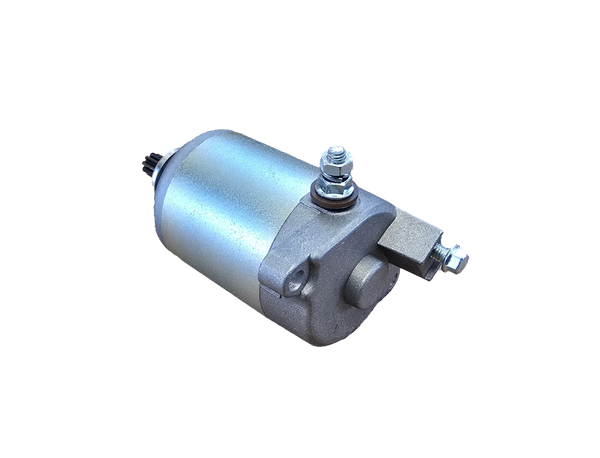

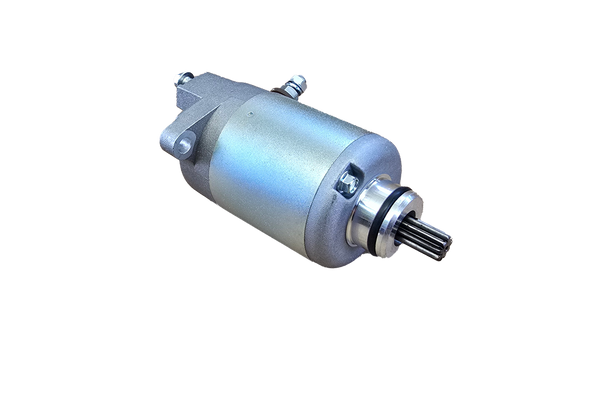

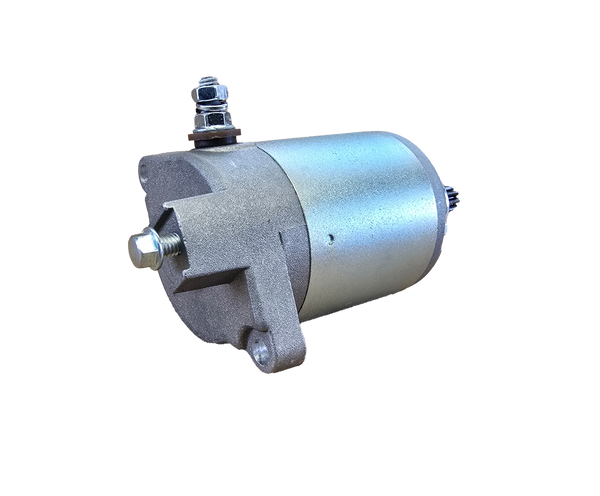

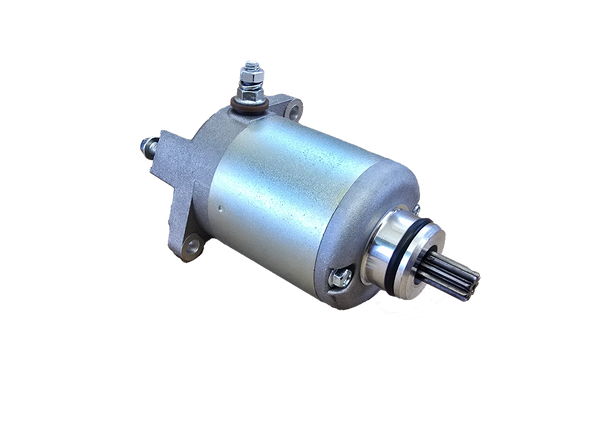

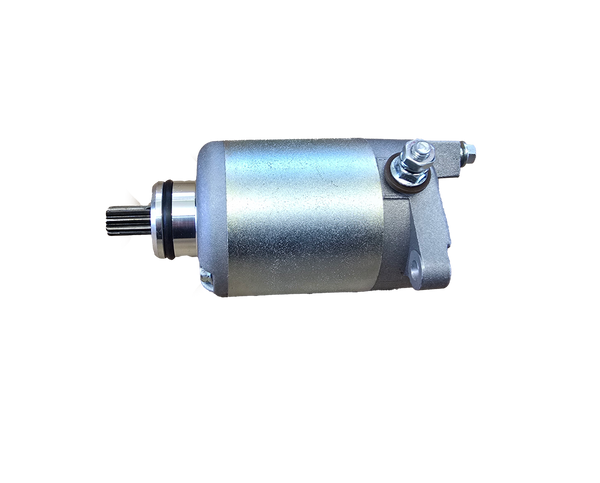

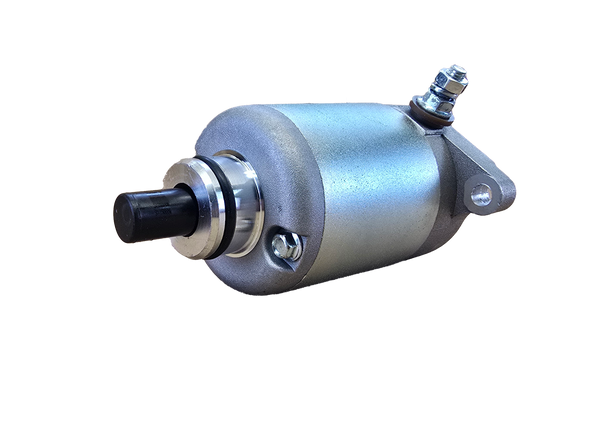

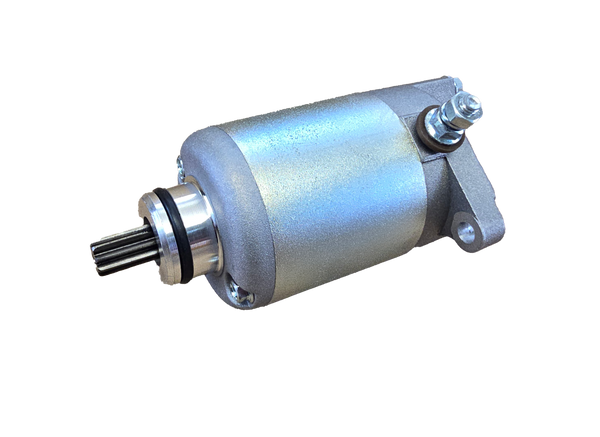

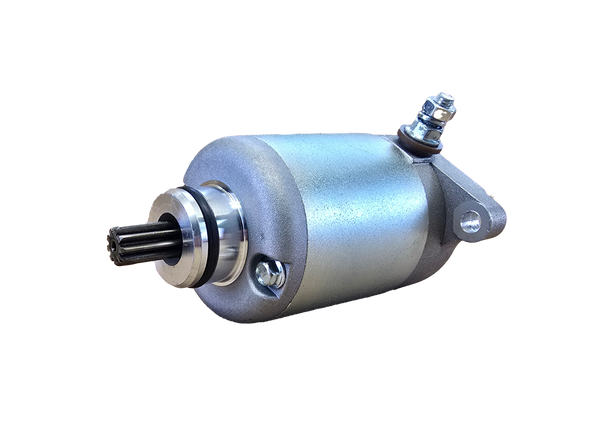

New replacement 12 V starter motor for selected Aprilia scooters that use Piaggio Group 4-stroke Leader engines and the matching 82611R / 82611R5 starter specification. Supplied as the complete 9-tooth starter motor assembly shown.
Components Shown / Supplied
- 1 complete electric starter motor assembly
- Integral 9-tooth starter drive pinion
- Two-hole cast mounting flange
- Threaded positive electrical terminal with securing hardware
- Starter motor body, front drive housing and rear end housing assembled as shown
The listing is for the starter motor assembly shown in the photographs. Starter relay/solenoid, external wiring loom, separate starter gears and engine mounting bolts are not included unless specifically shown.
Specification
- System: 12 V electric starter
- Drive pinion: 9 teeth
- Engine family: selected Piaggio Group 4-stroke Leader applications
- Mounting: two-bolt flange type
- Electrical connection: threaded main power terminal
OE / OEM Reference Numbers
- Piaggio / Vespa: 82611R
- Piaggio / Vespa supersession: 82611R5
- Piaggio: 580442
- Aprilia / Piaggio Group cross-reference: AP8580124
Manufacturer / Aftermarket Cross References
- Athena: 645023A
- RMS: 24 639 0090 / 246390090
- M2S: M501007
- NICHE: 519-CSM2380O
- Mitsuba reference: SM14-225
Cross-reference numbers are supplied for identification only. They do not mean the unbranded starter motor supplied was manufactured by those brands.
Typical Applications
This listing is targeted at the following model families. Fitment can vary by production year, engine code and market:
- Aprilia Atlantic 125 selected Piaggio-engined applications
- Aprilia Mojito 125 selected 4-stroke Leader applications
- Aprilia Sportcity 125 / 200 applications using this starter family
- Aprilia Scarabeo 125 / 200 Piaggio-engine applications where OE numbers match
- Selected Aprilia SR Motard 125 4T applications sharing the same starter family
Important Compatibility Check
Piaggio Group used more than one starter motor across similarly named models. Before ordering, compare the OE number and the original motor against the photographs. Check the 9-tooth pinion, mounting flange, bolt-hole spacing, body length and electrical terminal position. Matching the original OE/reference number is the safest method of confirming fitment.
Replacement Advice
Slow cranking or a non-operating starter can also be caused by a weak battery, poor earth connection, damaged wiring, a faulty starter relay/solenoid or a problem in the starter-drive mechanism. Check the starting circuit before replacing the motor.
