50cc-125cc 2-Coil 5-Wire 12V Stator Plate Horizontal Pit Bike
New unbranded aftermarket 12V 2-coil / 5-wire magneto stator plate for compatible small Honda-style horizontal engines. The assembly provides CDI ignition source/trigger functions plus charging/lighting outputs where the motorcycle wiring system supports them.

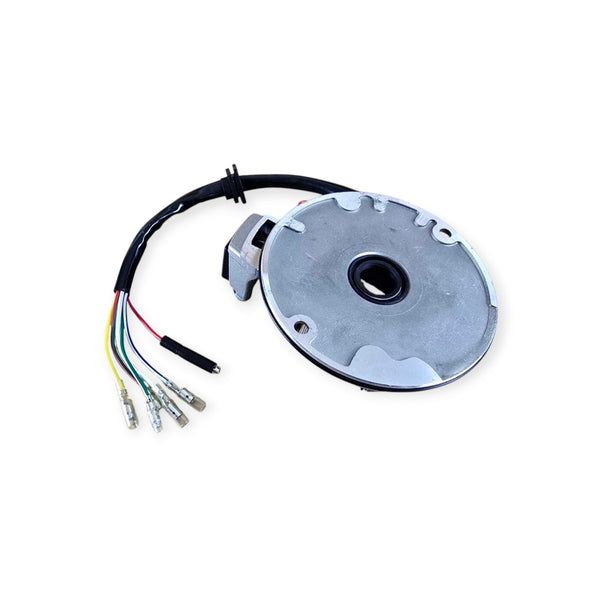

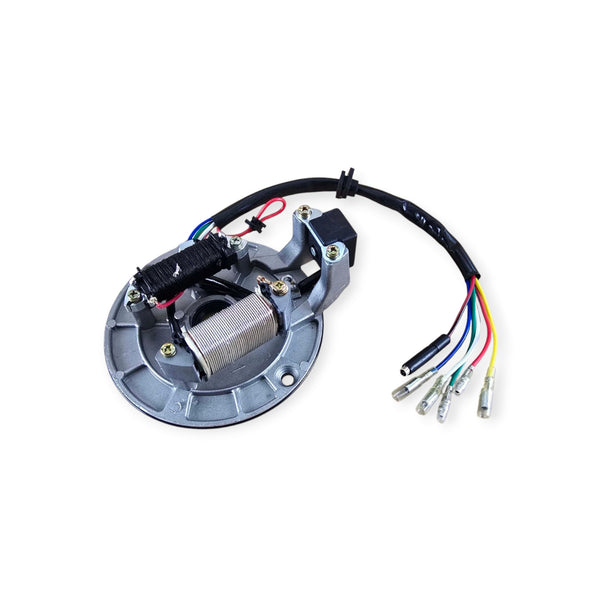

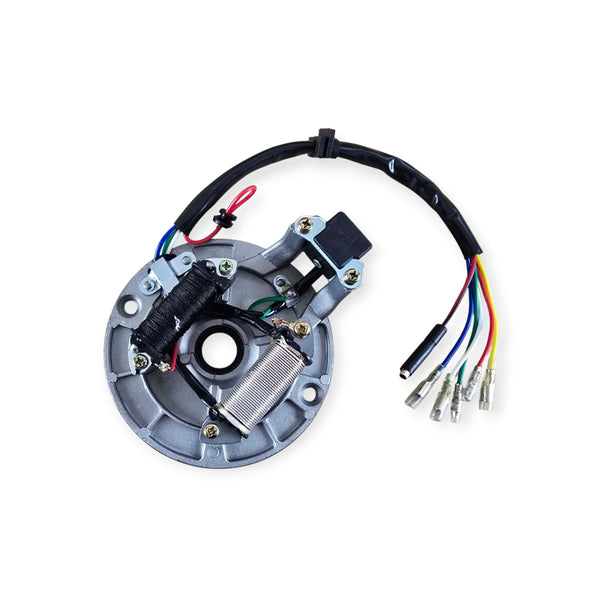

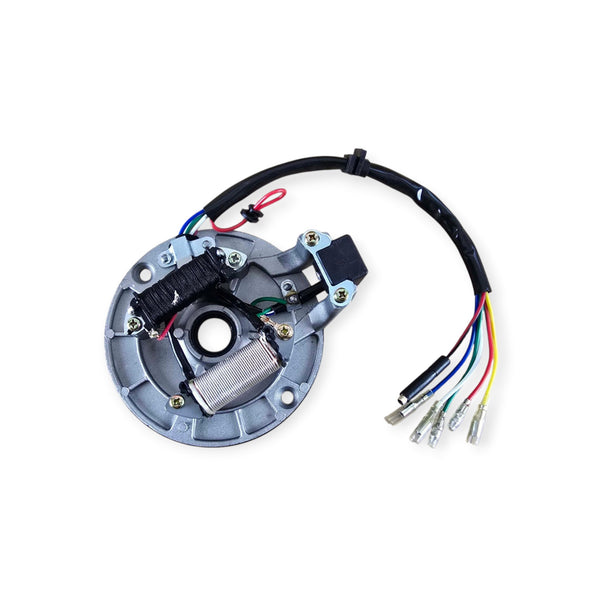

Components Identified From The Product Photos
- Aluminium stator / backing plate
- Two wound stator coil assemblies
- Separate ignition pulse / pickup trigger

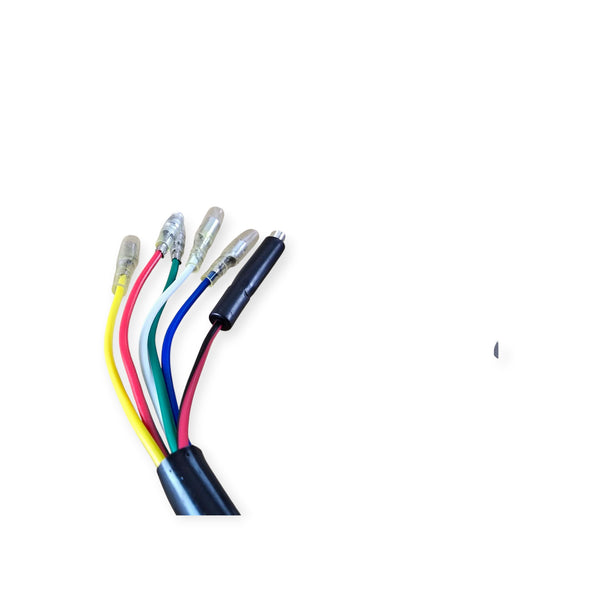

- Attached 5-wire wiring harness
- Rubber cable pass-through grommet
- Five bullet-style electrical terminals / leads
Supplied as pictured. Flywheel/rotor, CDI unit, regulator/rectifier, ignition coil, mounting screws and wiring loom are not included unless shown in the photographs.
Fitment
- 50cc–125cc horizontal-cylinder pit-bike, mini-bike, ATV or Cub-style engines where the original stator has the same 2-coil / 5-wire layout and compatible mounting/flywheel
OE / Reference Information
Universal/custom aftermarket component — no single OE reference.
Honda OE numbers identify original Honda stators and can vary by year, market, electric-start specification and flywheel. Do not order this aftermarket stator solely because an OE number appears in a compatibility list.
Comparable Aftermarket References
- Wandamotor K079-001 / WJ0412 — 2-coil 5-wire horizontal-engine stator
- United Express STTR-0058 — 2-coil 5-wire 50cc–125cc stator
- Scooter Dynasty manufacturer ref. 26032 — 2-coil 5-wire 70cc–125cc pit-bike stator
These are equivalent-style aftermarket catalogue references for 2-coil / 5-wire horizontal-engine stators. They are not the manufacturer MPN of this unbranded item.
Critical Compatibility Checks
- Compare the complete stator plate shape and mounting holes with your original.
- Check the pulse/pickup trigger position and flywheel trigger relationship.
- Confirm the original uses the same five-wire ignition/charging arrangement.
- Check the rubber grommet position, harness length and terminal/connector style.
- Matching aftermarket units commonly use about 70mm mounting-hole pitch; measure your original rather than assuming.
Wire colours on many 5-wire horizontal-engine stators commonly include ignition source, pulse trigger, earth and two charging/lighting outputs, but aftermarket colour codes can vary. Connect by wiring function/diagram rather than colour alone.
Installation Notes
- Disconnect the battery if fitted and follow the correct flywheel-removal procedure.
- Use the correct flywheel puller rather than levering or striking the rotor.
- Check the woodruff key, flywheel taper and pickup clearance during reassembly.
- Verify charging voltage and ignition operation before road use.
- Professional installation is recommended if wiring or ignition timing is uncertain.
