Honda SS50 CD50 CL50 4-Speed Gearbox Gear Set & Shift Drum
Brand new aftermarket replacement 4-speed manual transmission / gearbox gear set for compatible Honda horizontal-engine motorcycles.
Product Overview

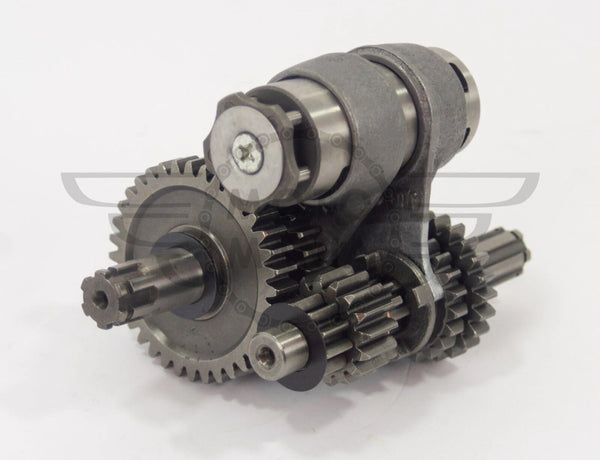

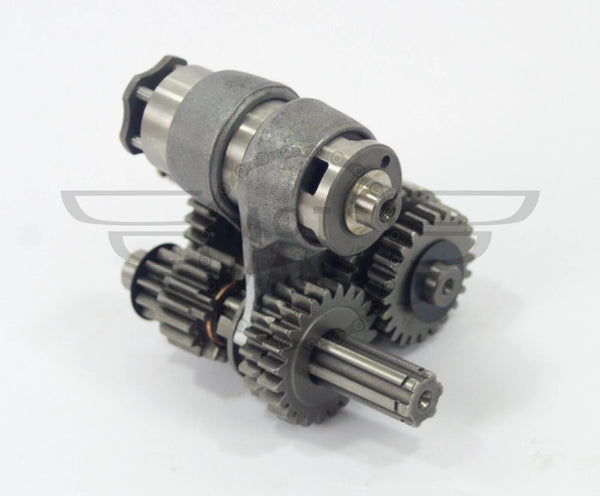

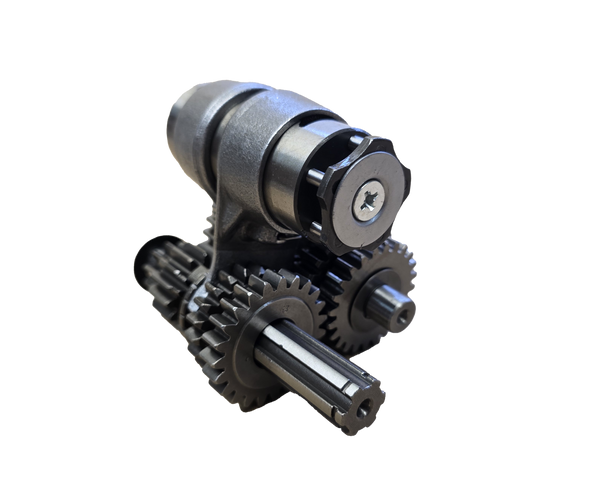

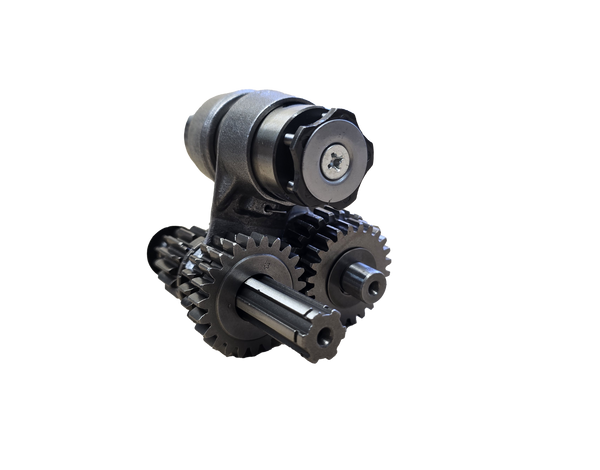

The set includes the transmission gear/shaft assemblies plus the shift drum / barrel and selector components supplied as shown in the product photographs.
Vehicle Compatibility
| Make | Model | Transmission | Fitment Notes |
|---|---|---|---|
| Honda | SS50 / SS50E | 4-speed manual only | Non-pedal-crank gearbox versions only; exclude 5-speed SS50 / SS50Z |
| Honda | CD50 / Benly CD50 | 4-speed manual | Compare shaft lengths and selector arrangement; Honda used more than one ratio family |
| Honda | CL50 / Benly CL50 | 4-speed manual | Including later CD50-engine-based CL50 versions where dimensions and selector arrangement match |
Reference Dimensions
- Shift drum / barrel length: approximately 95 mm including the retaining plate
- Transmission gear-set length: approximately 120 mm
- Output shaft length: approximately 117 mm
These measurements are important fitment checks. Compare the original transmission, shaft lengths, shift drum and crankcase arrangement before ordering.

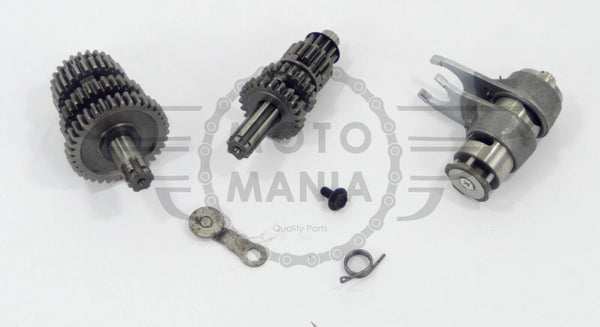

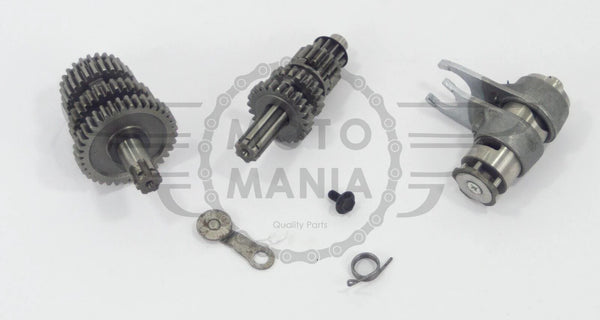

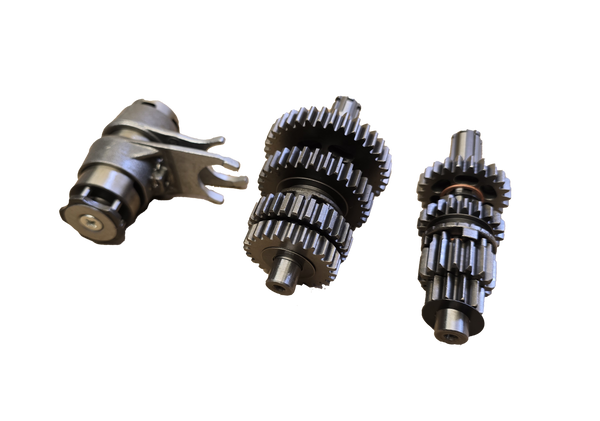

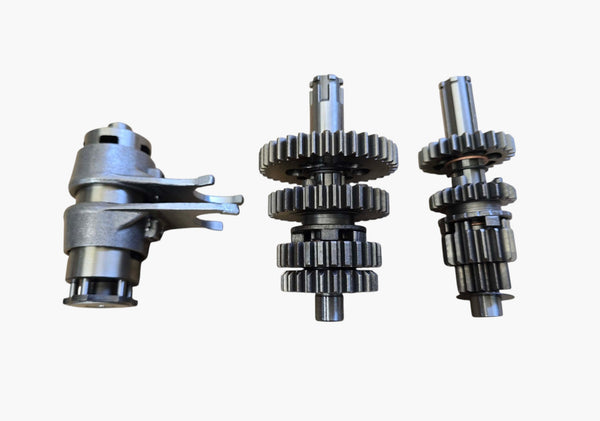

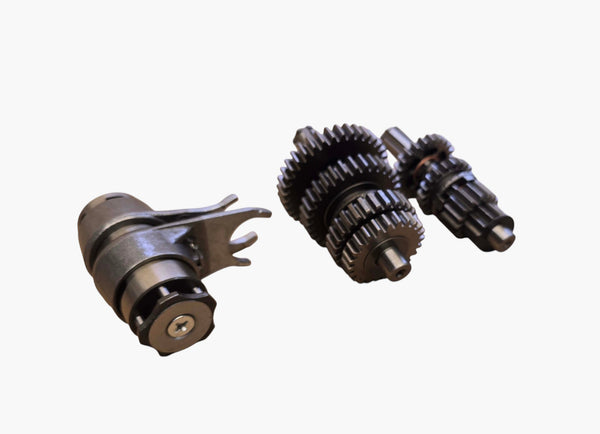

What's Included

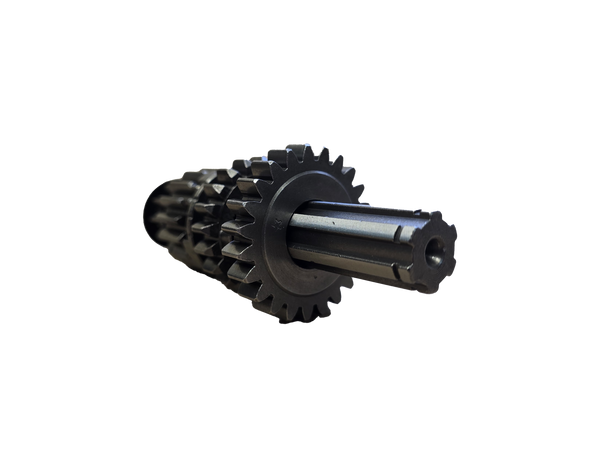

- Transmission gear / shaft assemblies

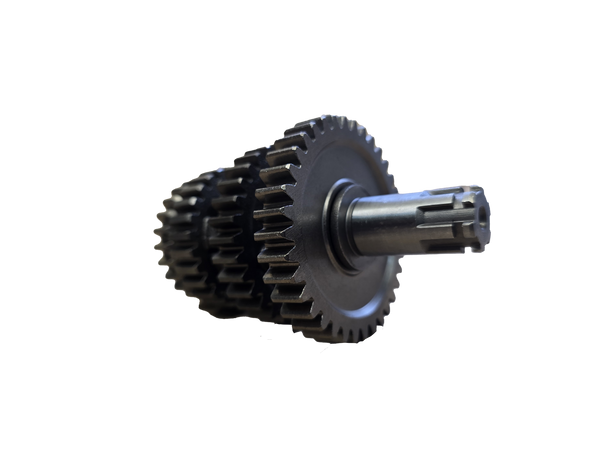

- Output / countershaft assembly
- Shift drum / selector barrel
- Selector components and small parts supplied as pictured
Honda Reference Information
Honda used several different 4-speed transmission ratios and shaft versions across SS50, CD50, CL50 and related horizontal-engine models, so there is no single Honda OE complete-gearbox number verified for this aftermarket set.
Useful original Honda component references for identification include:
- 23211-065-921 – transmission mainshaft used on later CD50 / CL50 applications
- 23221-065-920 – transmission countershaft used on later CD50 / CL50 applications
- 24301-065-020 – gear-shift drum used on later CL50 applications
- 23451-065-000 – early SS50 / CD50 third-gear reference
- 23461-065-000 – early SS50 / CD50 countershaft third-gear reference
- 23471-065-010 – early SS50 fourth/top-gear reference
- 23481-065-010 – early SS50 countershaft top-gear reference
These numbers describe components found in original Honda transmissions and are provided only to help identify transmission families. They should not be treated as direct OE numbers for the complete supplied aftermarket assembly.
Important Fitment Information
This is a 4-speed manual transmission set and is not suitable for every Honda 50 / 70 / 90 horizontal engine.
- Do not use for 5-speed SS50 / SS50Z transmissions.
- For SS50 models, use only where the bike has the compatible 4-speed gearbox and does not use the pedal-crank transmission arrangement.
- Honda changed gearbox ratios, shaft designs and shift arrangements by model, market and year.
- Compare the approximately 95 mm shift drum, 120 mm gear-set length and 117 mm output shaft with the transmission currently fitted.
- Compare the selector drum/forks, shaft ends, gear layout and crankcase bearing locations with the product photographs.
Condition
Brand New
Aftermarket replacement transmission components.
Delivery & Returns
- Free UK delivery with an estimated 2–3 working-day service
- 30-day returns, subject to the item being returned in its original condition
Installation
Transmission installation requires complete engine disassembly, correct shim/washer positioning and correct gear-selector setup. Installation should be carried out by a competent motorcycle engine technician and all gears should be checked for correct engagement before use.
