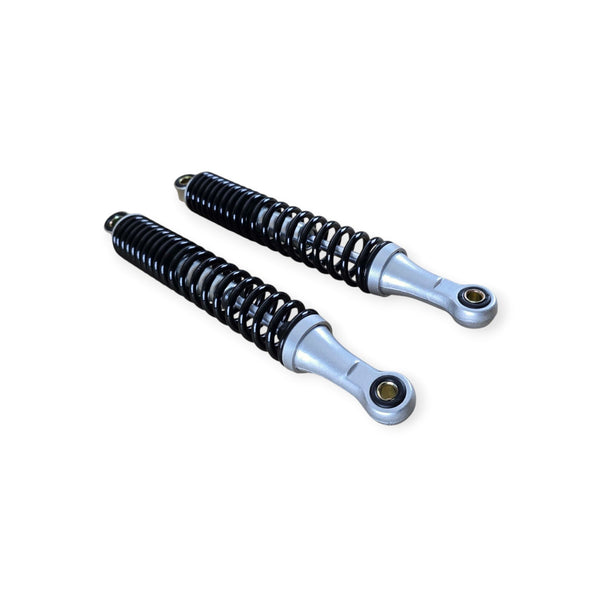

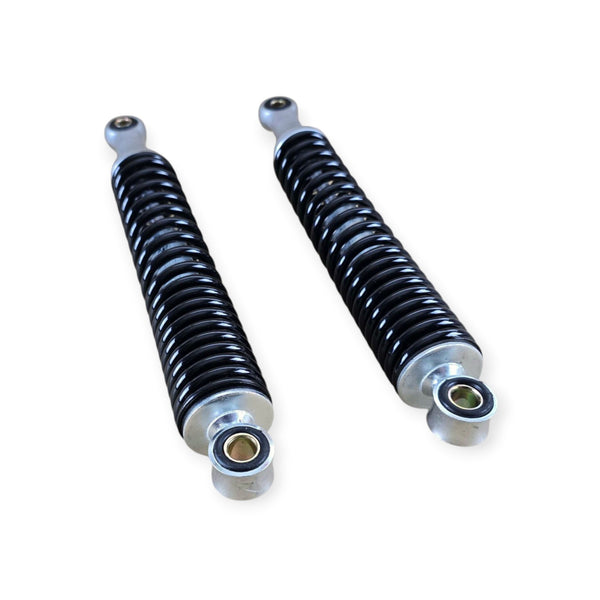

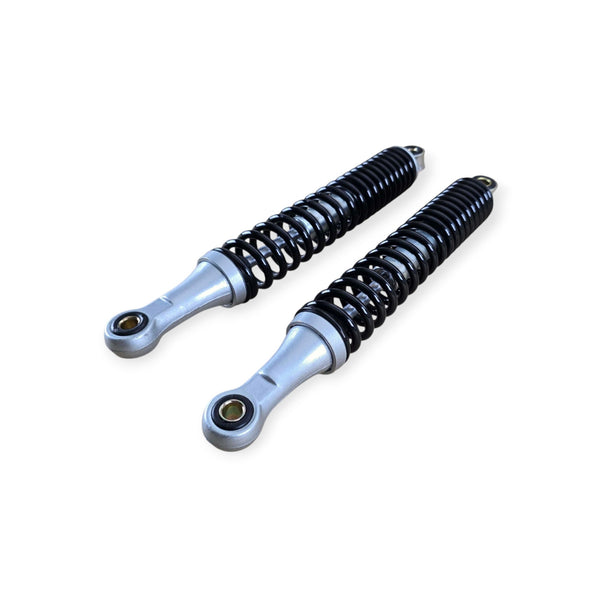

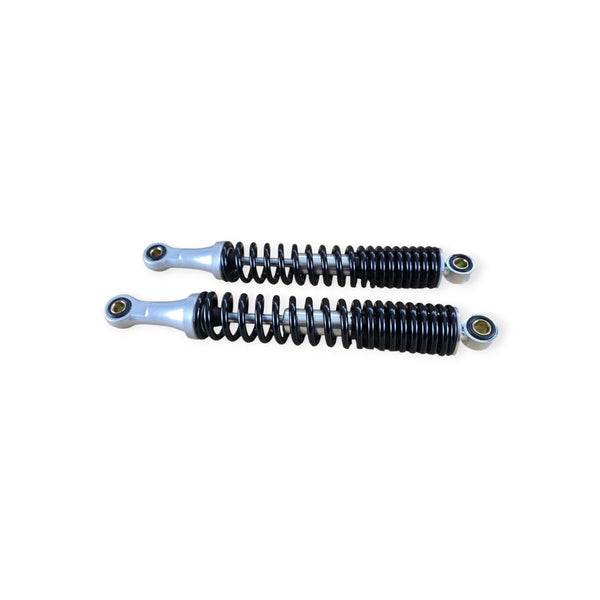

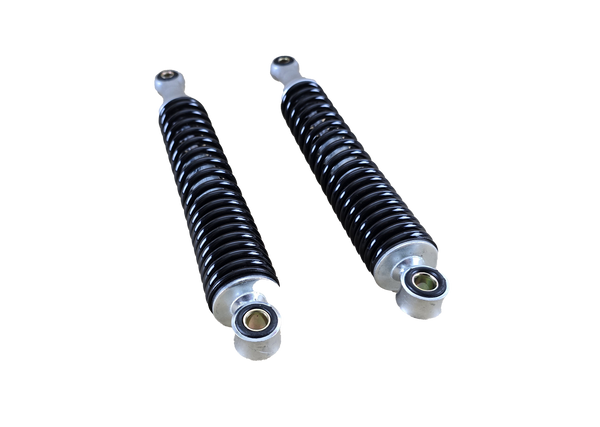

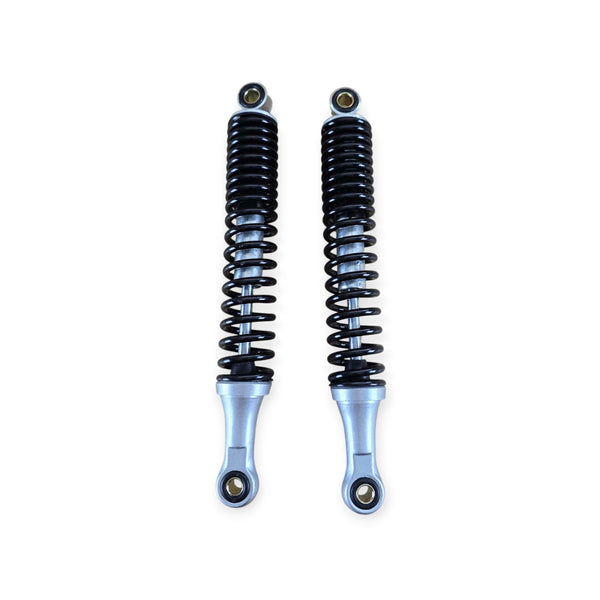

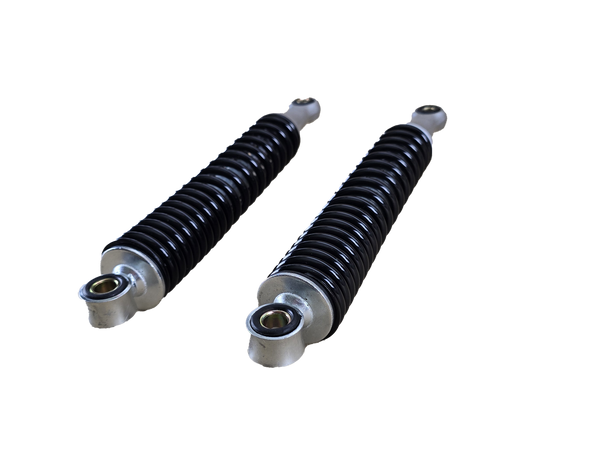

330mm Twin Rear Shock Absorbers – 10mm Top & Bottom Eyes
Pair of aftermarket eye-to-eye rear shock absorbers for motorcycles using twin rear suspension. The stock has now been physically confirmed as 330mm nominal length with 10mm mounting eyes at both the top and bottom.
What You Receive
- 2 x rear shock absorbers
Confirmed Specification
- Nominal eye-to-eye / centre-to-centre length: 330mm
- Top mounting-eye inside diameter: 10mm
- Bottom mounting-eye inside diameter: 10mm
- Twin-shock eye-to-eye / pin-to-pin mounting
- Black open-coil springs
- Silver/chrome-finish lower damper sections
- Rubber-bushed mounting eyes with metal sleeves
- Sold as a pair
- Aftermarket / unbranded
Compatibility
Use the measurements rather than make or engine size alone. Before ordering, confirm your original shocks are approximately 330mm centre-to-centre with 10mm mounting bolts/eyes at both ends. Also compare the mounting-eye widths, spring/body clearance, chain guard/exhaust clearance and suspension geometry.
Known Dimensional Cross-References
Honda ANF125 Innova replacement-shock references exist at 330mm with 10mm top and 10mm bottom mounting eyes. Other current 330mm 10/10 references exist for Honda Monkey 125 and several Honda underbone applications. Model-specific listings should still be checked for eye width and clearance before activation.
OE / Manufacturer Cross-Reference Information
- Honda ANF125 OE rear-shock references: 52400-KPH-971, 52400-KPH-972, 52400-KTM-D21
- Comparable aftermarket ANF125 reference: Motorcycle Products 020025
- Comparable Honda Monkey 125 Kitaco reference: 520-1300080P
These OE and manufacturer numbers identify compatible or comparable products. They are supplied for cross-reference only and do not mean this unbranded shock pair was manufactured by Honda, Kitaco or another named brand.
Not Claimed
No verified gas/nitrogen charge, damping adjustment, preload range, spring rate or load rating has been supplied for this stock, so those performance claims are intentionally omitted.
Delivery & Returns
Please refer to the current store delivery and returns policies for the latest terms.
