3-Jaw Internal Bearing Puller 14-38mm Pilot Bush Extractor Tool
Heavy-duty style 3-jaw internal bearing / pilot-bearing puller for removing compatible bearings and bushes from housings where the jaws can locate securely behind the inner race or bush.
Important: the 125mm measurement refers to the puller's crossbar length. It is not a 125mm bearing-capacity tool.
Product Specification
- Internal bearing working range: approximately 14–38mm
- Support / pulling span: approximately 50–95mm
- Crossbar length: approximately 125mm
- Central screw / rod length: approximately 175mm
- Puller arm length: approximately 86mm
- Jaw length: approximately 80mm
- Drive hex: approximately 14mm
- Overall size: approximately 200 x 135mm
- Steel construction with black protective finish

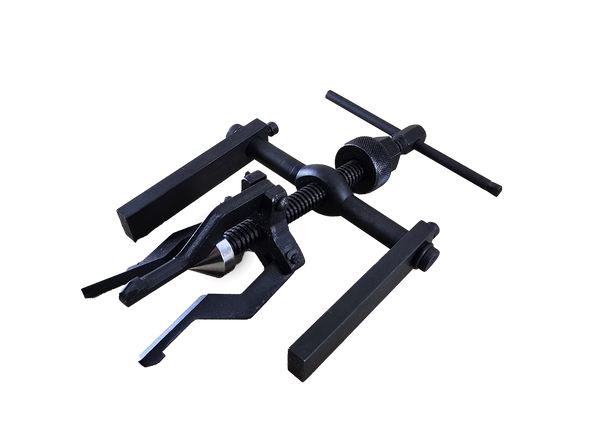

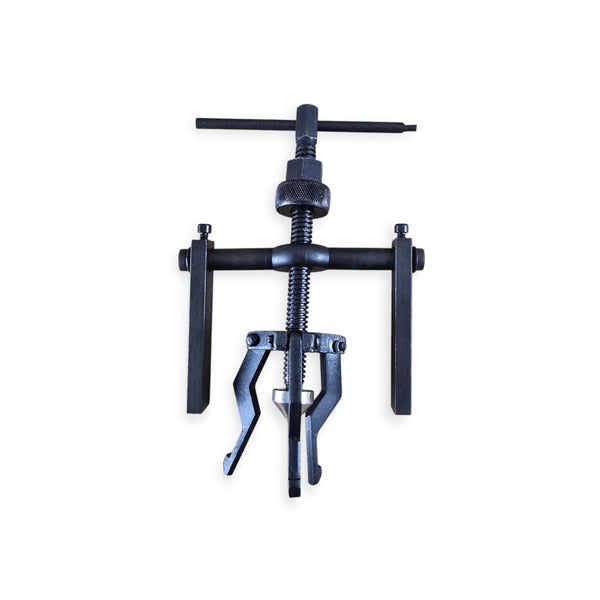

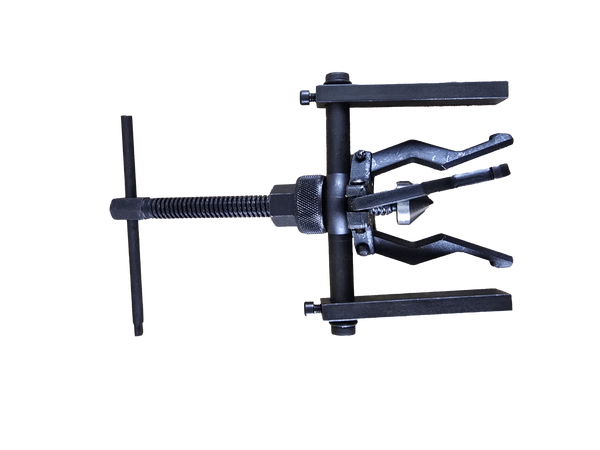

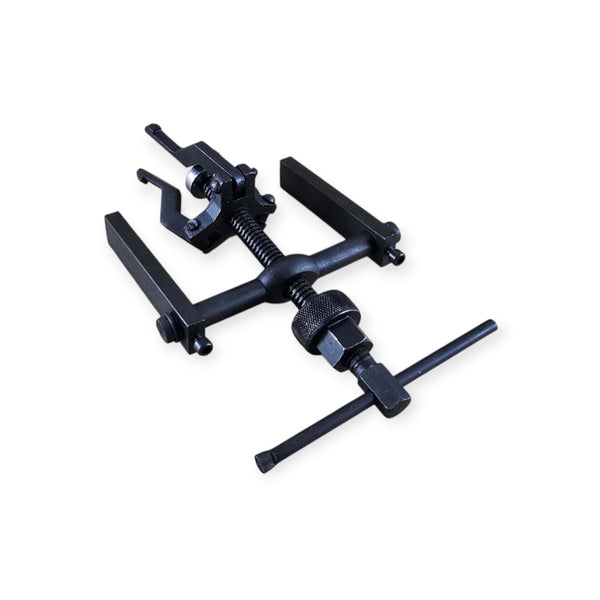

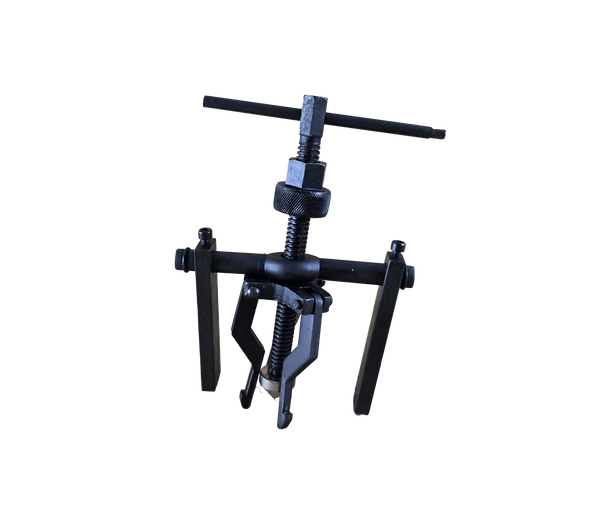

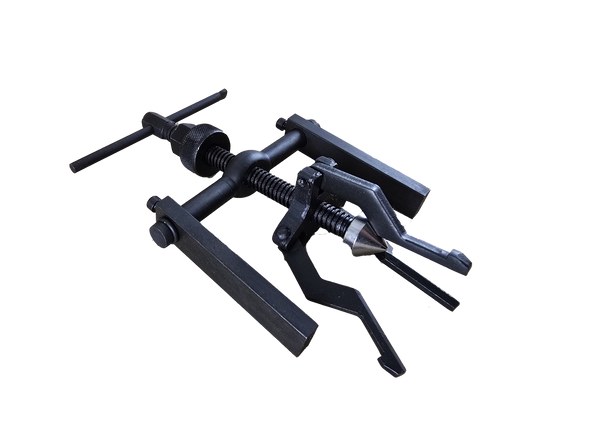

Components Identified From The Product Photos
- Central threaded forcing spindle
- T-handle / tommy-bar drive
- Adjustment / locking collar
- 125mm bridge crossbar
- Two outer support legs
- Three internal hooked puller jaws
- Central jaw-expanding / reaction mechanism
- Jaw and support-leg retaining fasteners
Supplied as one complete puller assembly as pictured. No slide hammer, bearing separator, collets, sockets, storage case or additional adapters are included.
Typical Applications
- Motorcycle and scooter wheel / hub bearings
- Automotive pilot and sleeve-type bearings
- Pump and generator bearings
- Bushes / bushings with sufficient internal lip for the jaws
- Small machinery and workshop bearing-removal jobs
Comparable Manufacturer References
- Sealey MS0621 — 3-jaw 12–38mm wheel-bearing puller
- Autojack PBP12-2 / AUT00121 — 3-jaw inner pilot-bearing puller
These are comparable branded tools of the same general type and working range. They are not the manufacturer MPN of this unbranded product.
Before Use
Measure the bearing bore and confirm the jaws can engage securely behind the inner race or bush. Make sure both support legs sit squarely on a strong, flat surface around the bearing. The tool must remain centred while load is applied.
Use Guidance
- Clean the bearing area and expose enough of the inner race for the three jaws to engage.
- Insert and spread the jaws evenly behind the bearing or bush.
- Position the two support legs squarely on the surrounding housing.
- Centre the forcing spindle and tighten progressively by hand tool.
- Stop if a jaw begins to slip, twist or load unevenly; reposition before continuing.
Do not use an impact gun. Do not exceed the tool's mechanical limits or use it where the jaws cannot obtain a positive grip. Wear eye protection and keep hands clear of the puller while it is under load.
